• Model NO.：SOV-RCS Series
• Structure：Piston Type
• Material：Steel
• Capacity：10-100 Ton
• Stroke：38-62 mm
• Closed Height：88-141mm
• Cylinder O.D：69-165 mm
• Working Pressure：700bar
• Weight：4.1-22.7 Kg
• Product Name：Spring Re-Back Single Acting Hydraulic Cylinder
• Warranty：1 Year
• OEM：Yes
• Inner Diameter：42.9-92.2 mm
• Transport Package：Standard Export Wooden Case
• Specification：CE
• Trademark：SOV
• Origin：China
• HS Code：8425421000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. SOV-RCS Series Structure Piston Type Material Steel Capacity 10-100 Ton Stroke 38-62 mm Closed Height 88-141mm Cylinder O.D 69-165 mm Working Pressure 700bar Weight 4.1-22.7 Kg Product Name Spring Re-Back Single Acting Hydraulic Cylinder Warranty 1 Year OEM Yes Inner Diameter 42.9-92.2 mm Transport Package Standard Export Wooden Case Specification CE Trademark SOV Origin China HS Code 8425421000 Production Capacity 500PCS/Month

Product Description

                                             Spring Re-back Single Acting Hydraulic Cylinder



Description:


1. Lightweight, low profile design for use in confined spaces
2. Baked enamel finish for increased corrosion resistance
3. Plunger wiper reduces contamination, extending cylinder life
4. CR-400 coupler and dust cap included on all models
5. Grooved plunger end with threaded holes for mounting tilt saddles
6. Integral handle on RCS-1002 for easy carrying
7. Plated steel plungers
8. Single-acting spring return

Parameter

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-RCS-101*	10 (101)	38	14,5	55	88	126	69	2,7

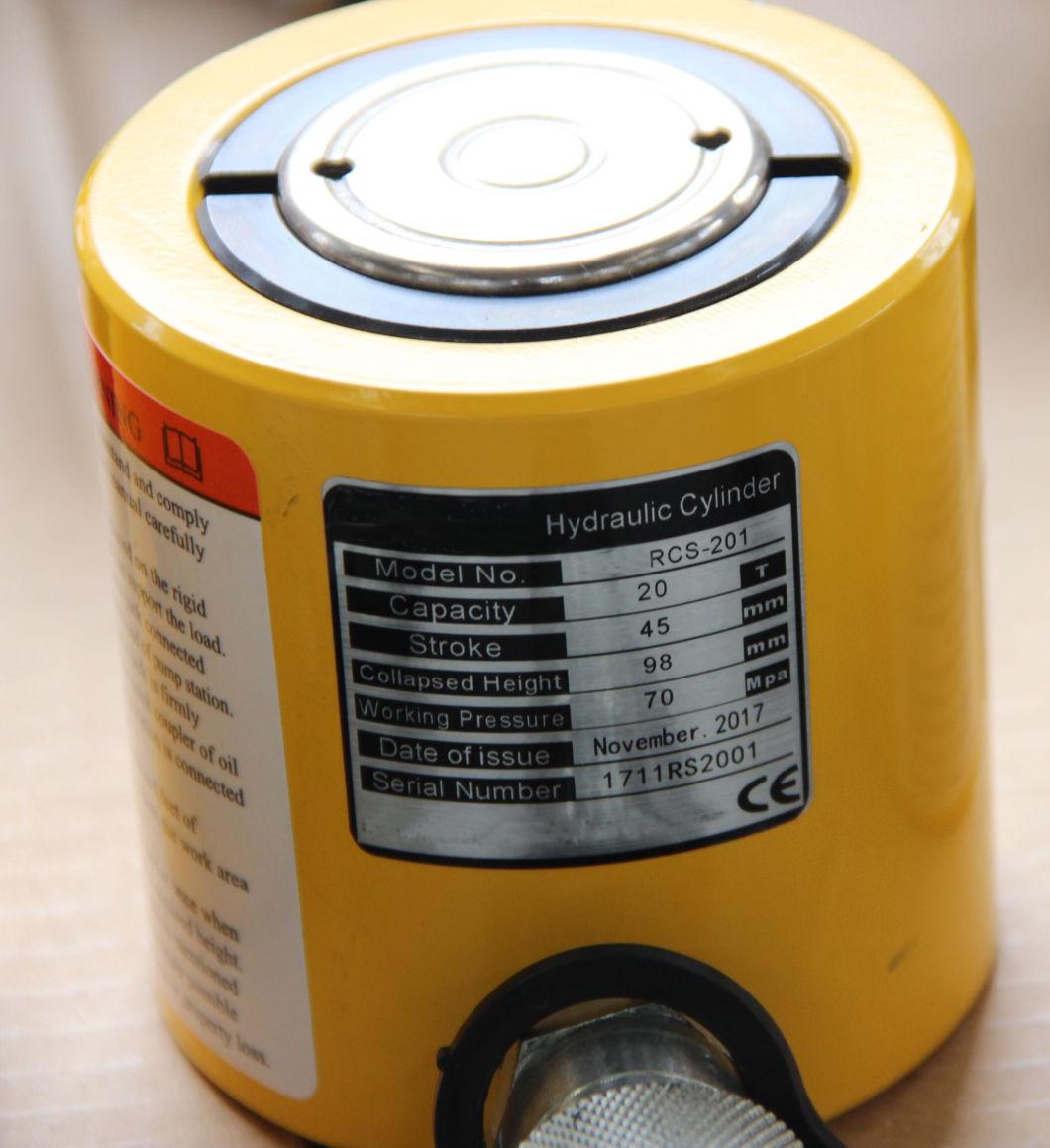

SOV-RCS-201*	20 (201)	45	28,7	129	98	143	92	5,0
SOV-RCS-302*	30 (295)	62	42,1	261	117	179	101	6,8
SOV-RCS-502*	45 (435)	60	62,1	373	122	182	124	10,0
SOV-RCS-1002*	90 (887)	57	126,7	722	141	198	165	20,7

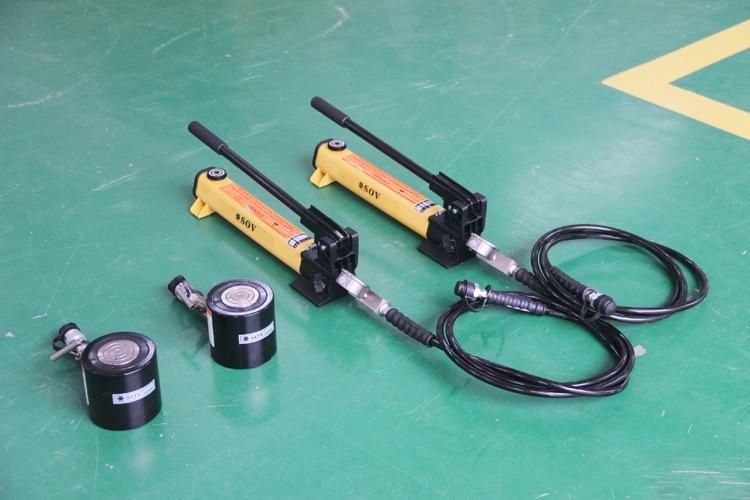

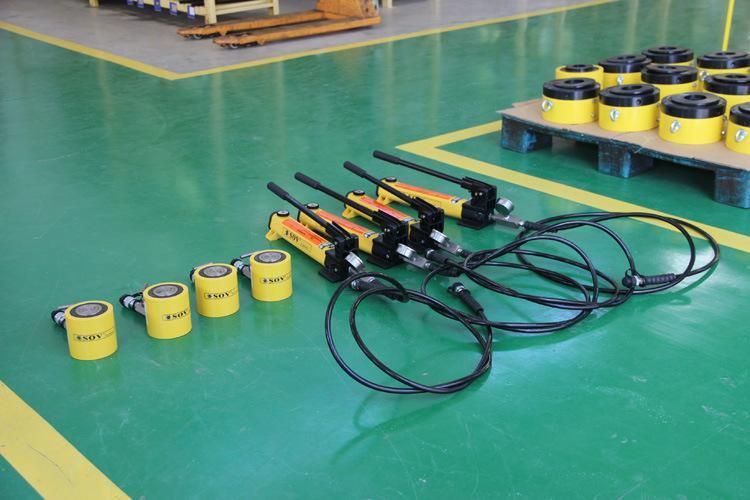

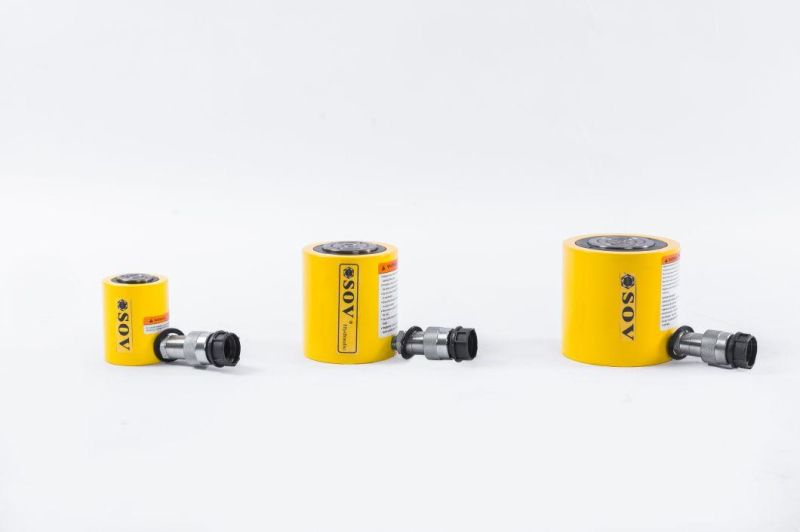

Photos

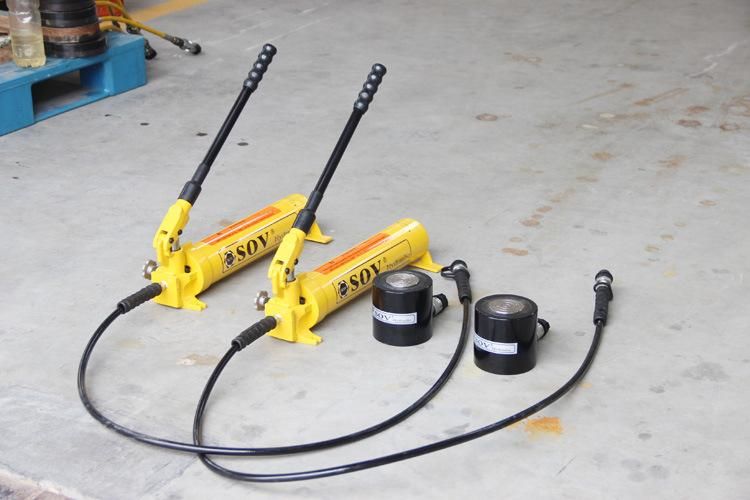

Booked Photos

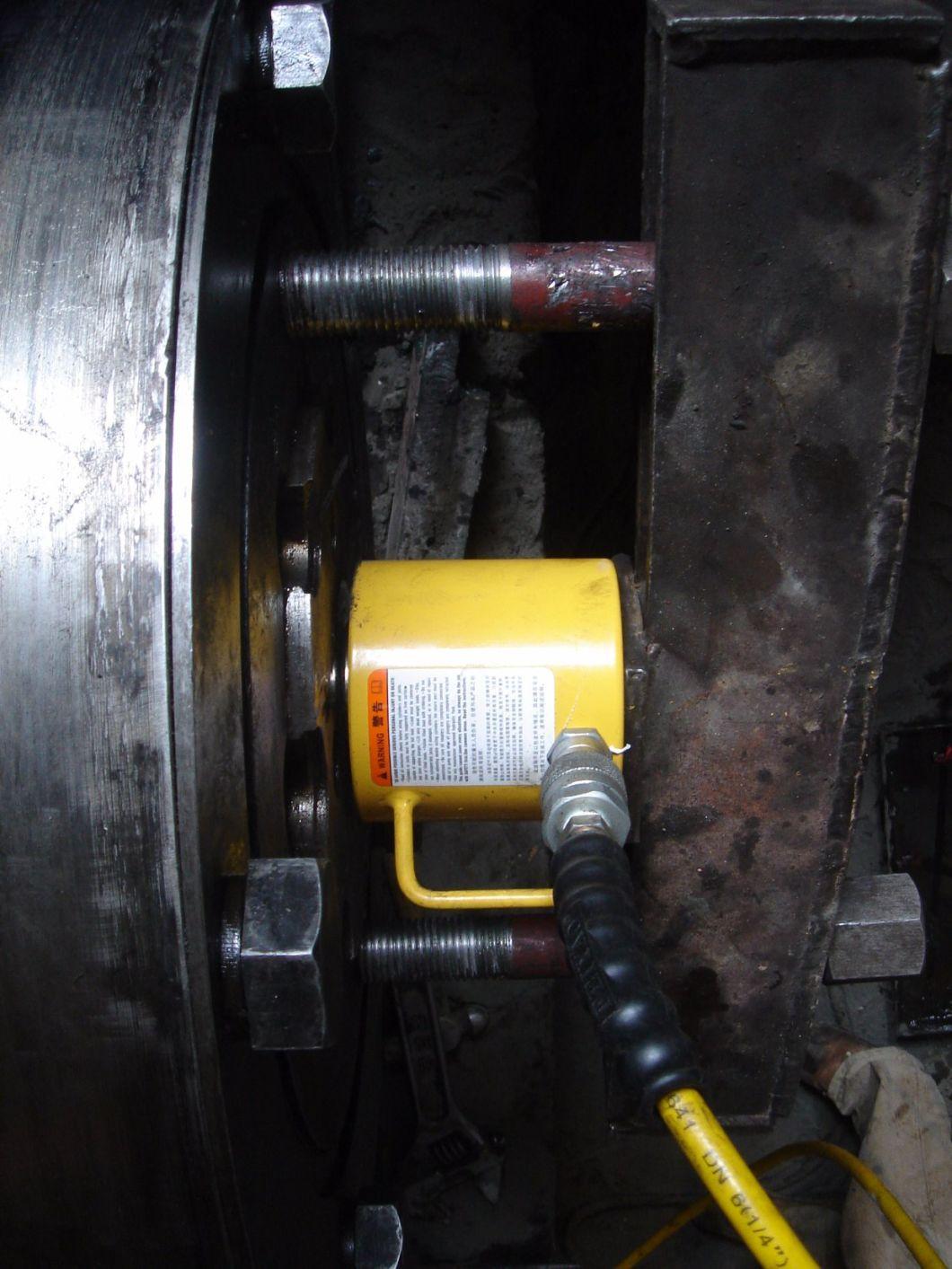

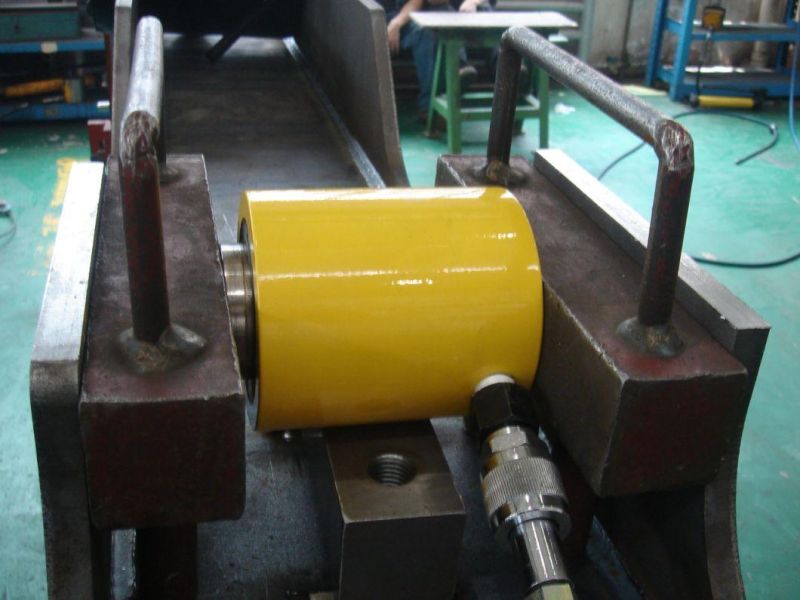

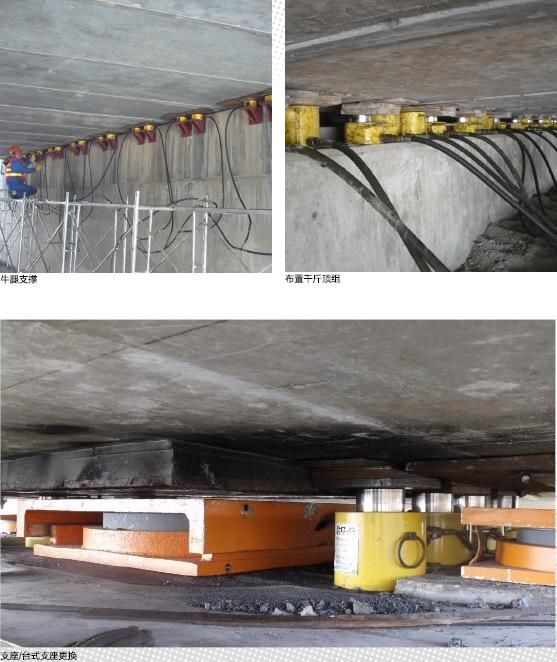

Applications






Recommend Products

Packing details
1. Out packing: standard export wooden case
2. Inner packing: with careful stretch film+cardboard

Shipping way
1. Small quantity: by international air express, within 3-7days arriving
2. Large quantity: by ocean cargo, arriving time depends on customers destination

Our service
1. 24hours online technical support (telephone and email)
2. 100% Satisfaction Guarantee
3. Engineers are available

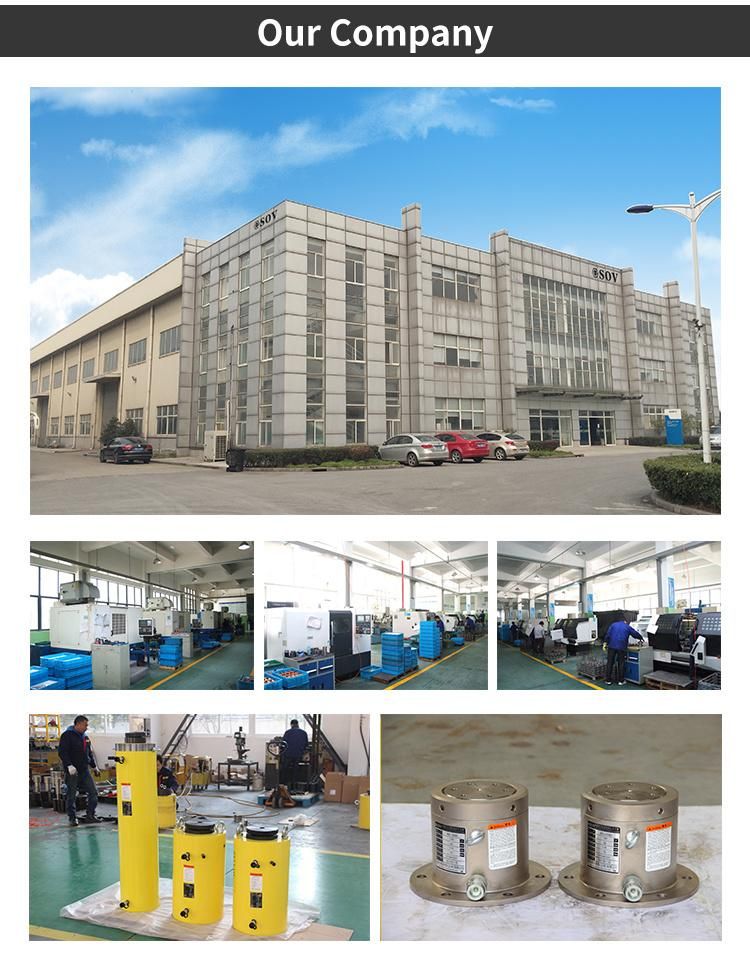

Our company





SOV Hydraulic Technology(shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 5- 2000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Why Choose Us
1. Various style for completely series hydraulic products for you to choose
2. High quality with competitive price
3. Sample order & small quantity order is ok
4. Provide free products information

Why You Need SOV?
1. Because you need quality hydraulic tools at economical prices.
2. SOV hydraulic technology factory are produced in modern facilities using advantage processing technology. All SOV products meet or exceed CE and ISO standards and tolerances.
3. Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.
4. Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
If you have a lifting problem that others can't solve call SOV, the hydraulic tools supplier you need.

Quality Control
Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure.

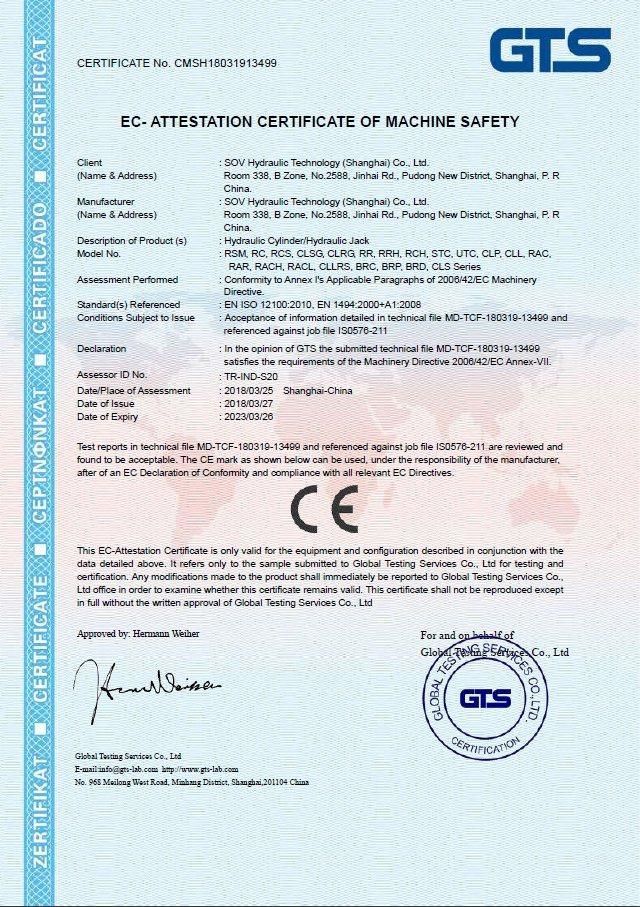

Certificate
