• Structure：Piston Type
• Material：Alloy Steel
• Product Name：Hydraulic Cylinder
• Transport Package：Wodden Case
• Origin：Jiangsu, China
• HS Code：8412210000
• Production Capacity：50000PCS,Year

Basic Info.

Structure Piston Type Material Alloy Steel Product Name Hydraulic Cylinder Transport Package Wodden Case Origin Jiangsu, China HS Code 8412210000 Production Capacity 50000PCS/Year

Product Description

Hydraulic Cylinder Technical Parameter
1.Double-Acting/ Single-acting
2.Superior Quality Chrome Plated & Polished Rod
3.Honed & Finished Steel Tube
4.Top SAE Ports Standard
5.Top Quality Seals
6.1 Year Warranty
7.Standard Color is BLACK.
8.Color: According to your requirements

Designed For	Single-acting,double-acting
Stage	1~5stage cylinder
Max inner tube	170mm,180mm,195mm,200mm,210mm,etc
Mounting distance	325mm/345mm/425mm or as cutstomers'requirements
Working Pressure	12Mpa-35Mpa
Stroke	100mm-2000mm
Tipping Weight	1-68Ton
Seal Type	Parker,NOK, BUSAK SHAMBAN or as customer's requirement
Piston Rod	Chrome or nickel plated,ground & polished piston rod
Tube	High tensile cold drawn tube, precision honed for extended seal lif

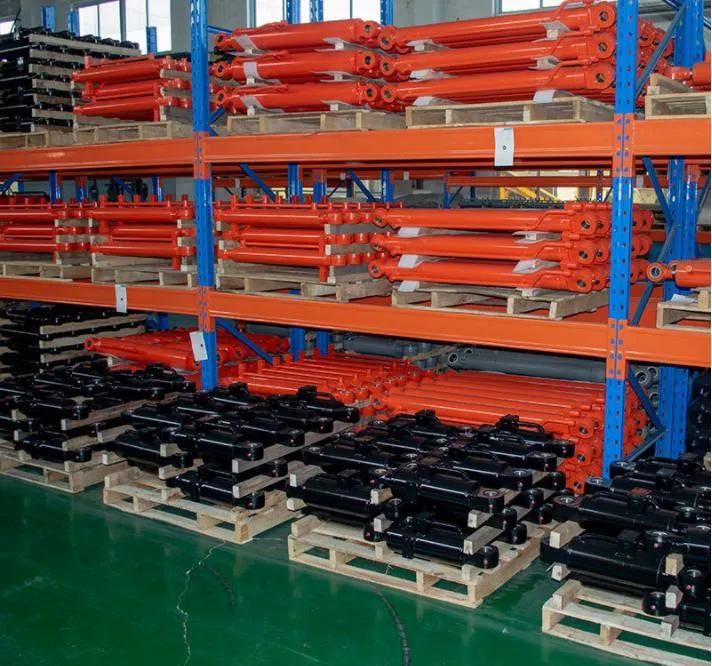

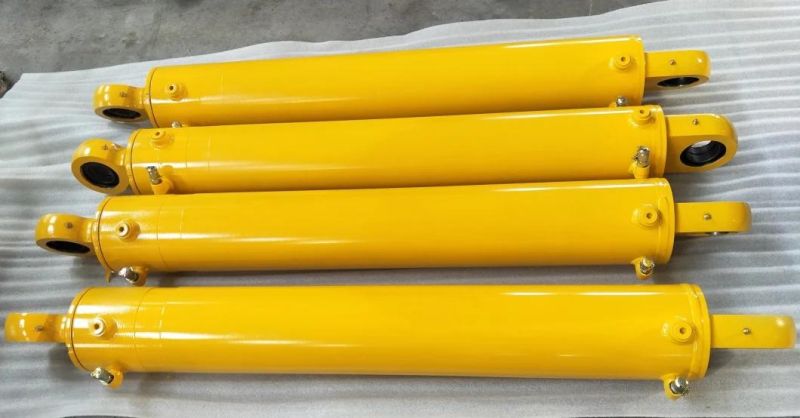

Product Show

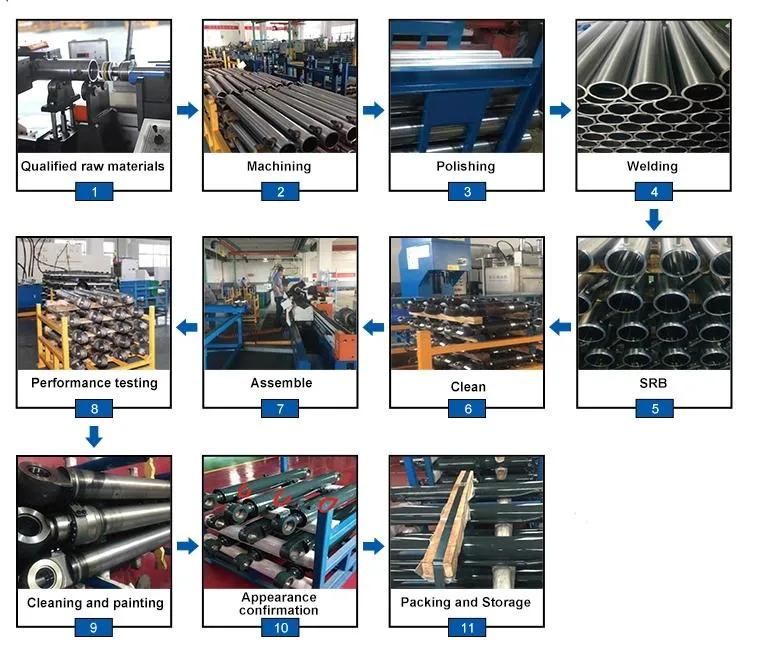

Production Process

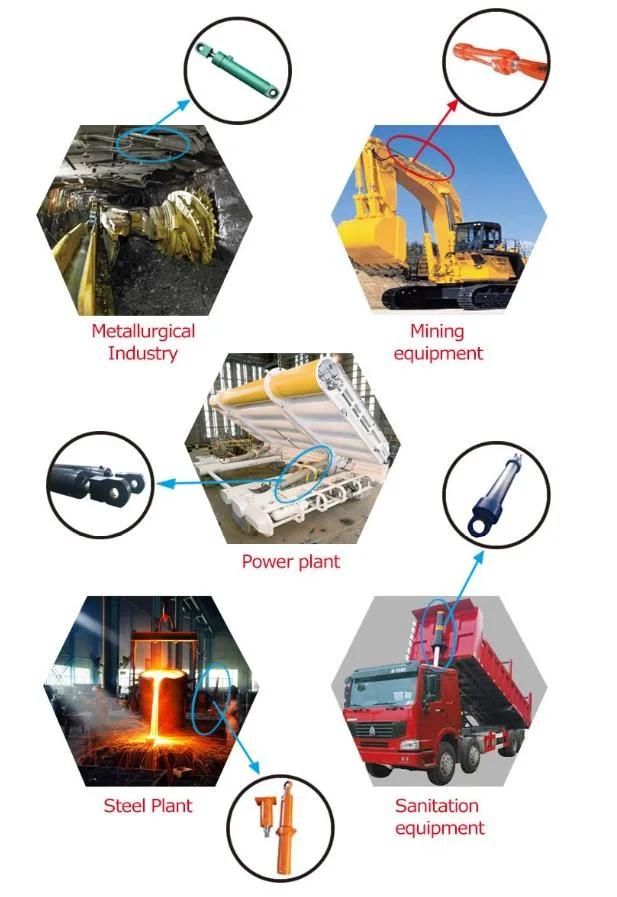

Application

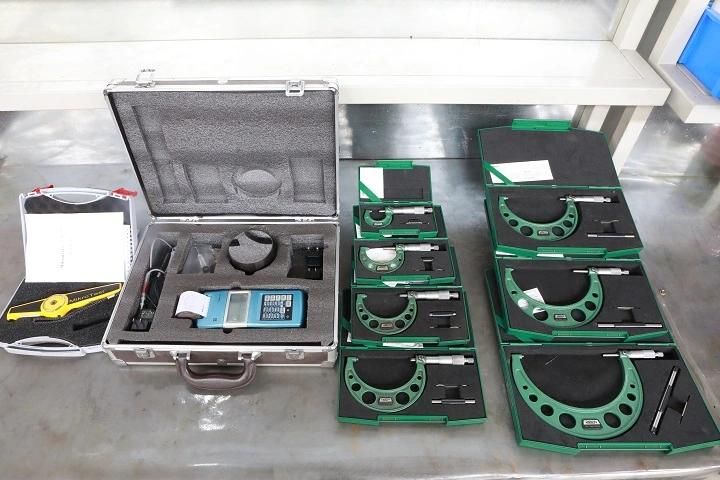

Inspection Process

Inspection Type	Inspection Standard
Raw Material Inspection	Before storage, QC takes the measurement of the raw materials.
Process Material Inspection	During the production, QCs conduct a random inspection. Before the hydraulic cylinder parts transferred to the next process, QCs takes inspection.

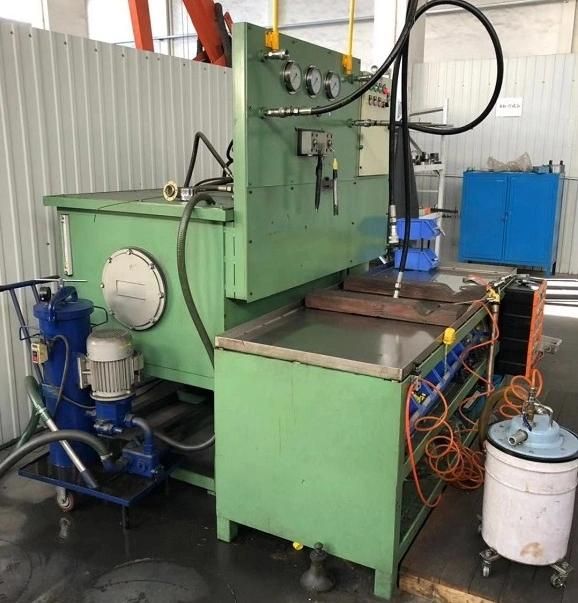

Final Function Testing	All the hydraulic cylinders take hydraulic function test
