Enerpac Same 5 Ton Single Acting Piston Hydraulic RAM Cylinder Jack

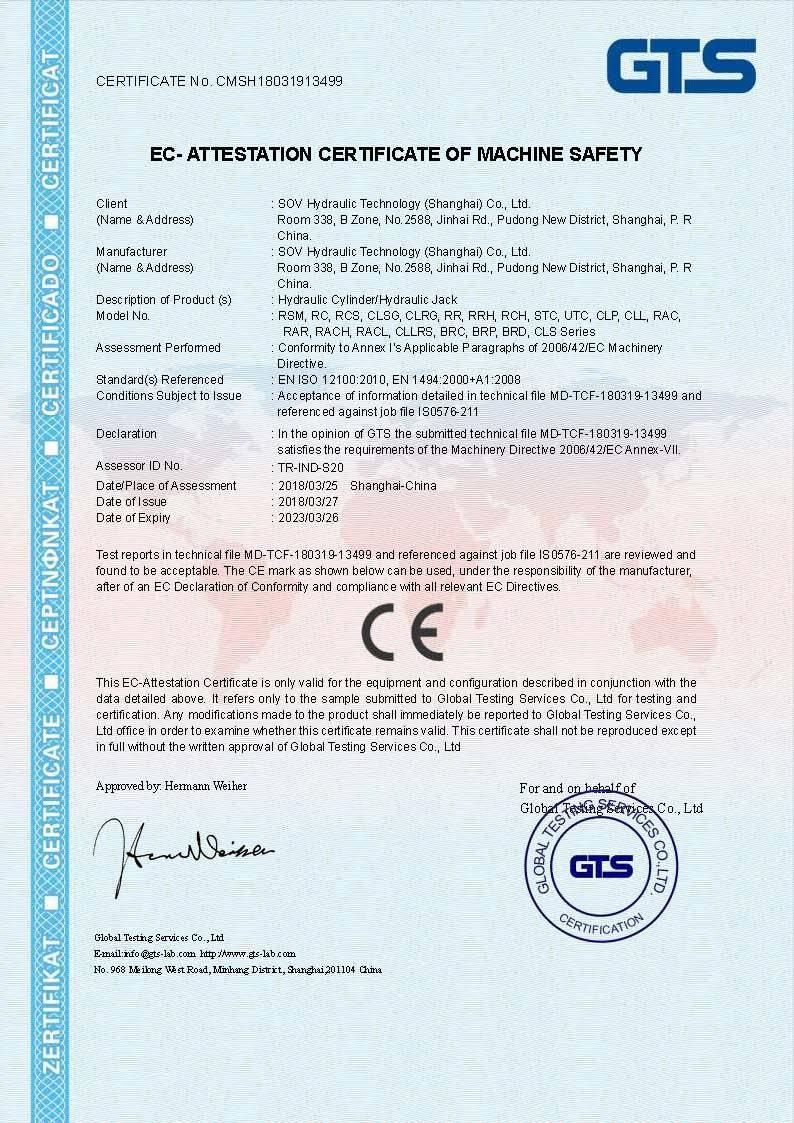

SOV Hydraulic Technology (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Acting Way：Single Acting
- Working Method：Straight Trip
- Adjusted Form：-
Base Info
- Model NO.：SOV-RSM Series
- Structure：Piston Type
- Material：Carbon Steel
- Name：5 Ton Single Acting Piston Hydraulic RAM Cylinder
- Cylinder Capacity：5-150ton
- Stroke：6-16mm
- Cylinder Effective Area：6, 5-198, 1cm2
- Collapsed Height(a)：32-100mm
- Oil Capacity：4-317cm3
- Extended Height(B)：38-116mm
- Outside Diameter(D)：58*41-215*190mm
- Weight：1-26.3kg
- OEM：Yes
- Transport Package：in a Wooden Case
- Specification：CE, ISO
- Trademark：SOV
- Origin：China
- HS Code：8425421000
- Production Capacity：5000sets Per Month
Description
Overview
Model
Number Cylinder
Capacity Stroke Cylinder
Effective Area Oil
Capacity Collapsed
Height(A) Extended
Height(B) Outside
Diameter(D) Weight ton (kN) mm cm2 cm3 mm mm mm kg SOV-RSM-501) 5 (45) 6 6,5 4 32 38 58 x 41 1 SOV-RSM-100 10 (101) 12 14,5 18 43 54 82 x 55 1,4 SOV-RSM-200 20 (201) 11 28,7 32 51 62 101 x 76 3,1 SOV-RSM-300 30 (295) 13 42,1 55 58 71 117 x 95 4,5 SOV-RSM-500 45 (435) 16 62,1 99 66 82 140 x 114 6,8 SOV-RSM-750 75 (718) 16 102,6 164 79 95 165 x 139 11,3 SOV-RSM-1000 90 (887) 16 126,7 203 85 101 178 x 153 14,5 SOV-RSM-1500 150 (1368) 16 198,1 317 100 116 215 x 190 26,3
*Also available as cylinder-pump sets.
Company Profile
Company information
SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has the largest hydraulic tools factory in China. Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to create our own brand SOV with products and factory certified by CE and ISO 9001. SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.
Number
Capacity
Effective Area
Capacity
Height(A)
Height(B)
Diameter(D)
*Also available as cylinder-pump sets.
