Hydraulic Parts

Hydraulic Motor Gerotor Motor Paker (TE. TF. TG) White (RE) Eaton Char-Lynn (H. S. T series) OEM Replacement (OMM/OMP/OMR/OMS/OMT/2K/6K)

Wuxi Hyphen Technology Co., Ltd.
  • Certification:CE, ISO9001
  • Power Rating:500W
  • Speed:Low Speed
  • Type:Hydraulic Motor
  • Minium Displacement:50ml,Rev
  • Max Displacement:980ml,Rev

Base Info

  • Model NO.:101-1858-006
  • Max Weight:35kgs
  • Minium Wight:7kgs
  • Hydraulic Valve:Proportional Control Valve
  • Auxiliary Components:Seal
  • Hydraulic Fluid:Mineral Oil
  • Hydraulic Control Unit:Check Valve
  • Hydraulic Motor:Gear-Type Hydraulic Motor
  • Hydraulic Actuator:Plunger Hydraulic Cylinder
  • Transport Package:in Plywood Case
  • Specification:Bm1-50-400
  • Trademark:Hyphen
  • Origin:China
  • HS Code:8412291000
  • Production Capacity:50000PCS,Year

Description

Basic Info.

Model NO. 101-1858-006 Max Weight 35kgs Minium Wight 7kgs Hydraulic Valve Proportional Control Valve Auxiliary Components Seal Hydraulic Fluid Mineral Oil Hydraulic Control Unit Check Valve Hydraulic Motor Gear-Type Hydraulic Motor Hydraulic Actuator Plunger Hydraulic Cylinder Transport Package in Plywood Case Specification Bm1-50-400 Trademark Hyphen Origin China HS Code 8412291000 Production Capacity 50000PCS/Year

Product Description

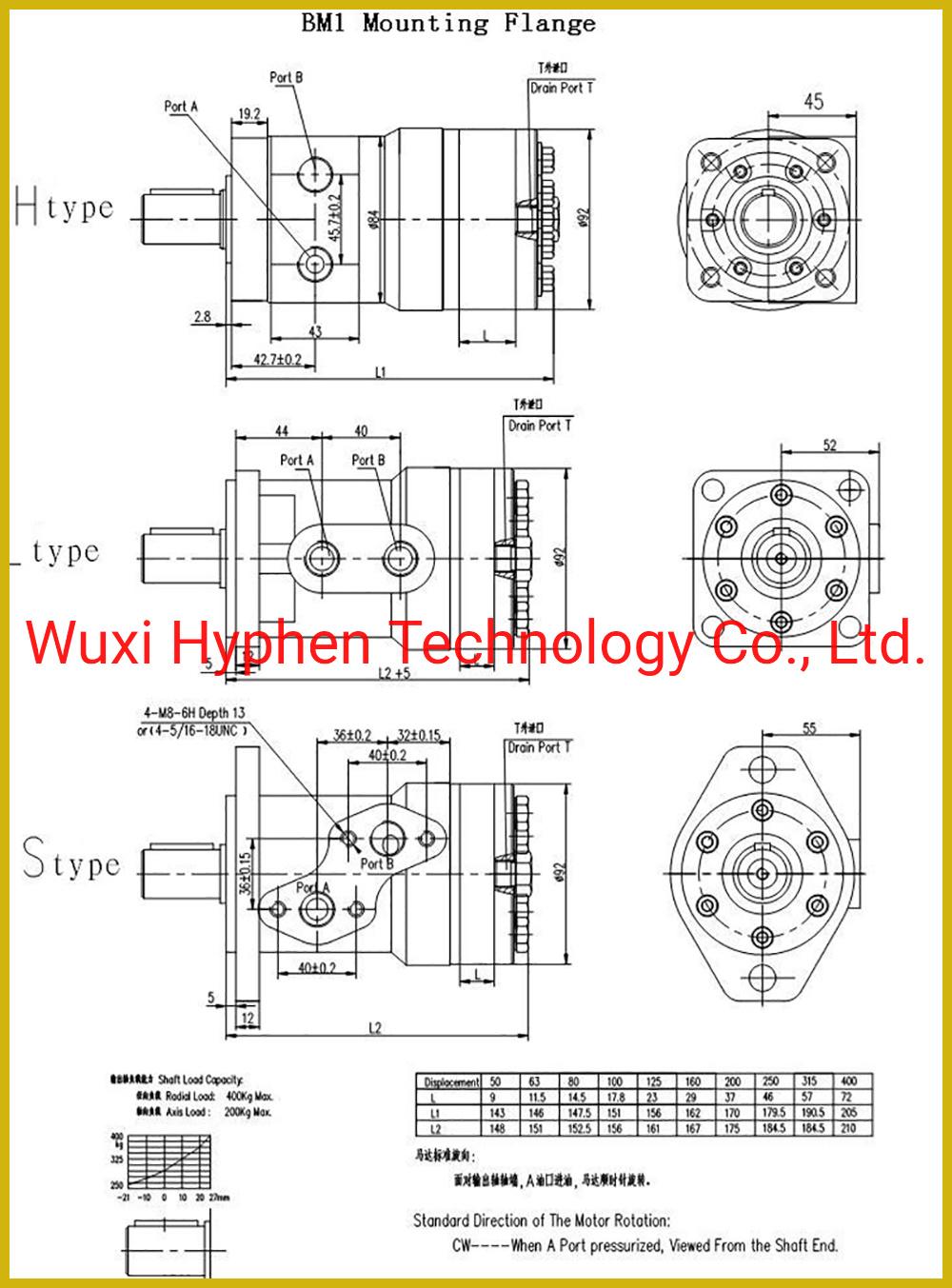

 BM1 series motor is a small volume, spool valve economical  type motor.
Characteristic features:
  • Compact design of spool and gear set, which provide small volume, high power and low weight.
  • Credible design for shaft seal , which can bear high pressure and be used in parallel or in series.
  • Direction of shaft rotation and speed can be controlled easily and smoothly.
Best combination of efficiency and economy in medium loading ,it can replace with  OMP,Parker TE/TG/TH ,Eaton Char-Lynn H/T/S series .
BM2 series motor is a medium, spool valve type motor which can bear higher pressure than BM1.Characteristic features:
  • It adapts the gerotor design. Has higher efficiency than BM1 motor.
  • Credible design for shaft seal , which can bear high pressure and be used in parallel or in series.
  • Direction of shaft speed can be controlled easily and smoothly.
  • Best efficiency and economy in medium load applications.
BM2 motor can replace with  OMR series ,White RE series(505/506 etc),Parker TE/TF series ,Eaton Char-Lynn H/S/T Series
BM5 is a large volume Disc.valve ,high pressure motor with ralial ball-bearings design, and can bear greater load.it can replace with  OMS series and Eaton Char-Lynn 2K/2000 series ,like the part number following 104-1028-006,105-1078-006,106-1008-006.
Characteristic features:
  • Advanced design in disc distribution flow, which can provide better performance at low speed.
  • The valve can automatically compensate for the wear, so the volumetric efficiency is high .
  • Double taper roller bearings permit high radial loads. The motors can be used on heavier vehicles in traction drive applications.

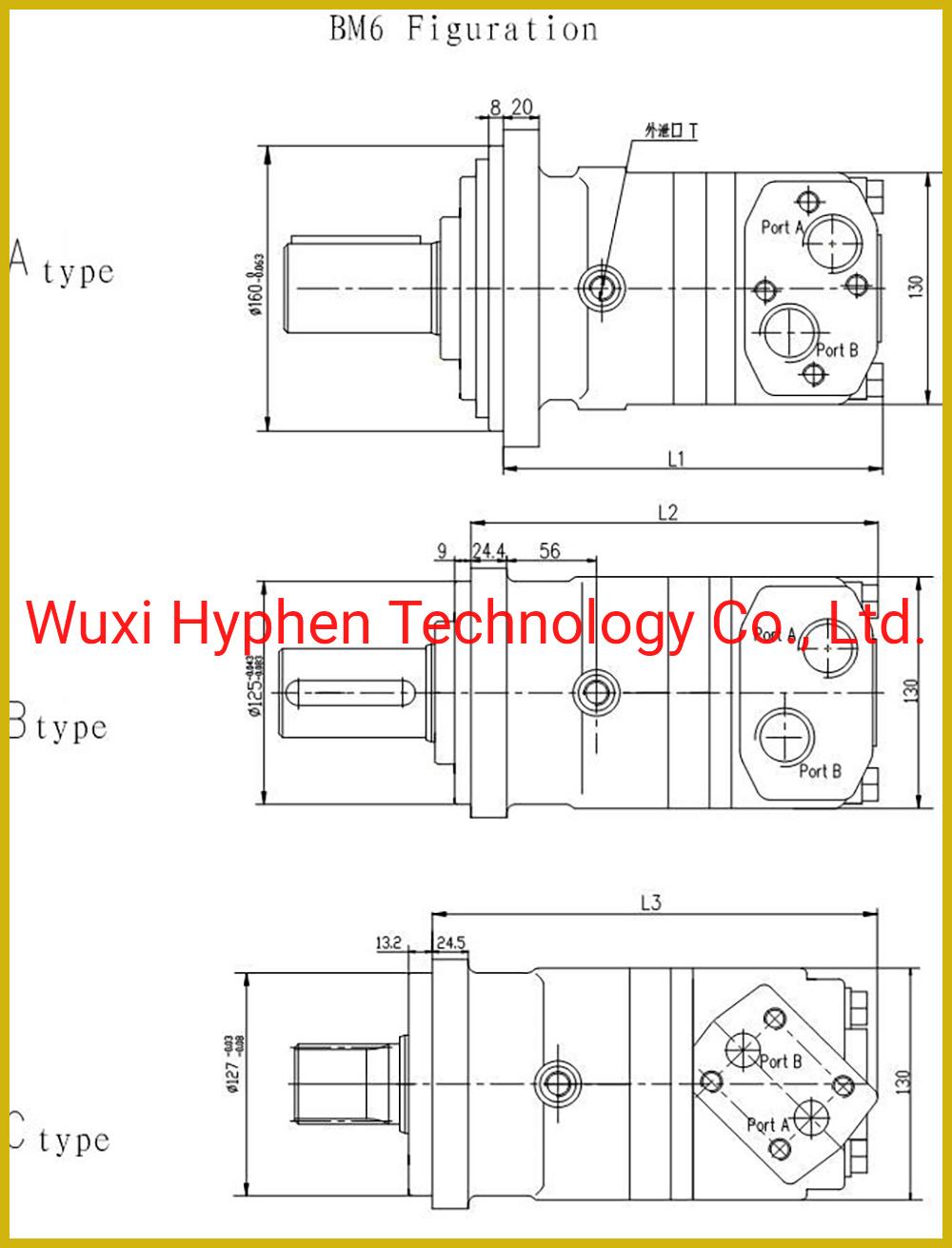

BM6 is a large volume,discvalve ,high pressure motor, with ralial ball-bearings design, and can bear greater load,and has higher torque than BM5.
Characteristic features
:
  • The motor can be used in high pressure, so it's max. torqueis higher than BM5 motor.
  • Advanced design in disc distribution flow, which can provide improved performance at low speed.
  • The valve can automatically compensate for the wear, so the volumetric efficiency is high .
Our BM6 series can replace with Eaton Char-Lynn 6K/6000 Series ,OMT etc .Example the model number :112-1088-006 for standard one ,113-1086-006 for  wheel motor ,114-1048-006 for Bearingless motor
