• Model NO.：2FRM6
• Trademark：Power or OEM
• Origin：China
• HS Code：8481201000
• Production Capacity：1000PCS,M

Basic Info.

Model NO. 2FRM6 Trademark Power or OEM Origin China HS Code 8481201000 Production Capacity 1000PCS/M

Product Description

1. Product Description
Flow control valve, type 2FRM6 and rectifier plate, type Z4S6Flow control valve of type 2FRM is two-way flow control valve, used for maintaining a constant flow and is independent of pressure and temperature. It consists of housing(1), knob rotary(2), orifice(3), pressure compensator(4), optional check valve(9).
Flow control valve 2FRM6B-L3X/~M
Flow from A to B is throttled at throttle channel (5). Throttle cross-section is varied by turning the knob rotary (2). To avoid effects of pressure at port B on constant flow, a compensator (4) is fitted. Spring (6) separately compress the compensator (4) and orifice (3) tightly.
Spring (6) compresses the compensator (4) tightly to maintain it open when no fluid flows through the valve. Once the fluid flows across the valve, the pressure in port A applies a force to pressure compensator (4) via orifice (7). The pressure compensator (4) moves into the compensating position until the forces is balanced. If the pressure in port A rises, the compensator (4) moves to its closing direction until force is balanced again. Due to the compensator (4) continuous action, a constant flow is obtained.
2FRM6A-L3X/~R
The function of this valve is basically the same as that of valve type 2FRM6B-L3X/~R. However, pressure compensator (4) of this type of valve is connected with port P (11) so that pressure compensator (4) can be closed by external pressure. Any pressure in port P via orifice (10) can make the compensator (4) closed against the force of compression spring (6). When the directional valve (12) acts, fluid flows from P to B, control is achieved as type 2FRM6B.
This flow control valve with external pressure compensator which can be closed only works as controlling the inlet flow.

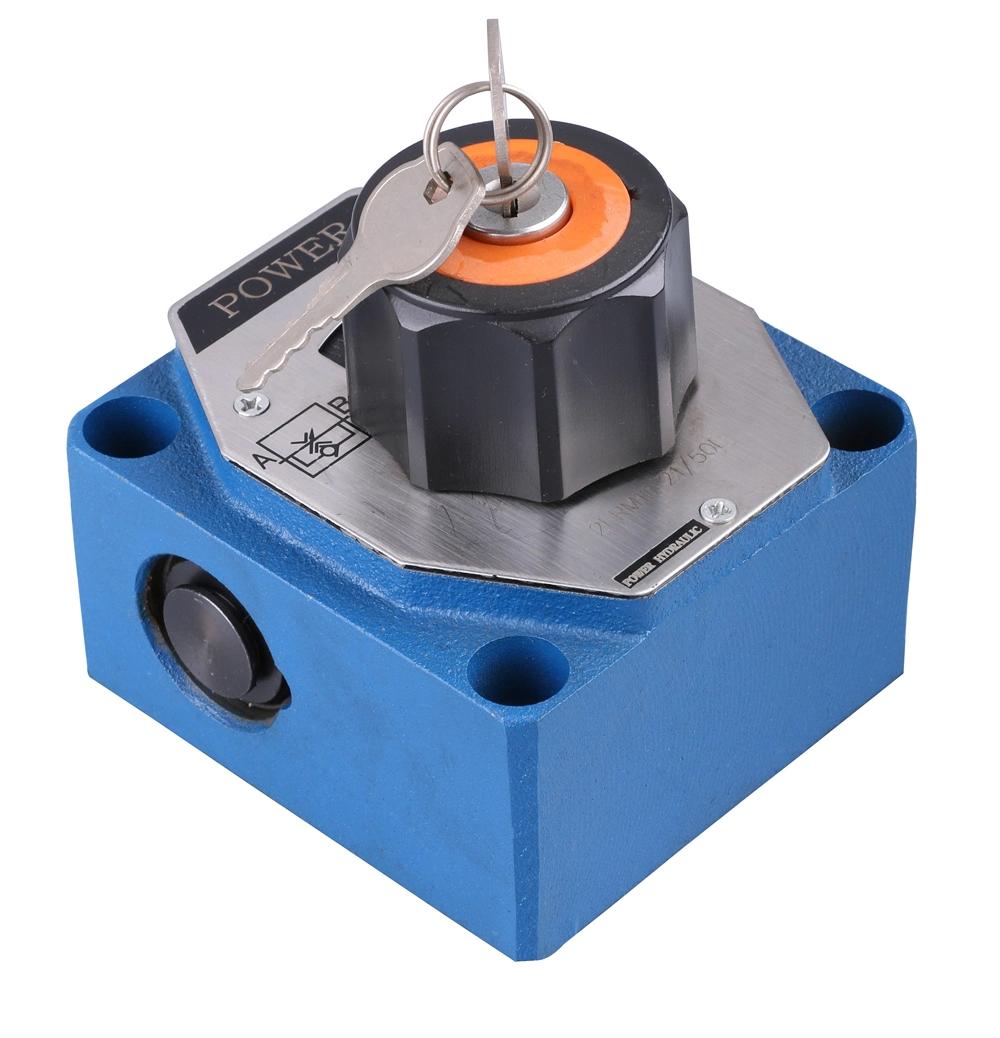

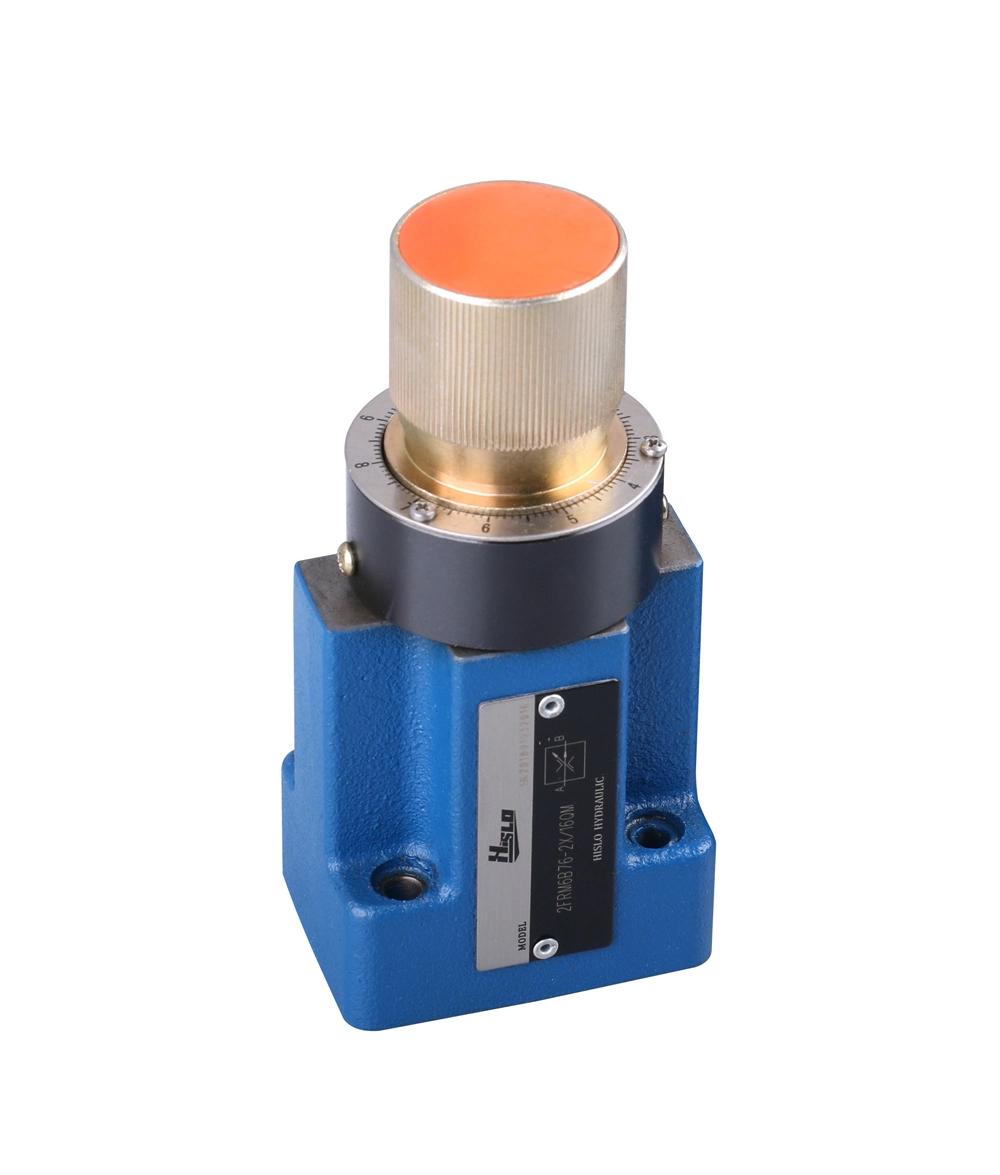

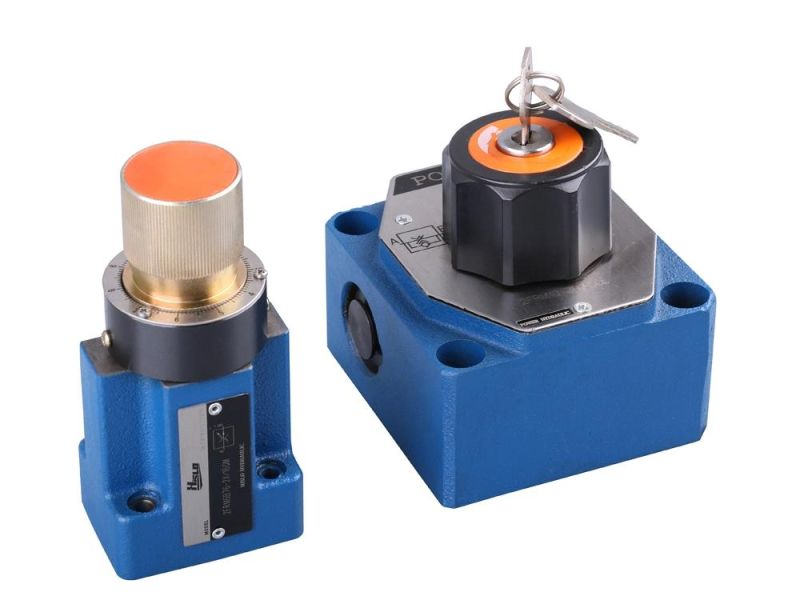

2. Product Photos

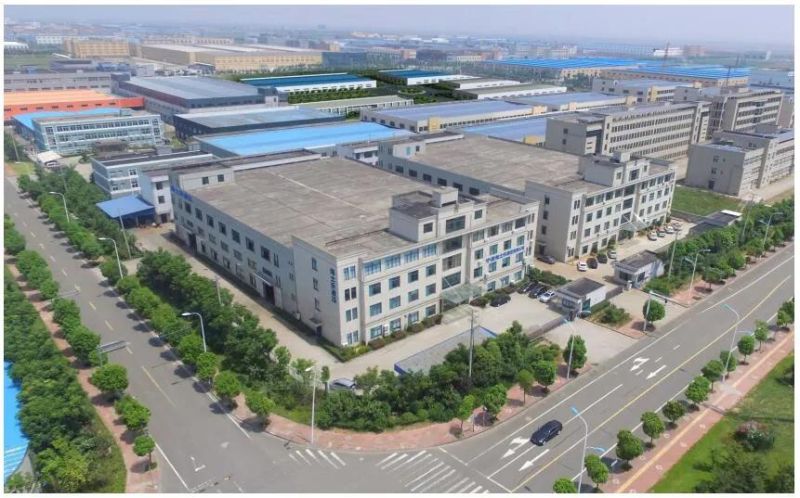

3. Company Profile

      NNINGBO POWER HYDRAULIC MOTOR CO.,LTD is a wel-trusted manufacturer in hydraulic industy.
      The company have achieved IS09001:2015 quality system, relying on strong technology development and production capacity,our annual output 600 thousand pieces. We produce all kinds of hydraulic valve, mainly include Rexroth and Yuken series of hydraulic valve products. Our products are widely used in mining, engineering, construction, plastics, chemicals, machine tools and so on. Our goal is to continue to deliver cost-effective products and more improved electro-hydraulic technology solutions.
     We also aim to help our customer to attain competitive advantage. It is our business to create more solutions, not just to satisfy the needs of our customers but also to help them progress in the industry.


4. Certificates

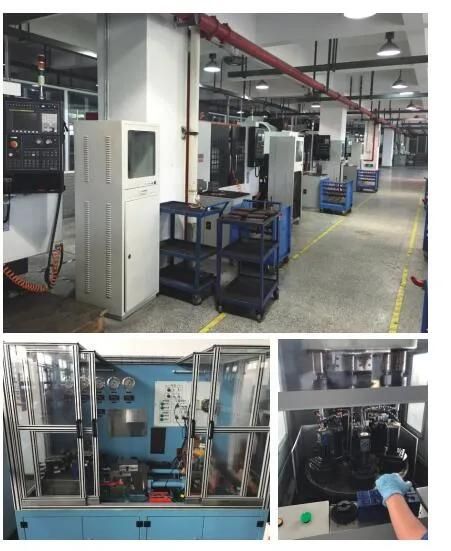

5. Factory

6. FAQ
Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock, or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
