Hydraulic One-Piece Non-Skive Orfs Fitting

Ningbo Insight Supply Chain Management Co., Ltd.
  • Pressure：High Pressure
  • Work Temperature：Normal Temperature
  • Terminal Thread：External and Internal
  • Skive Type：Non-Skive
  • Packing：Carton Box on Pallet
  • Standard：SAE J516

Base Info

  • HS Code：7307990000

Description

Basic Info.

HS Code 7307990000

Product Description

Our one piece non-skive ORFS hydraulic fittings are fully CNC machined with top quality hot forging raw materials.

Paker 43 series and Paker 71, 73 series fittings can be replace by our one-piece fittings.

Our Cr.3 zinc plating is superb on rust resistance performance. The salt spray test result shows white rust less than 5% in 216 hours and no red rust in 400 hours.

We have wild range of terminals to suit hydraulic hose 1SN, 2SN, 1SC , 2SC 4SP, 4SH, R12, R13 and R15.

Stainless steel material is availalbe.

Customized design is also available on request.

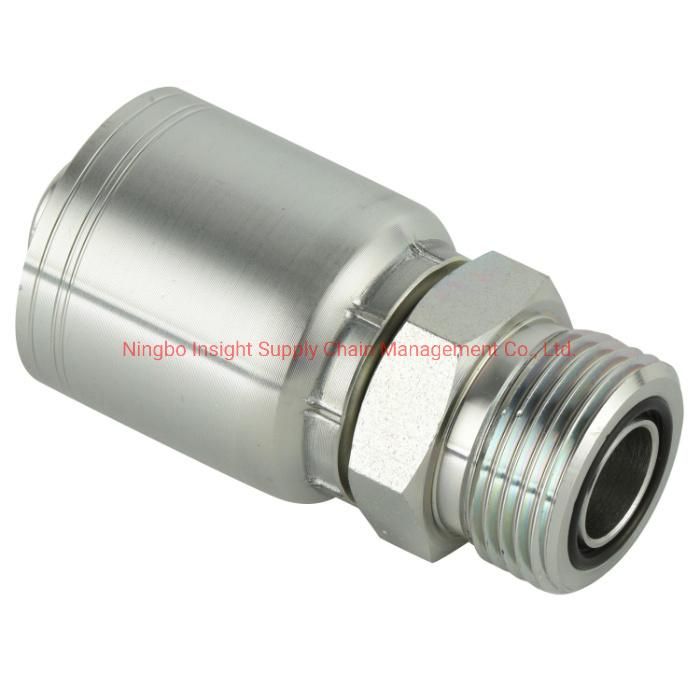

Hydraulic One-Piece Non-Skive Orfs Fitting
Hydraulic One-Piece Non-Skive Orfs FittingHydraulic One-Piece Non-Skive Orfs FittingHydraulic One-Piece Non-Skive Orfs FittingHydraulic One-Piece Non-Skive Orfs FittingHydraulic One-Piece Non-Skive Orfs Fitting
