Lsq-S2-Ss Close Type Hydraulic Quick Coupling (STAINLESS STEEL 316)

Zhejiang Songqiao Pneumatic & Hydraulic Co., Ltd.
  • From 1/8′ to 1′：All Threads Are Available
  • Interchangeability：ISO 7241-1 Series "B", Poppet Valve
  • Mechanical Connection：Locking Balls
  • Working Pressures：to 2000 Psi
  • Transport Package：Carton
  • Origin：Zhejiang China

Base Info

  • Model NO.：LSQ-S2-SS ( ISO B SS316)
  • HS Code：7307990000
  • Production Capacity：100000 Set,Month

Description

Stander seal material                                                                   VITON
LSQ-S2-SS Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. LSQ-S2-SS series conforms to the standard of ISO 7241-B.
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series

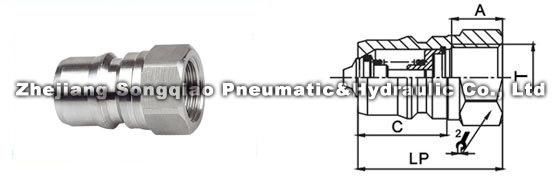

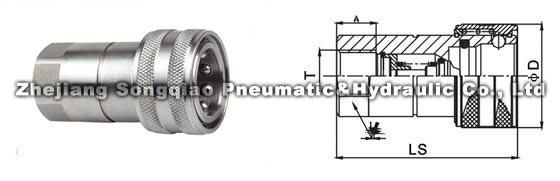

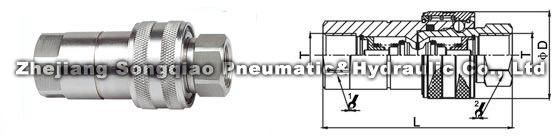

Lsq-S2-Ss Close Type Hydraulic Quick Coupling (STAINLESS STEEL 316)ISOPARTNO.LS¢DHEX1AT5LSQ-S2-SS-01SF50241710G1/8 NPT1/86.3LSQ-S2-SS-02SF5828.51913G1/4 NPT1/410LSQ-S2-SS-03SF65352413G3/8 NPT3/812.5LSQ-S2-SS-04SF73.4423017G1/2 NPT1/220LSQ-S2-SS-06SF92543622G3/4 NPT3/425LSQ-S2-SS-08SF103654123G1 NPT1Lsq-S2-Ss Close Type Hydraulic Quick Coupling (STAINLESS STEEL 316)ISOPARTNO.LPdCHEX2AT5LSQ-S2-SS-01PF3110.8191410G1/8 NPT1/86.3LSQ-S2-SS-02PF3614.222.81913G1/4 NPT1/410LSQ-S2-SS-03PF4019252413G3/8 NPT3/812.5LSQ-S2-SS-04PF46.523.5282717G1/2 NPT1/220LSQ-S2-SS-06PF5631.5363622G3/4 NPT3/425LSQ-S2-SS-08PF6337.835.54123G1" NPT1"Lsq-S2-Ss Close Type Hydraulic Quick Coupling (STAINLESS STEEL 316)ISOPARTNO.L¢DHEX1HEX2T5LSQ-S2-SS-0162.5241714G1/8 NPT1/86.3LSQ-S2-SS-0272.228.51919G1/4 NPT1/410LSQ-S2-SS-0380.5352424G3/8 NPT3/812.5LSQ-S2-SS-0491.5423027G1/2 NPT1/220LSQ-S2-SS-06112.5543636G3/4 NPT3/425LSQ-S2-SS-08126.5654141G1 NPT1
