Parker and Hyva Kind Multistage Hydraulic Telescopic Cylinder for Dump Truck

Shandong Wantong Hydraulic Co., Ltd.
  • Certification:ISO9001, ISO,Ts 16949
  • Pressure:Medium Pressure
  • Work Temperature:Normal Temperature
  • Acting Way:Single Acting
  • Working Method:Straight Trip
  • Structure:Piston Type

Base Info

  • Model NO.:FC 224-5-5588 , 9-5-220
  • Material:Alloy Steel
  • Shaft Diameter:9"
  • Maximum Stroke:220", 5580mm
  • Delivery Time:20 Days
  • Seal:Hallite,Parker,Nok.etc
  • MOQ:1PCS
  • Color:Blue, Black, Yellow, etc
  • Warranty:14months From Production Time
  • After-Service:7*24 Hours
  • Machine:700set
  • Engineer:25
  • Transport Package:Plywood Box or Pallet or as Your Requirement
  • Specification:pcs
  • Trademark:WTJX
  • Origin:Rizhao, Shandong, China
  • HS Code:8412210000
  • Production Capacity:200, 000 PCS,Year

Description

ITEMMODLE NO.# of StagesLargest Moving Stage Diameter(mm)stroke(mm)mounting distance(mm) 1WTHY FE-3-110-32053110320514492WTHY FE-3-110-34603110346016093WTHY FE-3-129-34603129346014494WTHY FE-3-129-38803129388016095WTHY FE-3-149-29003149290013206WTHY FE-3-149-32003149320014207WTHY FE-3-149-35003149350015208WTHY FE-3-149-38803149388016449WTHY FE-4-149-428041494280145010WTHY FE-4-149-494041494940152911WTHY FE-4-149-462041494620148412WTHY FE-4-169-428041694280139413WTHY FE-4-169-445041694450143714WTHY FE-4-169-462041694620147915WTHY FE-4-169-494041694940152916WTHY FE-4-169-500041695000157417WTHY FE-4-169-518041695180160418WTHY FE-5-169-535551695355139419WTHY FE-5-169-578051695780155920WTHY FE-5-169-618051696180152721WTHY FE-5-169-648051696480160422WTHY FE-5-169-683051696830167423WTHY FE-5-169-713051697130176924WTHY FE-5-191-618051916180152725WTHY FE-5-191-903051919030217726WTHY FE-6-191-742061917420167727WTHY FE-5-214-683052146830166228WTHY FE-5-214-7130521471301722ITEM MODEL NO.Largest Moving Stage Diameter# of StagesSTROKECLOSED LENGTHOPEN LENGTH1WTPK 3TG F5*725"372"(1829mm)37.19" (945mm)109.19" (2773mm)2WTPK 3TG F5*845''      384" (2134mm)41.19" (1046mm)125.19" (3180mm)3WTPK 3TG F5*1075"3107.56" (2732mm)48.38" (1229mm)155.94" (3961mm)4WTPK 3TG F5*1265"3126.63" (3216mm)54.56" (1386mm)181.19" (4602mm)5WTPK 3TG F6*866"386.75" (2203mm)40.88" (1038mm)127.63" (3241mm)6WTPK 3TG F6*1046"3103.94" (2640mm)47" (1194mm)150.94" (3834mm)7WTPK 3TG F6*1076"3107.56" (2732mm)48.38" (1289mm)155.94" (3961mm)8WTPK 3TG F6*1116''    3111" (2819mm)49.94" (1268mm)160.94" (4087mm)9WTPK 3TG F6*1206''    3120'' (3048mm)53.5" (1359mm)173.5" (4407mm)10WTPK 3TG F6*1236''    3123" (3124mm)54.94" (1395mm)177.94" (4519mm)11WTPK 3TG F6*1266''    3126.31"(3208mm)54.56" (1386mm)180.87" (4594mm)12WTPK 3TG F6*1406''    3140.25" (3562mm)59.81" (1519mm)200.06" (5081mm)13WTPK 4TG F6*1356''    4135" (3429mm)47.19" (1199mm)182.19" (4628mm)14WTPK 4TG F6*1566''    4156" (3962mm)53.62" (1362mm)209.62" (5324mm)15WTPK 3TG F7*1107"    3110.63" (2810mm)50.06" (1271mm)160.69" (4081mm)16WTPK 3TG F7*1207" 3120" (3048mm)53.12" (1349mm)173.12" (4397mm)17WTPK 3TG F7*1247"   3124.88" (3172mm)54.81" (1392mm)179.69" (4564mm)18WTPK 3TG F7*1297"   3129" (3277mm)56.5"  (1435mm)185.5" (4712mm)19WTPK 3TG F7*1407"   3140.44" (3567mm)60"  (1524mm)200.44" (5091mm)20WTPK 3TG F7*1507"   3150" (3810mm)63.50"  (1613mm)213.50" (5423mm)21WTPK 4TG F7*1207"   4120" (3048mm)44.12" (1120mm)164.12" (4168mm)22WTPK 4TG F7*1357"   4135" (3429mm)48.43" (1230mm)183.44" (4659mm)23WTPK 4TG F7*1407"   4140" (3556mm)49.75" (1263mm)189.75" (4819mm)24WTPK 4TG F7*1567"   4156" (3962mm)53.75" (1365mm)209.75" (5327mm)25WTPK 4TG F7*1617"   4161.75" (4108mm)55.31" (1405)217.06" (5513mm)26WTPK 4TG F7*1677"   4167" (4242mm)56.38" (1432mm)223.38" (5674mm)27WTPK 4TG F7*1807"   4180" (4572mm)61.12" (1552mm)241.12" (6124mm)28WTPK 4TG F8*1488"   4147.75" (3753mm)51.50" (1308mm)199.25" (5061mm)29WTPK 4TG F8*1568"   4156" (3962mm)53.75" (1365mm)209.75" (5327mm)30WTPK 4TG F8*1618"   4160" (4064mm)55.75" (1416mm)215.75" (5480mm)31WTPK 4TG F8*1708"   4170" (4318mm)57.25" (1454mm)227.25" (5481mm)32WTPK 4TG F8*1808"   4180" (4572mm)59.75" (1518mm)239.75" (6090mm)33WTPK 5TG F8*1708"   5170" (4318mm)49.88" (1267mm)219.88" (5585mm)34WTPK 5TG F8*1908"  5189" (4800mm)54.62" (1387mm)243.62" (6188mm)35WTPK 5TG F8*2208"  5220" (5588mm)60" (1524mm)280" (7112mm)36WTPK 5TG F8*2358"   5234" (5944mm)64.62" (1641mm)298.62" (7585mm)37WTPK 5TG F8*2508"  5249" (6325mm)68.62" (1743mm)317.62" (8068mm)38WTPK 5TG F8*2658"   5265" (6731mm)71" (1803mm)336" (8534mm)39WTPK 5TG F8*2858"  5285" (7239mm)78.5" (1994mm)363.5" (9233mm)40WTPK 5TG F9*2209"   5218" (5537mm)62.44" (1586mm)280.44" (7123mm)41WTPK 5TG F9*2359"   5233" (5918mm)65.44" (1662mm)298.44" (7580mm)42WTPK 5TG F9*2509"   5248" (6299mm)68.44" (1738mm)316.44" (8037mm)43WTPK 5TG F9*2659"   5265" (6731mm)72.62" (1844mm)337.62" (8575mm)44WTPK 5TG F9*2809"   5280" (7112mm)72.62" (1997mm)358.62" (9109mm)45WTPK 5TG F9*3009"   5300" (7620mm)79" (2007mm)379" (9627mm)46WTPK 5TG F9*3209"   5320" (8128mm)83" (2108mm)403" (9628mm)47WTPK 5TG F9*3409"   5340" (8636mm)87" (2210mm)427" (10846mm)

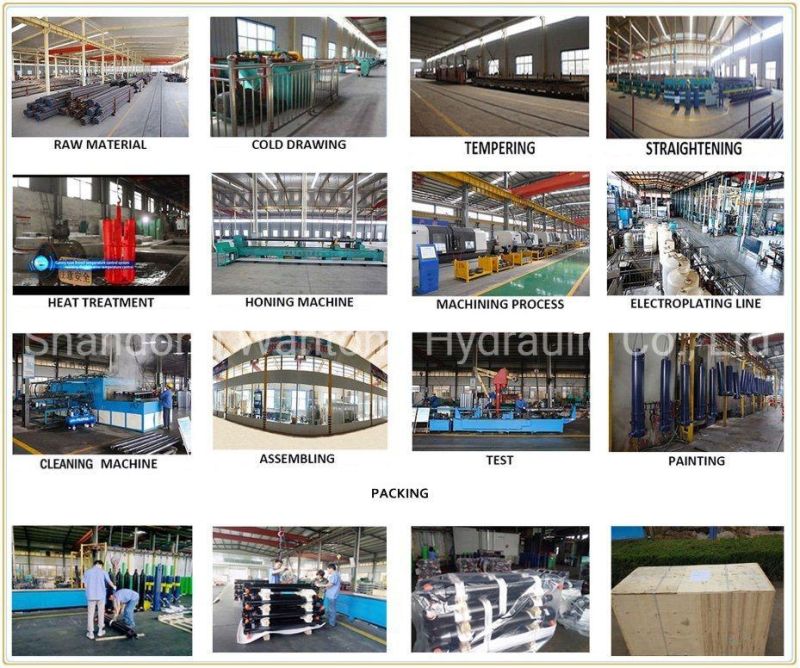

  3. hydraulic telescopic cylinder for dump truck produce line
