• Model NO.：KZF
• Size: 4,6,8,10,12,16,20,24,32：Raw Material : Carbon Steel, Ss Steel, Brass
• Auxiliary Components：Pipe and Pipe Fittings
• Transport Package：Plastic Bag+Box +Pallet
• Specification：ISO 7241B Series
• Trademark：OEM OR NO BRAND
• Origin：Ningbo, China
• HS Code：73079200
• Production Capacity：10000set,Month

Basic Info.

Model NO. KZF Size: 4,6,8,10,12,16,20,24,32 Raw Material : Carbon Steel, Ss Steel, Brass Auxiliary Components Pipe and Pipe Fittings Transport Package Plastic Bag+Box +Pallet Specification ISO 7241B Series Trademark OEM OR NO BRAND Origin Ningbo, China HS Code 73079200 Production Capacity 10000set/Month

Product Description

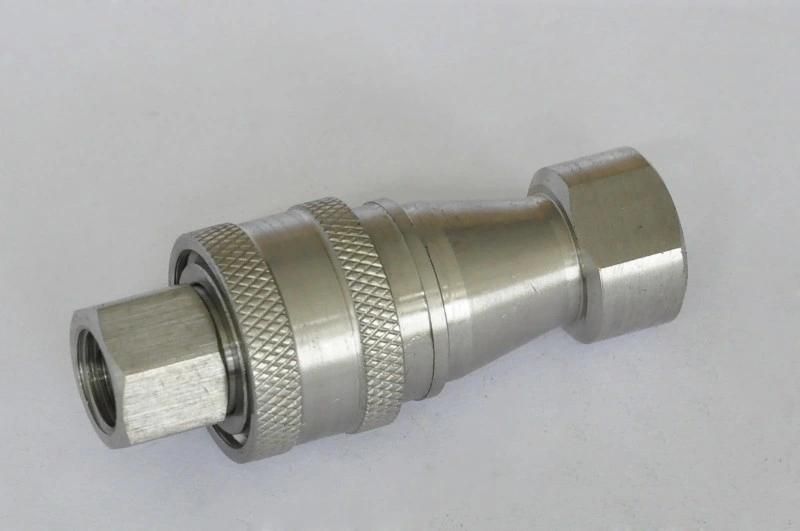

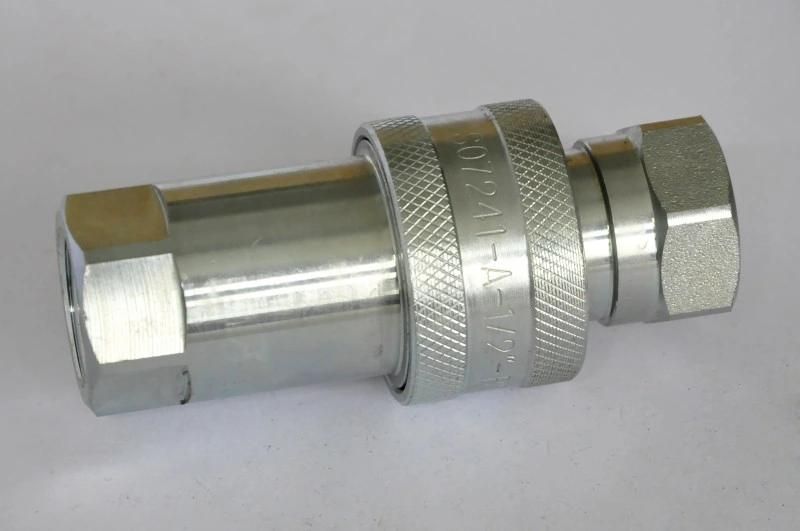

KZF Close Type Hydraulic Quick Coupling (stainless steel 304)
KZF couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.
Specification
Body Size(in)1/81/43/81/23/411(1/4)1(1/2)2
Rated Pressure(PSI)200020001500150015001000100010001000
Rated Flow(GPM)13612285075100150
Temperature Range(std seals)-20º C to +180º C
Standard seal materialVITON
KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

KZF (1/8", 1/4", 3/8", 1/2") KZF (3/4", 1", 11/4", 12/2", 2")
Socket
(stainless steel 304)
KZF couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.
Specification
Body Size(in)1/81/43/81/23/411(1/4)1(1/2)2
Rated Pressure(PSI)200020001500150015001000100010001000
Rated Flow(GPM)13612285075100150
Temperature Range(std seals)-20º C to +180º C
Standard seal materialVITON
KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

KZF (1/8", 1/4", 3/8", 1/2") KZF (3/4", 1", 11/4", 12/2", 2")
Socket
