Blince High Torque Orbital Motor Omt160~Omt800 Replace Danfoss Hydraulic Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE, ISO9001
- Type：Hydraulic Motor
- Structural：Hydraulic Orbit Motor
- Material：Cast Iron
- Shaft Type：Parallel Key ,Splined Key Shaft
- Flange Type：Square-Flange,Wheel-Flange
Base Info
- Model NO.：OMT160~OMT800
- Diameter of Shaft：31.75mm,34.85mm,38.1mm,40mm
- Rotation Direction：Positive & Reverse Direction
- Application：Heavy to Medium Duty Tasks
- Standard & Non-Standard：Standard
- Hydraulic Fluid：Synthetic Hydraulic Oil
- Hydraulic Power Units：Vane Pump
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：ISO9001
- Trademark：Blince
- Origin：Guangdong, China (Mainland)
- HS Code：8412291000
- Production Capacity：10000 Sets, Month
Description
TypeOMT160 OMT200 OMT230 OMT250 OMT315 OMT400 OMT500 OMT630 OMT800 displacement
(cm3/rev.)
161.1
201.4
232.5
251.8
326.3
410.9
523.6
629.1
801.8 Max.speed
(rpm) cont. 625 625 536 500 380 305 240 196 154 int. 780 750 643 600 460 365 285 233 185
Max. torque
(Nm) cont. 470 590 670 730 950 1080 1220 1318 1464 int. 560 710 821 880 1140 1260 1370 1498 1520 peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665 Max.output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2 int. 32 40 40 40 40 35 35 27.5 26.8 Max. pressure
drop
(MPa) cont. 20 20 20 20 20 18 16 14 12.5 int. 24 24 24 24 24 21 18 16 13 peak 28 28 28 28 28 24 21 19 16 Max.flow (L/min) cont. 100 125 125 125 125 125 125 125 125 int. 125 150 150 150 150 150 150 150 150 Max. inlet
pressure (MPa) cont. 21 21 21 21 21 21 21 21 21 int. 25 25 25 25 25 25 25 25 25 peak 30 30 30 30 30 30 30 30 30 Net Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25
Blince OMT series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
Application areas:
1) Conveyors
2) Metal working machine
3) Agriculture machines
4) Road building machines
5) Mining machinery
6) Food industries
7) Special vehicles
8) Plastic and rubber machinery
9) And more
WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Related Products:

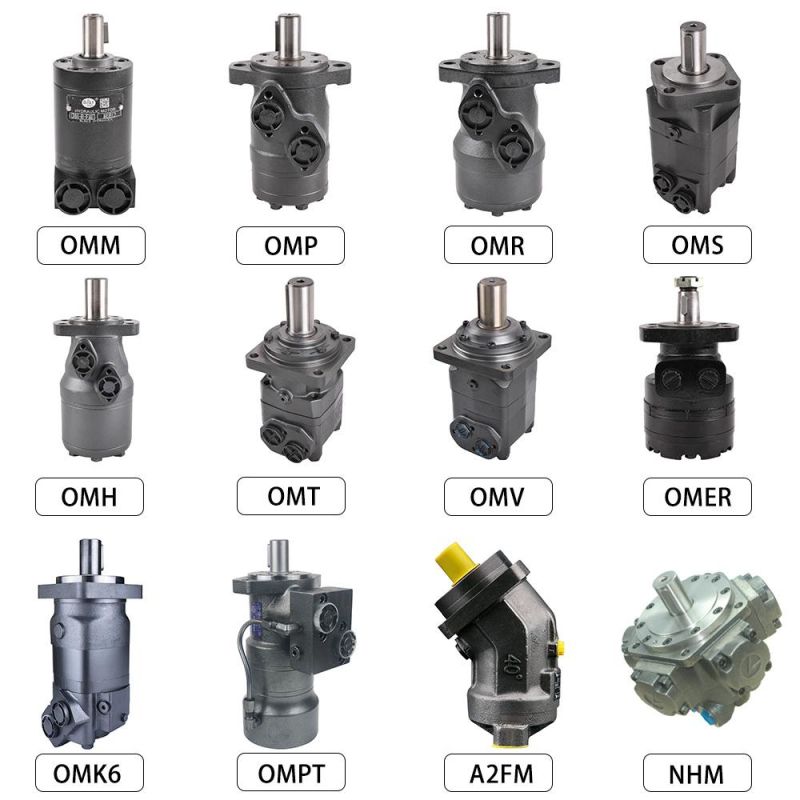

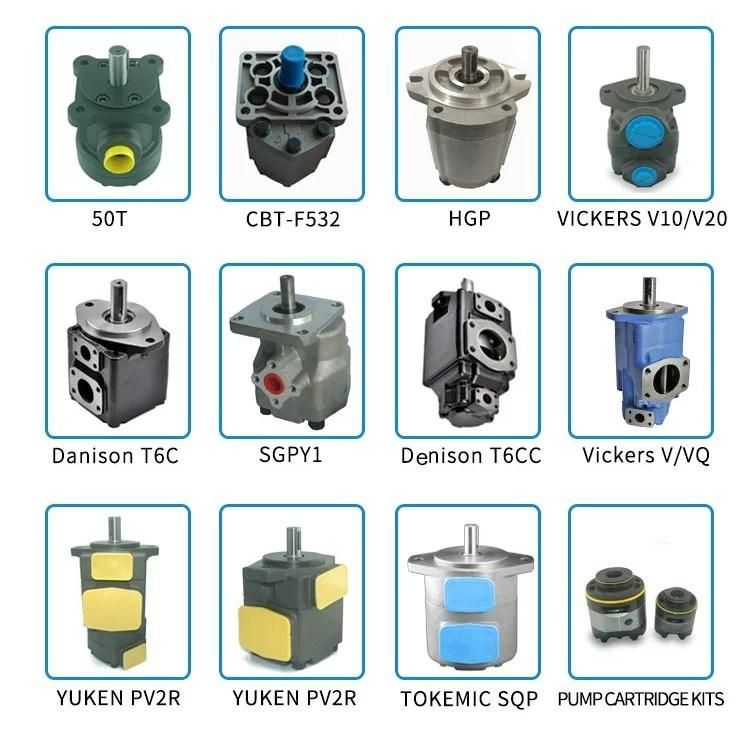

Blince profssion supply all series hydraulic motor like OMM/OMP/OZ/OMR/OK/OMH/OMP1/OYM/OMRL/OM1/OM2/OM3/OM4/OMSY/OMT/OMV /OMER hydraulic orbit motor,hydraulic pump like ( PV2R series/V/VQ series/SQP series ).
Contact Us:
If you have any questions or other hydraulics informations what I can do for you. Please contact me directly or visit our website. The best service you will get soon! : )
Winnie Tan
