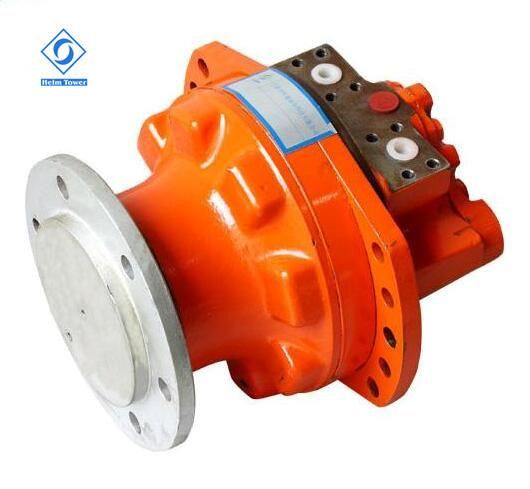

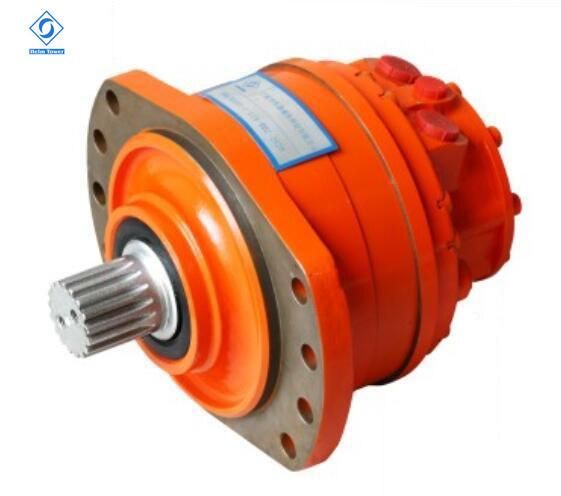

Rexroth Hydraulic Motor in Machinery
Ningbo Helm Tower Noda Hydraulic Co., Ltd.- Certification：ISO9001
- Speed：Low Speed
- Type：Plunger Type
- Performance：Replace Rexroth Originals Very Well
- Certificate：ISO9001:2008
- Warranty：1 Year
Base Info
- Model NO.：MCR
- MOQ：1 Set
- Color：Customer Required
- Transport Package：Standard Export Wooden Case
- Specification：MCR10
- Trademark：Helm Tower
- Origin：Ningbo, China
- HS Code：8412291000
- Production Capacity：200 Sets,Month
Description
CodeMCR03 Displacement Group 7 0 1 2 Displacement(ml/r) 160 225 255 280 Theoretical torque at 10 MPa(N.m) 254 357 405 445 Rated speed(r/min) 250 160 160 125 Rated pressure(Mpa) 25 25 25 25 Rated torque(N.m) 530 740 830 920 Max pressure(Mpa) 31.5 31.5 31.5 31.5 Max torque(N.m) 650 910 1030 1130 Speed range(r/min) 0-670 0-475 0-420 0-385 Max power(kW) 18 0Displacement Group 0 1 2 Displacement(ml/r) 325 365 400 Theoretical torque at 10MPa(N.m) 516 580 636 Rated speed(r/min) 160 125 125 Rated pressure(Mpa) 25 25 25 Rated torque(N.m) 1060 1200 1310 Max pressure(Mpa) 31.5 31.5 31.5 Max torque(N.m) 1310 1470 1620 Speed range(r/min) 0-330 0-295 0-270 Max power(kW) 22 Displacement Group 8 0 1 2 Displacement(ml/r) 380 470 520 565 Theoretical torque at 10 MPa(N.m) 604 747 826 890 Rated speed(r/min) 160 125 125 125 Rated pressure(Mpa) 25 25 25 25 Rated torque(N.m) 1240 1540 1700 1850 Max pressure(Mpa) 31.5 31.5 31.5 31.5 Max torque(N.m) 1540 1900 2100 2290 Speed range(r/min) 0-475 0-385 0-350 0-320 Max power(kW) 29 0Displacement Group 9 0 1 2 Displacement(ml/r) 620 680 750 820 Theoretical torque at 10MPa(N.m) 985 1080 1192 1302 Rated speed(r/min) 125 100 100 100 Rated pressure(Mpa) 25 25 25 25 Rated torque(N.m) 2030 2230 2460 2690 Max pressure(Mpa) 31.5 31.5 31.5 31.5 Max torque(N.m) 2510 2750 3040 3320 Speed range(r/min) 0-290 0-265 0-240 0-220 Max power(kW) 35 MCRE10 Displacement Group 0 1 2 0 1 2 Displacement(ml/r) 780 860 940 1120 1250 1340 Theoretical torque at 10 MPa(N.m) 1240 1367 1494 1780 1987 2130 Rated speed(r/min) 125 100 100 100 80 80 Rated pressure(Mpa) 25 25 25 25 25 25 Rated torque(N.m) 2560 2820 3090 3680 4110 4400 Max pressure(Mpa) 31.5 31.5 31.5 31.5 31.5 31.5 Max torque(N.m) 3160 3480 3810 4540 5060 5430 Speed range(r/min) 0-215 0-195 0-180 0-150 0-135 0-125 Max power(kW) 44 50

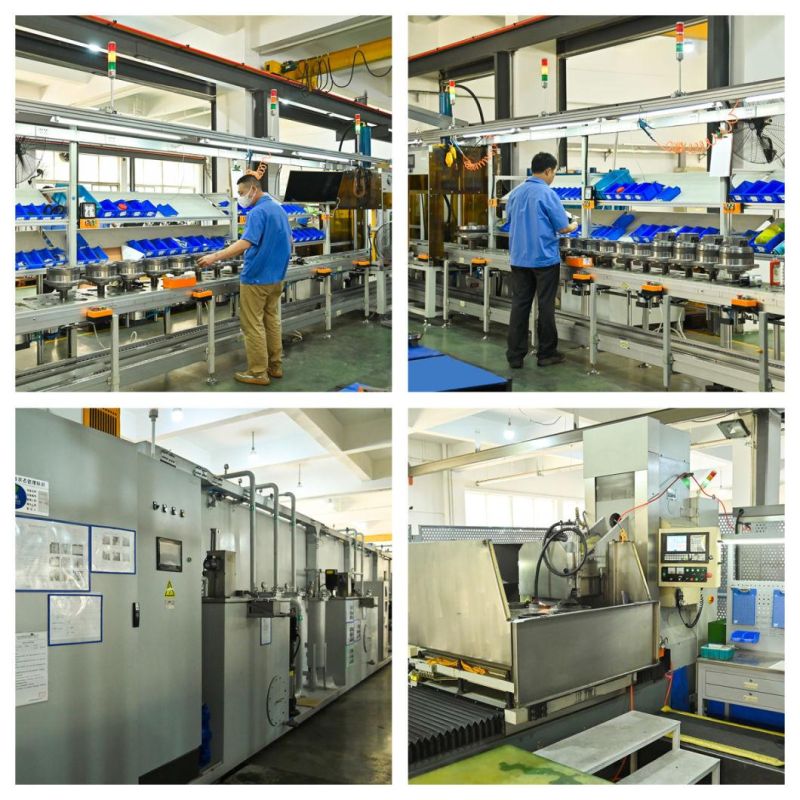

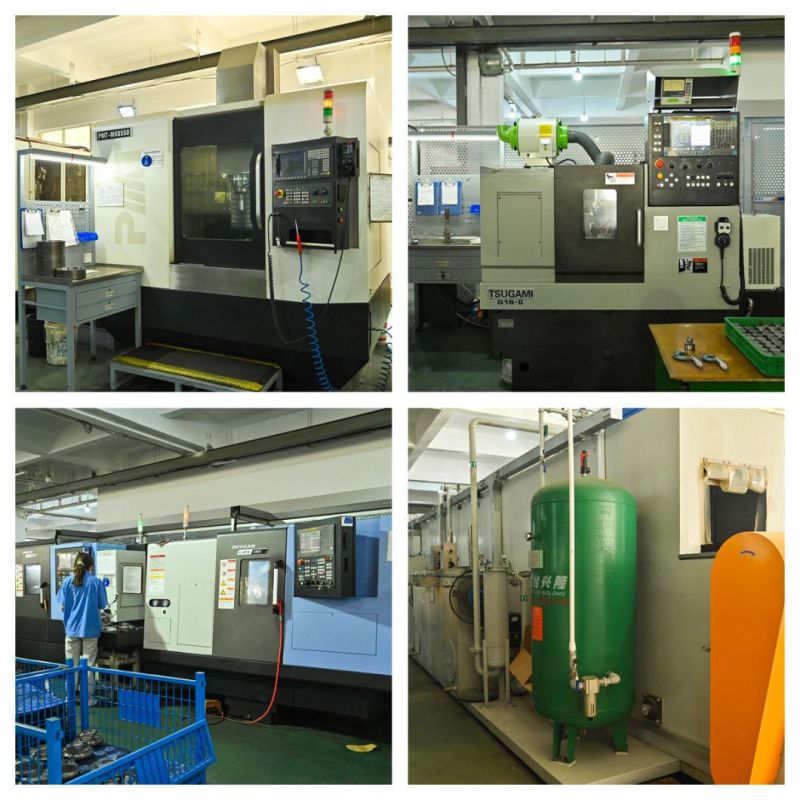

Workshop View:

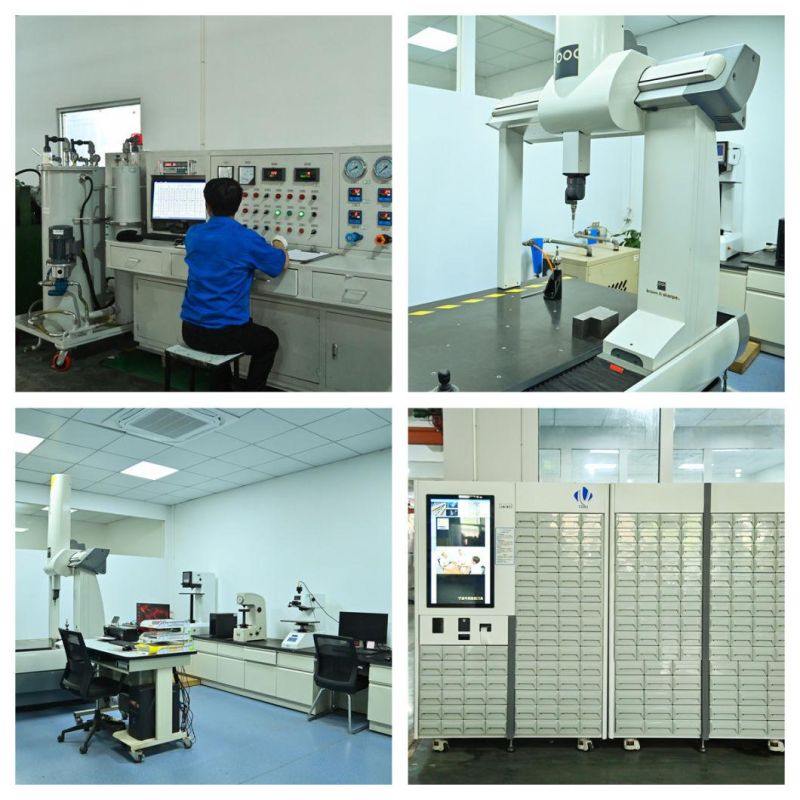

Quality Control:
FAQ
Q: Which products you can provide?
A: Hydraulic motor(Vane motor, Poclain MS series motor, MCR series motor ,etc), hydraulic pumps, hydraulic drum cutters and spare parts
we also can provide maintenace services
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: How can you guarantee the quality?
A: During the production, we will test every parts and every motor
If you meet with quality problem within 1 year, we will replace goods or spare parts
If you have another question, pls feel free to contact us as below:
Sarah Yu

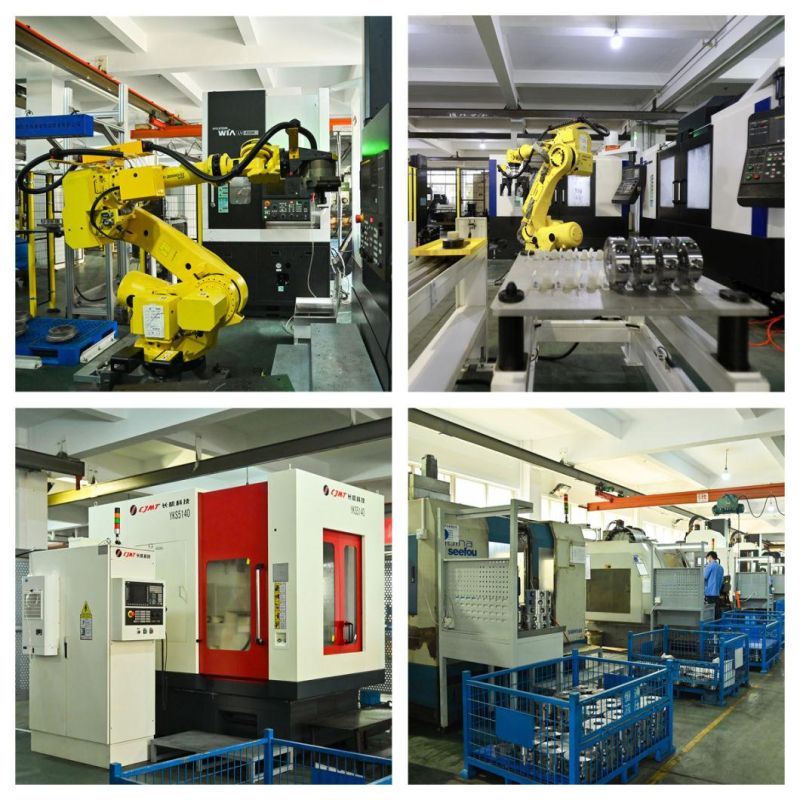

Workshop View:
Quality Control:
FAQ
Q: Are you a manufacturer or trading company?
A: Manufacturer in Ningbo for more than 10 years.Q: Which products you can provide?
A: Hydraulic motor(Vane motor, Poclain MS series motor, MCR series motor ,etc), hydraulic pumps, hydraulic drum cutters and spare parts
we also can provide maintenace services
Q: Your minmun order quantity(MOQ)?
A: 1 set
Q: How can you guarantee the quality?
A: During the production, we will test every parts and every motor
If you meet with quality problem within 1 year, we will replace goods or spare parts
If you have another question, pls feel free to contact us as below:
Sarah Yu
