• Model NO.：WTPK 3TG F7*120
• Application：Dump Truck, Tipper, Trailer
• Seal：Hallite, SKF, Nok, Parker
• Delivery Time：15-30 Days
• Color：as Customer′s Requirement
• Transport Package：Pallet, Wooden Case or as Customer′s Requirement
• Specification：ISO,TS16949, ABS, API, SGS
• Trademark：WTJX
• Origin：Shandong, China
• HS Code：8412210000
• Production Capacity：200, 000 Sets , Year

HS Code8412210000ApplicationDump truckMaterial of cylinder tubeAlloy steelSealHallite, SKF, NOK, Guarnitec, ParkerCoatingAll tubes are chrome platedWorking pressure16mpa-30mpaStroke5588mmColorred black blue gray, according to customer's requirementMounting TypeEarring-trunnion, double trunnion, double earring (eye end), Pin to pin bottonCertificationISO/TS16949Packagepallet, plywood case WarrantyPeriod of 14 months from the date of manufacture.The manufacture date is engraved on the label of every cylinder.Main export marketUS, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Kenya, Philippines, Bolivia, the United Arab Unites, SingaporePayment termsT/T, L/C, Delivery time20 days after down payment

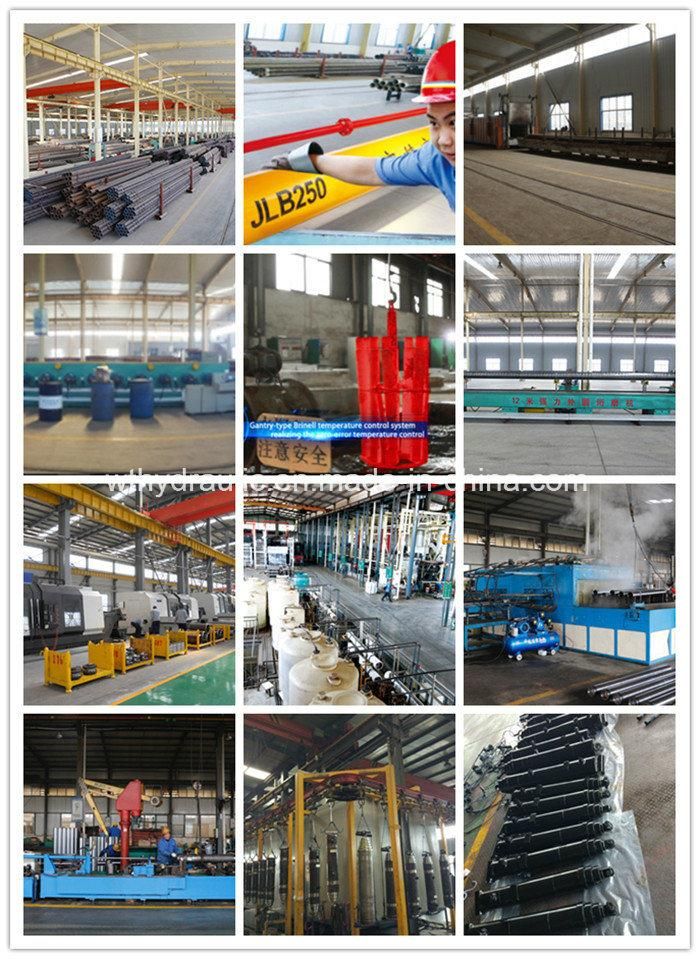

Production Process:
>Each processing under our control, each products, every step under strict quality control;



Exhibitions& Customers:
>We are the supplier of SINOTRUK, CIMC, JAC, SHACMAN, ZMJ and YANKUANG GROUP
manufacturing and refitting company use our telescopic cylinder as first choice.

>We attended each Bauma exhibition, the world trade fair for construction equipment, building material machines, mining machines and earn much more opportunity to extend our business to oversea market.


Quality Control:
1, The mechanical properties and chemical elements of the raw material will be inspected to check whether qualified after entering the warehouse.
2, Chemical composition inspection of raw materials, Test the chemical composition of metallic materials, such as C, Si, Mn, P, S, Cr, Ni and other elements.Mainly for raw materials incoming inspection, by testing whether the material qualified, receiving materials.
3, Metallographic analysis of metal materials is usually the raw materials, such as copper, iron, aluminum, magnesium, zinc, titanium, etc., for the processing of structural parts and finished product evaluation, through the metallographic analysis, You can find a variety of possible reasons for failure analysis in time, Prediction and analysis the characteristics of metallic materials and materials, Study material surface, and internal defects, and to improve and verify the process technology of the material;
4, Salt spray test is a major use of salt spray test equipment created by the artificial simulation of salt spray environmental conditions to assess the corrosion resistance of products or metal materials, environmental testing
5, Mechanical performance testing equipment can meet the requirements of mechanical testing, all the use of computer digital display, so the accuracy is more accurate so that the mechanical properties of each cylinder barrel has been greatly improved.
6, Every workpiece is machined according to the confirmed drawings and will be inspected casually by QC according to a certain proportion.The traceable record shall be clear and traceable.
7, The qualified parts are assembled into one cylinder and then the pressure test will be done.
Before and after assembly, the basic dimensions and workmanship will be inspected again.
8, An inspection report will come into being before delivery.

Certificated:

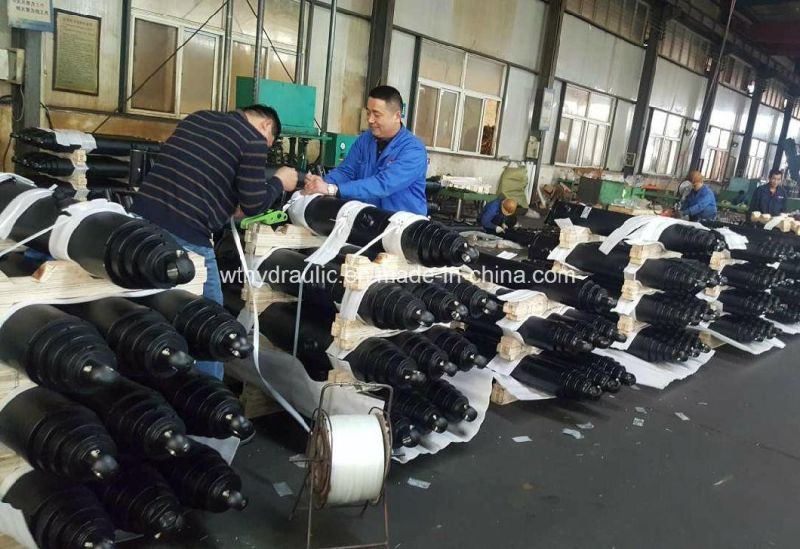

Package:



Guarantee and after sale service:
> Pre-sale service: Keep communicating with the truck manufacturers, including the selection of product model, the design of a hydraulic system, a test of performance and analysis of the accident. Once the problems occur, we will solve them immediately together with truck manufacturers.
>The sale service: Provide training and technical support for users.
> After-sale service: Solve the problem firstly, then analyze responsibility; Replace the system components
immediately if any need.
> 24 hours telephone service hotline.
