• Model NO.：LL265
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-120 Celsius Degree
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：G, M, SAE Thread Standards
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：4000PCS,Month

Basic Info.

Model NO. LL265 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-120 Celsius Degree Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification G, M, SAE Thread Standards Trademark Longli Origin China HS Code 8412299090 Production Capacity 4000PCS/Month

Product Description

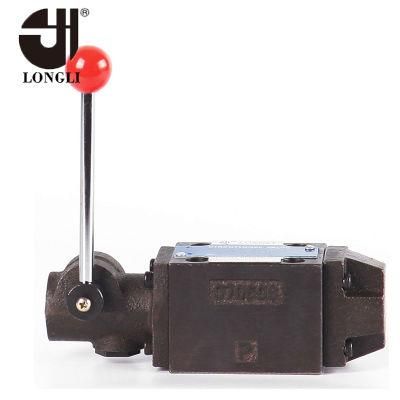

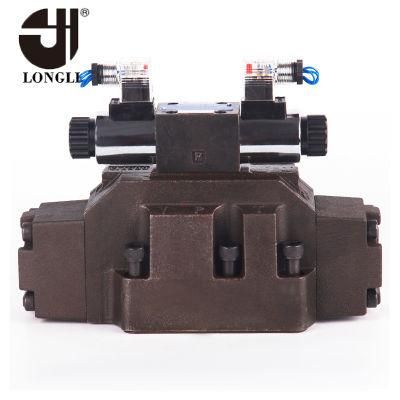

High Pressure Hydraulic System Combination Valve


The High Pressure Hydraulic System Combination Valve of extensive application experience, innovative design and flexible manufacturing allow us to offer custom Hydraulic Manifold systems that meet our customers` demands.

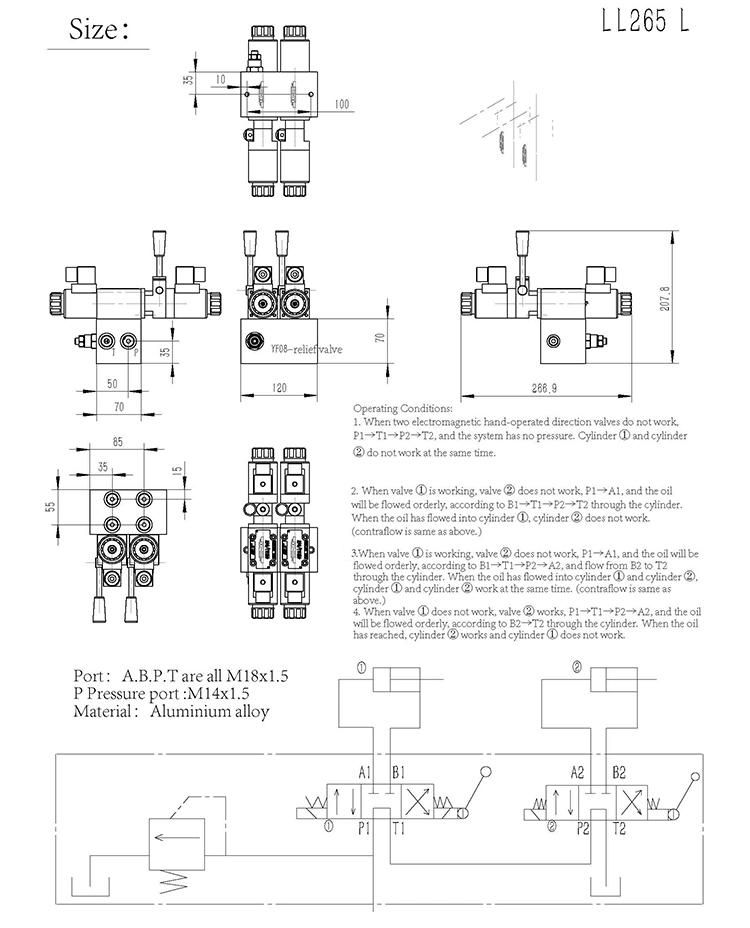

1.The two electromagnetic hand-operated direction valves are not work, there is no pressure of system P1→T1→P2→T2. Both of cylinders 1 and 2 are not work.

2. When valve 1 is working but valve 2 is not working and oil from P1 to A1. Oil in the oil cylinder will flow as the following step: B1→T1→P2→T2, to make cylinder 1 work but cylinder 2 is not work. (Reserve the same as above)

3. When both valve 1 and 2 are working and oil from P1 to A1. Oil in the oil cylinder will flow as the following step: B1→T1→P2→A2, then flow from B2 to T2 to make both cylinder 1 and 2 are work. (Reserve the same as above)

4. When valve 1 is not working but valve 2 is working and Oil flow as the following step: B1→T1→P2→A2, oil in the cylinder will flow from B2 to T2 to make valve 2 work but valve 1 is not work.

Model: LL265
Place of Origin: Shandong,China (Mainland)
Materials available: Aluminum alloy
Working pressure: 250bar
Different threads: Standard or indicated
Quality tested: All products are be tested
Treatment: Black galvanized, zinc plated, or indicated
Customized: Depends on the drawings or samples
Product group: Hydraulic accessories for valves sandwich mounting

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
