• Model NO.：SG-E40,50,63,80,110
• Structure：Piston Type
• Material：Stainless Steel
• Product name：Heavy Lifting Mechanism Hydraulic Lift Cylinder
• OEM：Yes
• Keywords：piston type hydraulic cylinder
• Tube：High tensile cold drawn tube, precision honed for
• Good Service：Overseas service center available
• Condition：New
• Type：Piston Type
• Property：Safe and Reliable
• Package：custom
• Power：Hydraulic
• Standard or Nonstandard：Nonstandard
• MOQ：1PCS
• Warranty：12 Months
• Color：custom
• Hot point：double acting hydraulic cylinder
• Transport Package：Customized packing
• Specification：Steel
• Trademark：Jiaheng
• Origin：China
• HS Code：841221000
• Production Capacity：120000sets,Year

Basic Info.

Model NO. SG-E40/50/63/80/110 Structure Piston Type Material Stainless Steel Product name Heavy Lifting Mechanism Hydraulic Lift Cylinder OEM Yes Keywords piston type hydraulic cylinder Tube High tensile cold drawn tube, precision honed for Good Service Overseas service center available Condition New Type Piston Type Property Safe and Reliable Package custom Power Hydraulic Standard or Nonstandard Nonstandard MOQ 1PCS Warranty 12 Months Color custom Hot point double acting hydraulic cylinder Transport Package Customized packing Specification Steel Trademark Jiaheng Origin China HS Code 841221000 Production Capacity 120000sets/Year

Product Description

 Hubei Jiaheng Technology Co., Ltd
(Hydraulic Cylinders Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com


Part 1-----PRODUCT DETAILS

A.Product Description:
★ Mainly used in horizontal garbage compression station
★ Using reliable sealing scheme, especially the cylinder cylinder supporting scheme of horizontal working condition, effectively avoiding the failure of pulling cylinder
★ The application of new materials reduces the self-weight and enhances the bending resistance performance to ensure that the horizontal use of the cylinder does not cause permanent deformation

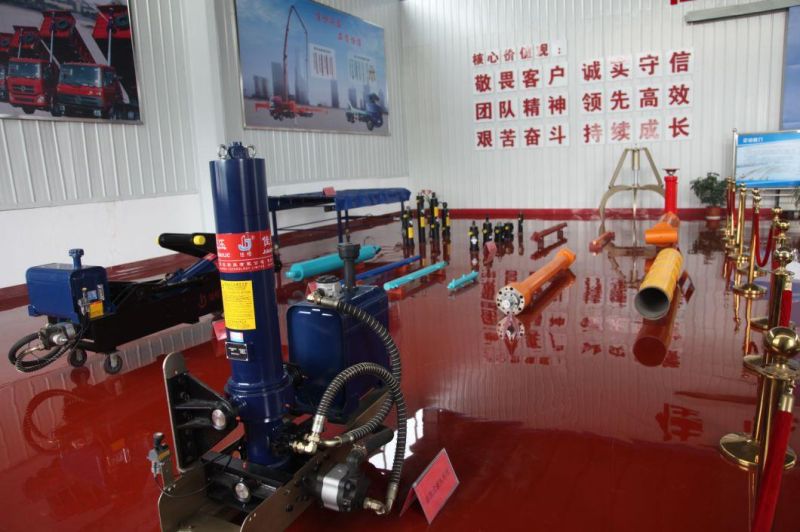

B.Product Show:



C.Hot points:
a.Hydraulic Cylinder With Professional Custom Sale High Quality Short or Long Stroke Single Acting Pull Rod Type Telescopic Light Mechanical Hydraulic Cylinder: Assemble with imported seals kits of NOK, SKF, Hallite and other brands to bring the better seal slick and the stronger persistence.
b.Process with the advanced technology by CNC machine tools, automatic plating and painting equipments to ensure all the parts to have the lower surface roughness and the higher performance level.
c.Own advanced special buffer device with independent intellectual property rights which can effectively absorb the shock to protect the cylinder work smoothly and reliable in performance.
d.Jiaheng's quality custom products are produced for OEM applications in a wide variety of worldwide industries, including manufacturing engineering machinery, loaders hydraulic cylinders, vehicle cylinders, construction, forestry, waste management, mining, material handling, industrial applications, agriculture, manufacturing, transportation, marine applications and oil field equipment. Our success has been built on the engineering expertise and manufacturing capabilities we offer to meet the very specific demands of our industry clients.

D. Specifications:

Model	Product name	Bore(mm)	Rod diameter (mm)	Installation distance(mm)	Stroke (mm)	Rated pressure(MPa)	Rated thrust (t)
SG-E80*610JG	Telescopic hydraulic cylinder	80	40	910	610	16	8
SG-E110*660JG	Telescopic hydraulic cylinder	110	75	1110	660	20	19
SG-E80*610JG	Telescopic hydraulic cylinder	80	40	910	610	16	8
SG-E110*660JG	Telescopic hydraulic cylinder	110	75	1110	660	20	19
SG-E40*65JG	double acting hydraulic  cylinder	40	28	375	65	20	2.5
SG-E40*90JG	double acting hydraulic  cylinder	40	28	250	90	20	2.5
SG-E63*56JG	double acting hydraulic  cylinder	63	45	290	56	20	6.2
SG-E63*460JG	double acting hydraulic  cylinder	63	45	740	460	20	6.2
SG-E50*230JG	double acting hydraulic  cylinder	50	32	470	230	20	3.9
SG-E50*280JG	double acting hydraulic  cylinder	50	32	560	280	20	3.9
SG-E50*320JG	hydraulic lift	50	32	600	320	20	3.9
SG-E63*990JG	standard cylinder	63	45	1265	990	25	7.8
SG-E63*1205JG	opening door cylinder	63	45	280	1205	25	7.8
SG-E63*1405JG	doubule acting hydraulic cylinder	63	45	280	1405	25	7.8
SG-E63*1405JG	hydraulic cylinder for dump trailer	63	45	280	1405	25	7.8
SG-E63*1710JG	doubule acting hydraulic cylinder	63	45	280	1710	25	7.8

Part 2-----WHY CHOOSE US

1. Product Research & Development:
Jiaheng builds quality products that are developed with use in mind. We specialize in working with every customer to share ideas and gather critical information regarding hydraulic cylinder fit and performance requirements for your specific application.
2.Hydraulic Cylinder Production:

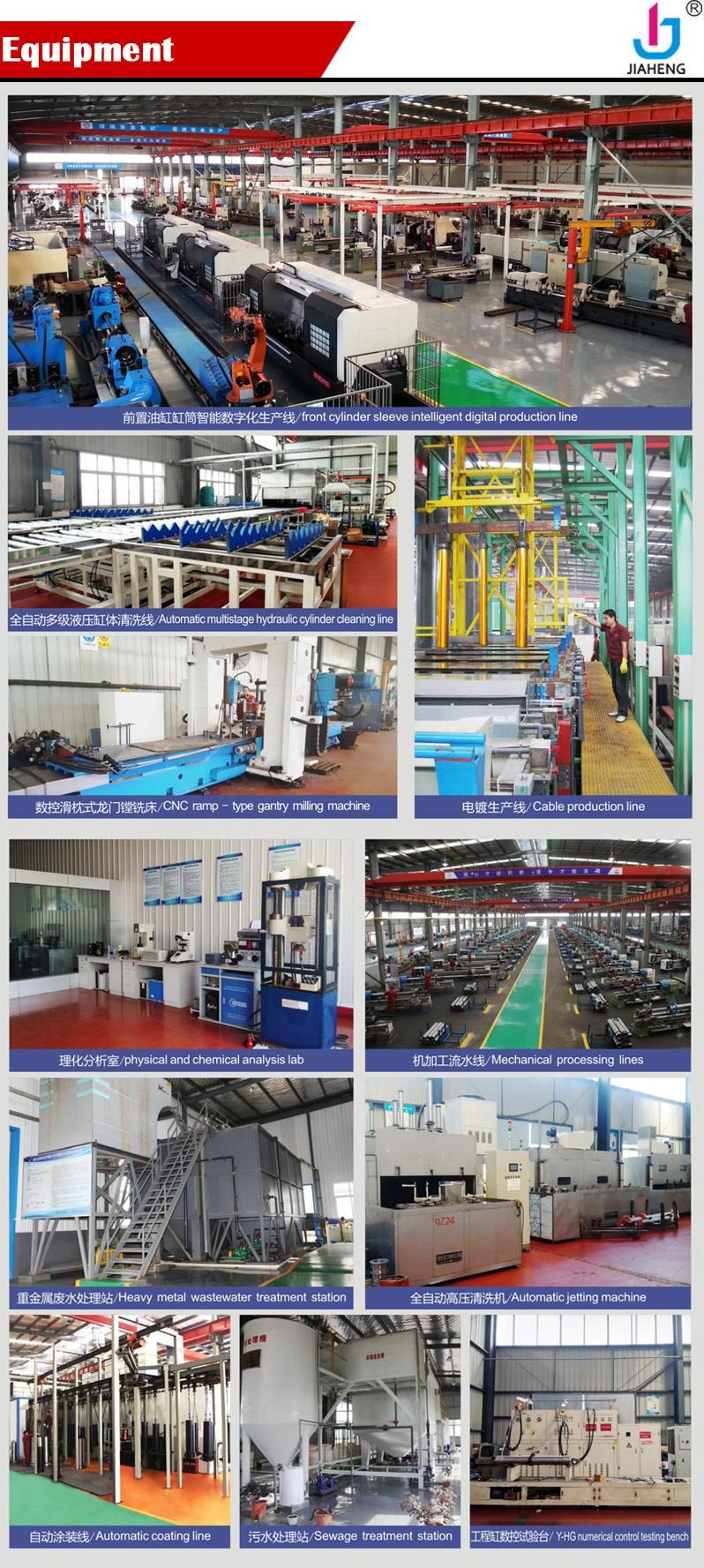

We have the advanced CNC machine tools, a horizontal machining center, a welding robot, parts cleaning agent, automatic assembly lines, automatic painting equipment etc. to hydraulic cylinder ensure a 360-degree quality control of the production process.
3.Perfect after-service:
    1).Pre-sale service: Keep communicating with the truck manufacturers , including selection of product model , design of hydraulic system, test of performance and analysis of the accident. Once the problems occur, we will solve them immediately together with truck manufacturers .
    2).The sale service: Provide training and technical support for users.
    3).After-sale service: Solve the problem firstly, then analyse responsibility ; Replace the system components immediately if any need.
   4). 24 hours telephone service hotline.

 Hubei Jiaheng Technology Co., Ltd
(Hydraulic Cylinders Professional Manufacturer)
Web: hbjh2013.en.made-in-china.com
