• Model NO.：omm20
• Flange：Circle-Flange, Rhomb-Flange
• Motor of Material：Cast Iron
• Output Power：Contin1.8~2.4kw
• Pressure：Contin 70~100bar
• Fuel：Hydraulic Oil
• Item：Hydraulic Power Unit
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：100000 PCS,Year

TypeOMM8OMM12.5OMM20OMM32OMM40OMM50Geometric
displacement
(cm³/rev.)
8.2
12.5
19.9
31.6
39.8
50.3Max.speed
 (rpm)cont.1950                       15501000630500400int.245019401250800630500
Max. torque
(Nm)cont.111625404546int.152335577088Max.output (kW)cont.1.82.42.42.42.21.8
int.
2.6
3.2
3.2
3.2
3.2
3.2Max. pressure
drop
(MPa )cont.1010101097int.141414141414Max.flow (L/min)cont.162020202020int.202525252525Weight    (kg)1.922.12.22.32.4

Displacement:
OMM8,OMM12.5,OMM20,OMM32,OMM40,OMM50
Flange:
1)3-M6 Circle-flange, pilot Ø 31.5× 5;
2) 3-1/4-28UNF Circle flange, pilot Ø 31.5× 5;
3) 2-Ø 9 Rhomb-flange, pilot Ø 63× 2;
Shaft:
1)shaft Ø 16, parallel key 5× 5× 16;
2) Shaft Ø 15.875, parallel key 4.8× 4.8× 19.05;
3)Shaft Ø 16.5, involute B17× 14, DIN5482;

Ports and drain port:
1)G3/8, G1/8;
2)9/16-18UNF, 3/8-24UNF;
3)End port G3/8, G1/8;
4) End port 9/16-18UNF, 3/8-24UNF;

Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go,and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost,you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

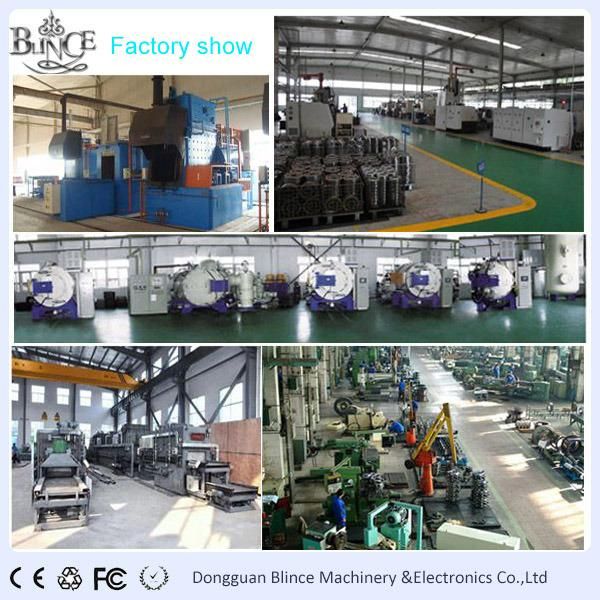

Company Information:
Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd.
Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve.Located in Changan, Dongguan, Guangdong, where we enjoy the
convenient access to major transportation networks. Our factory covers an area of
30,000 square meters and has about 361 staffs. Furthermore, our engineers have decades of experience in hydraulic area, all the products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Copperate with us, you will have the stably, timely and credible supply.




Payment terms:
1,Small amount accept Paypal
2,Western Union
3,Large orders We usually accept T/T(with 30% deposit,the balance before shipment)

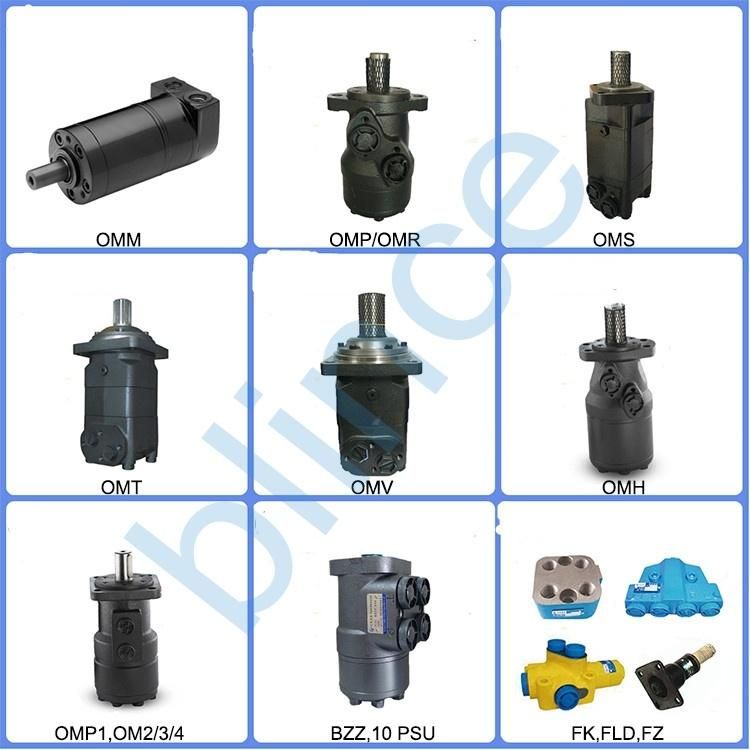

we also provide hydraulic motors such as
OMM,OMP,OMR,OMS,OMT,OMV,OZ,OK,OM1,OM2,OM3,OM4,OMH,OMJ. Vane pumps such as PV2R series,V series and VQ series,SQP series. All these products are standard,best quality.



If you are interested in any one of this products,don't hesitate to contact me.

Winnie Tan
Tel:+8613527998635
Fax: 0086-769-851580786




Thanks for reading and hope you have a good day!
