• Model NO.：DG J E1 L E1
• Structure：Piston Type
• Material：Steel
• Warranty：12month
• Transport Package：Wooden Cases
• Specification：As per drawing
• Trademark：X-ING
• Origin：Ningbo
• HS Code：8412210000
• Production Capacity：50000

ApplicationAgricultureMaterial of cylinder tubealloy steelSealHallite, SKF, NOK, Guarnitec, ParkerCoatingall tubes are chrome platedTemperature-30oC ~ 80oCWorking pressure16mpa-23mpaStroke3000mm-11000mmColorred black blue grayMounting TypeEarring-trunnion, double trunnion, double earring (eye end)Plunger20#, 45# steel with high frequency quenchingCertificationISO9001-2009 and TS16949Packageshrink film, pallet, plywood case and cartonWarrantyOne year after shipping arrivalDelivery time15- 25 days after down payment
1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection
    Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
    Our company has abundant technical force and perfect testing means. By making wide technical and
    business cooperation with many related enterprises, universities, colleges and institutes both at home and
    abroad, and employing senior engineers and software engineers, we have greatly strengthened and
    improved our designing, processing, and testing abilities.

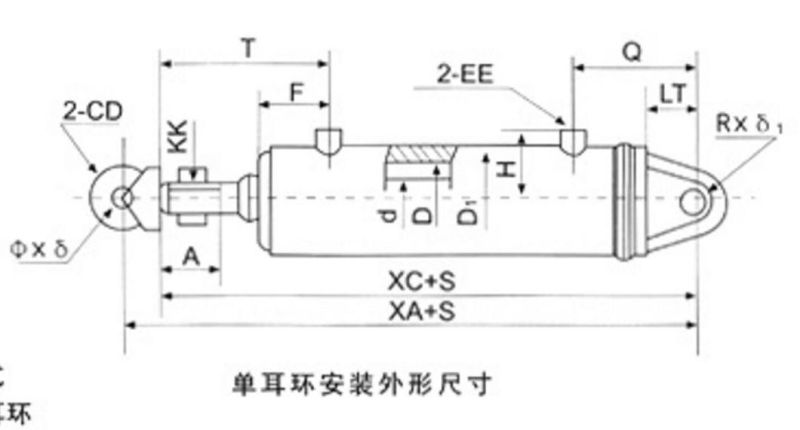

DG-double acting single rod hydraulic cylinder
J-heavy piston rod
Bore diameter
Pressure level 8-16MPa
E1 single earrings installation form
Piston rod connection L: Thread E1: Single-earrings


Our Service

1.Design Services
Our design team has experience in cardan shaft relating to product design and development. If you have any
needs for your new product or wish to make further improvements, we are here to offer our support.

2.Product Services
raw materials → Cutting → Forging →Rough machining →Shot blasting →Heat treatment →Testing
→Fashioning →Cleaning→ Assembly→Packing→Shipping

3.Samples Procedure
We could develop the sample according to your requirement and amend the sample constantly to meet your
need.

4.Research & Development
We usually research the new needs of the market and develop the new model when there is new cars in the
market.

5.Quality Control
Every step should be special test by Professional Staff according to the standard of ISO9001 and TS16949.

6.Certification
Should your products require testing and certification to comply with international standards, we can arrange
this with independent, fully recognized testing companies such as SGS, Intertec, Bureau Veritas, Lloyd's
Register or the testing company of your choice.


Thanks for choosing X-ING as your reliable partner and please
trust both of us will create a brilliant future!
