Hydraulic Fluid Systems Omsw 250
Shijiazhuang Hanjiu Technology Co., Ltd.- Certification：CE
- Pressure：Medium Pressure
- Work Temperature：High Temperature
- Voltage：220V
- Installation：Horizontal
- Material：Alloy Steel
Base Info
- Model NO.：omsw 250
- Warranty：18 Months
- Delivery：10-15 Working Days
- Transport Package：Carton Packing, and Finally with Pallet or Wooden
- Specification：omsw 250
- Trademark：HANJIU
- Origin：China
- HS Code：8412291000
- Production Capacity：500, 000 Sets Per Year
Description
- Output volume (cc/rev): 315

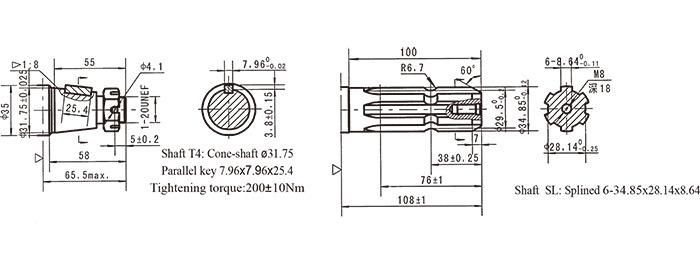

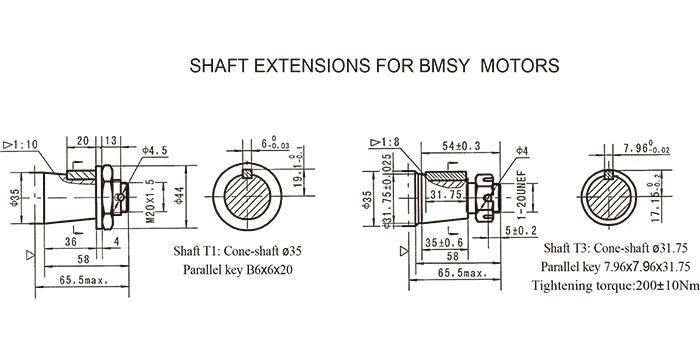

- Shaft: cone shaft 35 mm
- max r.p.m.: 280
- Torque max. (Nm): 1080
- Power max. (kW): 18.9
- Connection: G 1/2"
- Leakage oil connection: G 1/4"

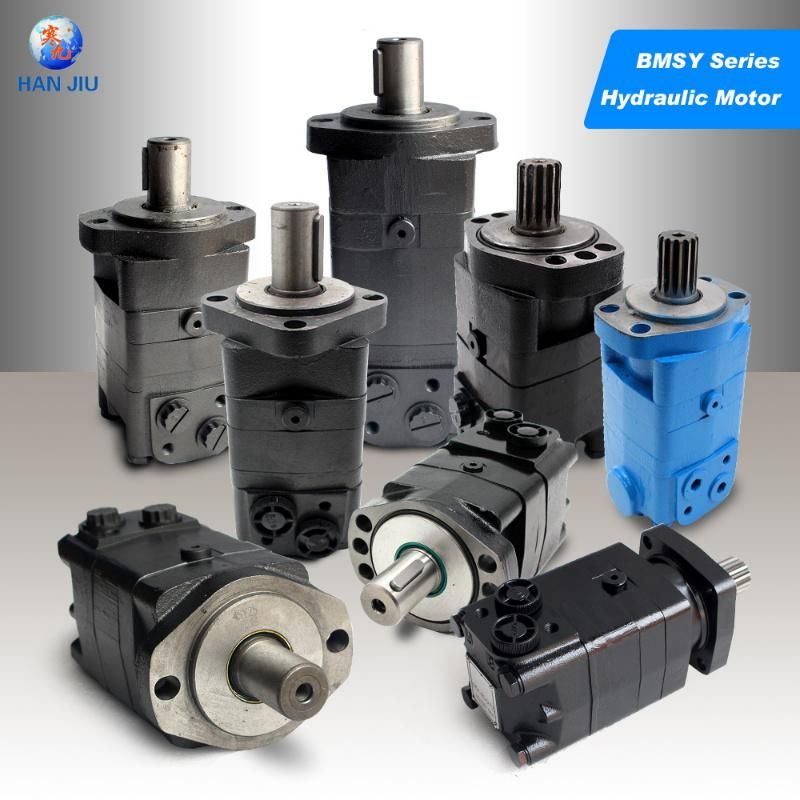

our main products as below: 1. Hanjiu Hydraulic Orbital motors: OMP, OMR, OMS, OMH, OMT,OMV can replace DANFOS, EATON CHAR-LYNN, M+S, etc.
2. Hanjiu Orbital Steering Units: 101S= Danfos OSPC, 101= Danfos OSPB; 102S= M+S HKUS, 060= Eaton 45 series
3. Hanjiu Gear pumps: CBT, CBG-F3, GPC4, G5, Quality same as Parker Gear Pumps, also can replace Caproni, Rexroth etc. We also accept OEM.

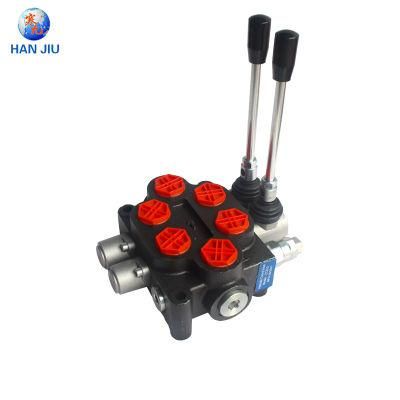

4. Hanjiu Hydraulic Monoblock Valve: P40, P80, etc.
