• Model NO.：NA
• Structure：Piston Type
• Material：20#,45# Steel
• Maximum Stroke：2000mm
• Shaft Diameter：15500mm
• Color：Customer Requirement
• Seals Kit：Parker, Nok, Hallite or as Customer′s Require
• Application：Enhineering Machinery
• Certificate：ISO9001:2015; Ce
• Standard or Nonstandard：Nonstandard
• Body Material：Steel
• Mounting Style：Head Square Flange or Earing Mount
• Working Medium：Filtered Compressed Air
• Operating Temperature：30~80 Degrees Celsius
• Transport Package：Iron,Wooden Case and Container
• Trademark：GLIT or OEM
• Origin：China
• HS Code：8412210000
• Production Capacity：5000PCS,Month

Designed For

Double-acting/ Single acting

40,50,63,80,100,125,150mm

Stage

Single stage cylinder

Max inner tube

170mm,180mm,195mm,200mm,210mm,etc

Mounting distance

325mm/345mm/425mm or as cutstomers'requirements

Working Pressure

7Mpa, 16Mpa, 25Mpa, Optional

Stroke

14mm-10000mm

Tipping Weight

20-68Ton

Seal Type

Parker,NOK, BUSAK SHAMBAN or as customer's requirement

Piston Rod

Chrome or nickel plated,ground & polished piston rod

Tube

High tensile cold drawn tube, precision honed for extended seal life

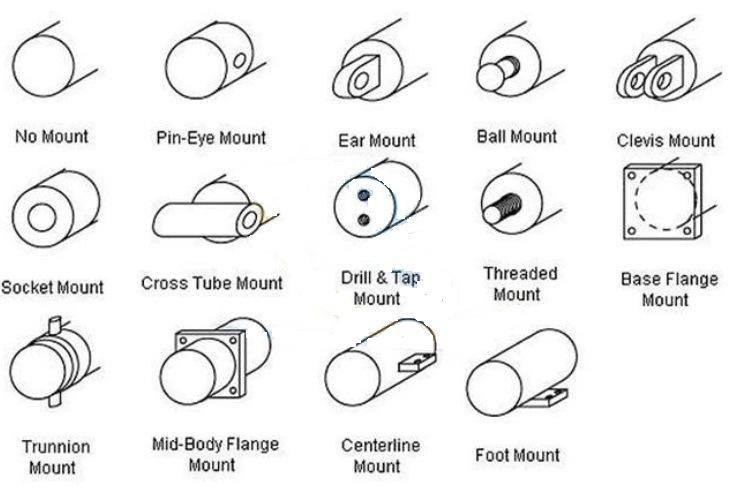

Mounting method:

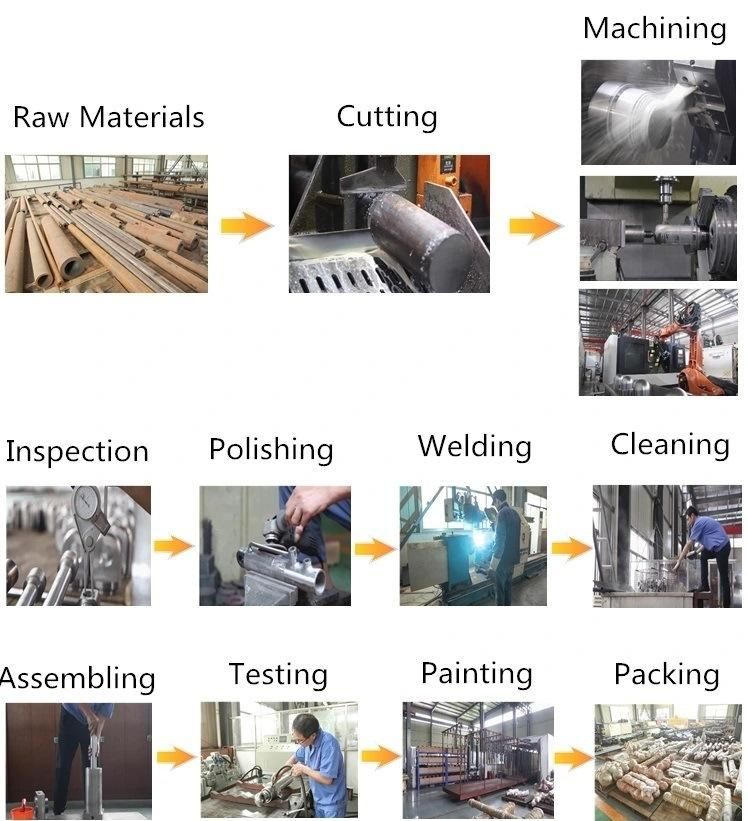

WORKING FLOW:

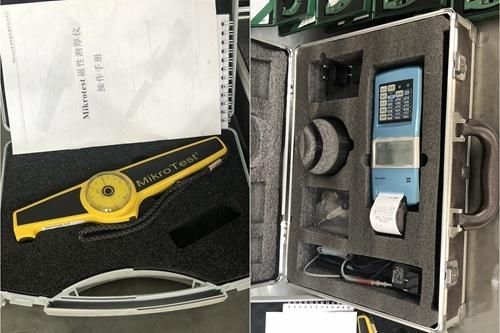

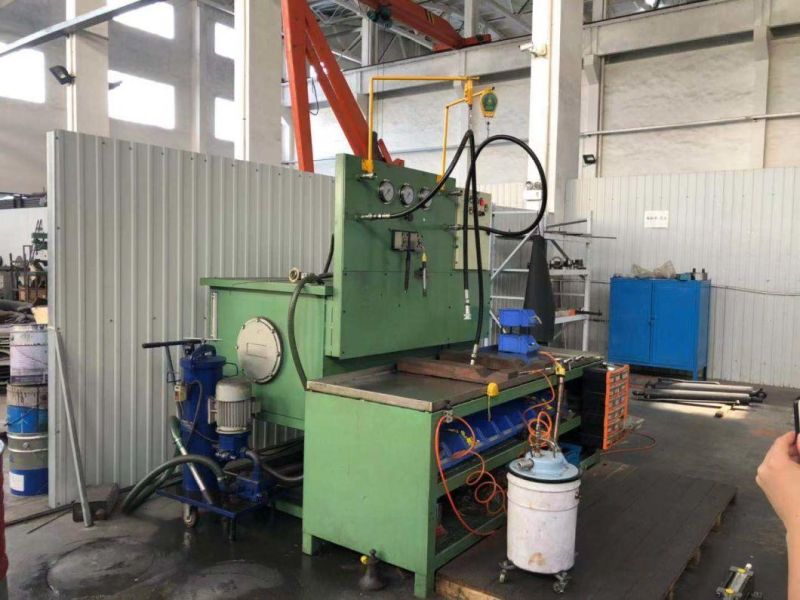

Testing:

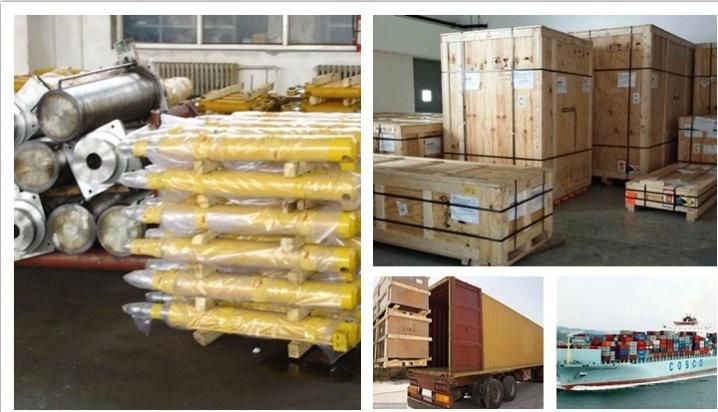

Packing & Delivery:

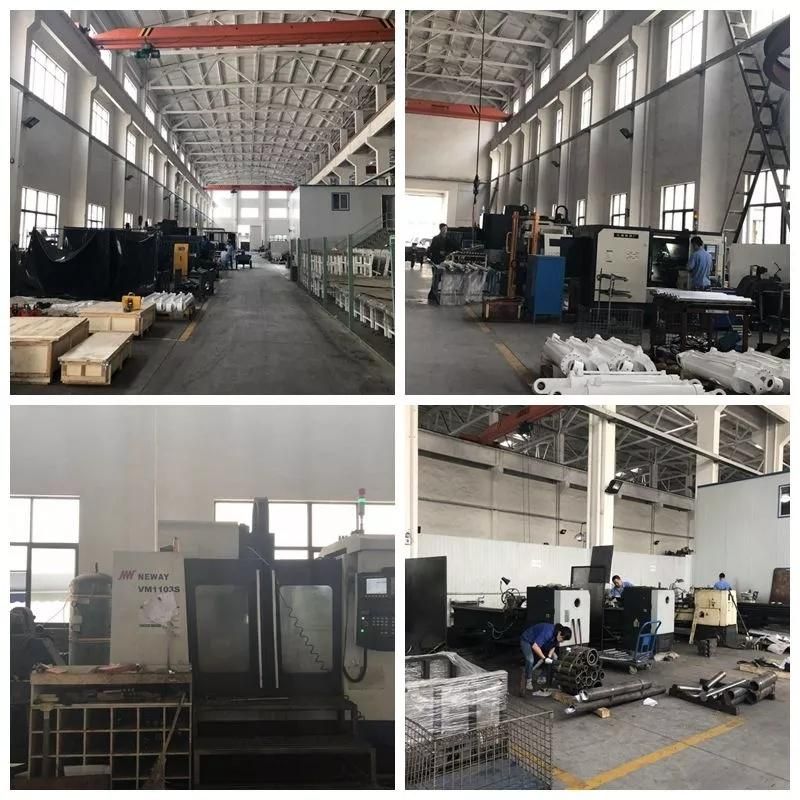

Our Factory:

Appliactions:

Application: Mobile Cranes, Trailer, excavator, log splitter, hydraulic press, garbage compactor,

lift platform, dock leveler

About US:

WUXI GLORIA INDUSTRIAL TECH Co., Ltd. is a leading Chinese company specializing in the manufacture of Hydraulic and pneumatic components.
High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customized products to solve any requirement of utilization. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.

If possible, when contact with us, please apply information as below

Bore

Rod

Stroke

Work Pressure

Mounting

Work environment

Or you can offer us your sketch diagram or photos so that we could understand you exactly meaning, help us avoid mistakes.

And if you have samples, we can manufacture according to your samples after sending to us.

Welcome to our factory if you have any time.

Your satisfaction is our biggest motivation.

Now, you can contact with us for any question or inquiry.


FAQ:

1, What does your company do?
A: we are a supplier of high quality hydraulic products including Hydraulic Cylinder, Hydraulic Motor, Hydraulic Power Pack, Hydraulic station and other Hydraulic components.

2, Are you a manufacture or a trading company?
A: We are a  manufacturer.

3, What certificate do you have?
A: All our factories are ISO certificated. And our main suppliers of materials and parts are with CE, RoHS, CSA and UL certificates.

4, How long is your delivery time?
A: The delivery time depends on different products and quantity. The cylinder usually need about 45-60 days and the Motor need about 20-30 days.

5, Can you make parts as customer's requirement or drawing?
A: Yes, we can OEM for you as your drawings. Our engineer also can give you professional support for technical suggestions.

6, What kind of payment terms do you accept?
A: We prefer T/T through bank. 40% when order is confirmed and 60% before shipment. L/C is also acceptable for amount over 20,000USD.

9, What is your warranty policy?
A: All our products are warranted for one full year from date of delivery against defects in materials and workmanship. This warranty does not cover parts that are worn out through the course of normal operation or are damaged through negligence. We serious remind that unclean hydraulic oil will definitely cause damage to your Hydraulic components. And this damage is not included in the warranty range. So we strongly suggest you to use new clean oil or make sure the system oil are clean when using our parts
