SAE Flange 3000 Psi ISO 12151-3---SAE J516
YUYAO RUIFENG HYDRAULIC CO., LTD.- Pressure：High Pressure
- Work Temperature：High Temperature
- Thread Type：External Thread
- Installation：Flared Type
- Type：Hydraulic Power Units
- Size: 04,06,08,10,12,16,20,24,32：Surface Finished: White or Yellow Zinc
Base Info
- Model NO.：87311, 87611, 87911
- Auxiliary Components：Pipe and Pipe Fittings
- Transport Package：Plastic Bag+Box +Pallet
- Trademark：OEM OR NO BRAND
- Origin：Ningbo, China
- HS Code：73079200
- Production Capacity：500000PCS,Month
Description
Basic Info.
Model NO. 87311, 87611, 87911 Auxiliary Components Pipe and Pipe Fittings Transport Package Plastic Bag+Box +Pallet Trademark OEM OR NO BRAND Origin Ningbo, China HS Code 73079200 Production Capacity 500000PCS/MonthProduct Description

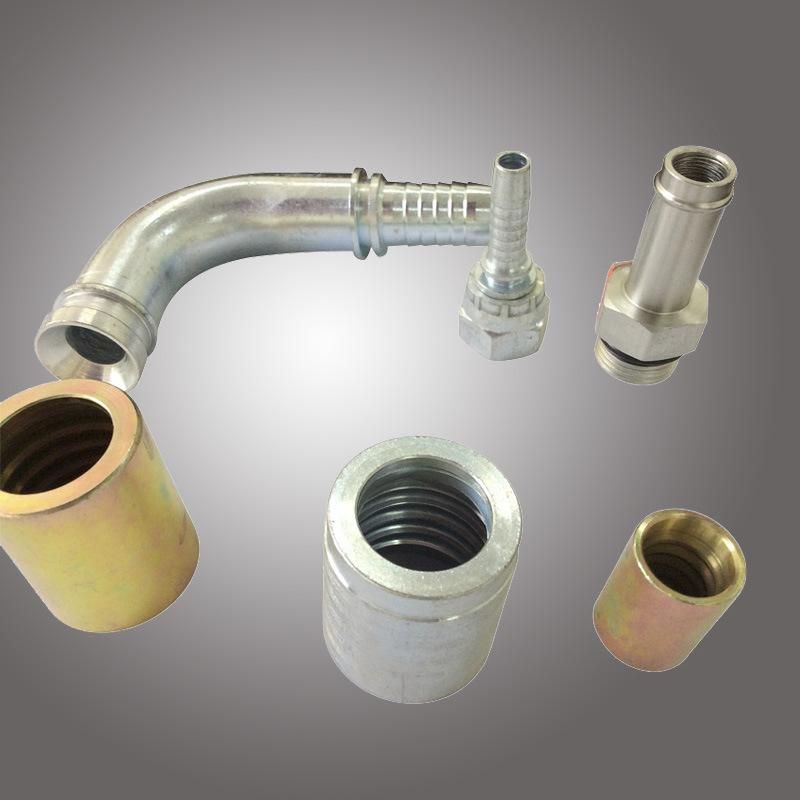

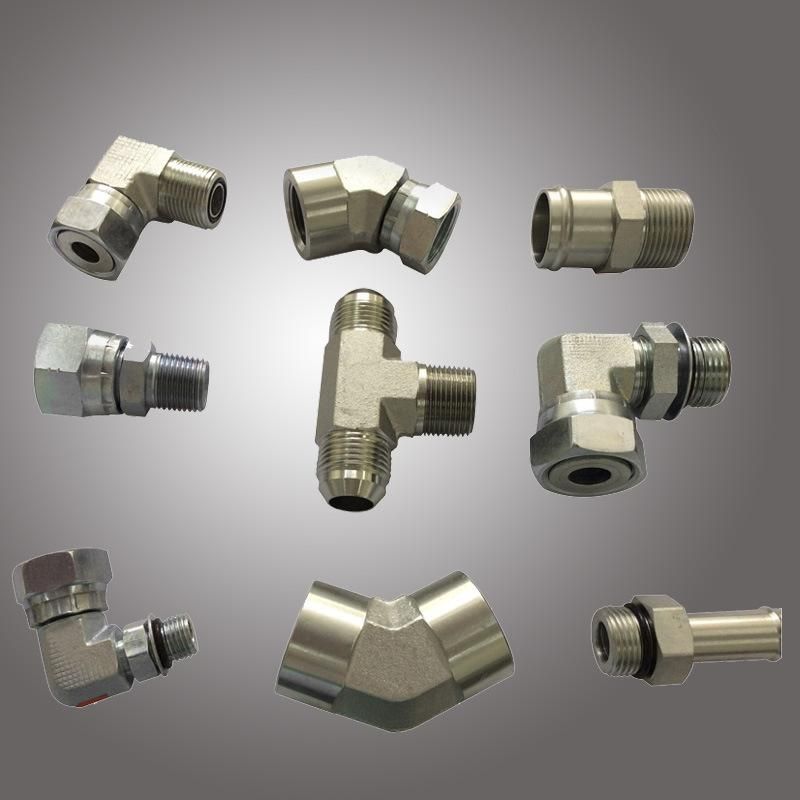

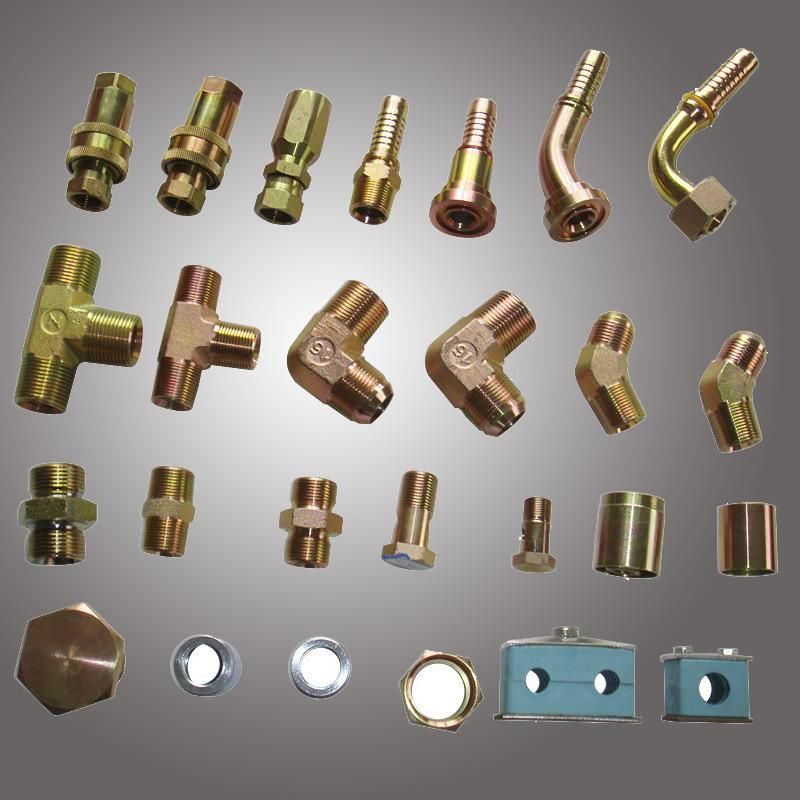

SAE FLANGE 3000 PSI ISO 12151-3---SAE J516Product name: Hydraulic fitting/ steel fitting/ hydraulic adapter/ American adapter / Stainless steel fitting/ Fitting/ Ferrule/Hose nipple
Our company manufacture and sale all kinds of hydraulic fittings, include all sorts of swaged Metric, British and American fittings and Banio fittings. They are used extensively in auto industrialized and purifying water equipment.
We can produce fittings as SAE and EATON standard.
Material: Brass, alloy aluminum, steel, stainless steel, carbon steel etc
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | L | ||
| 87311-08-08 | 1/2" | 12 | 08 | 46 | 30.2 | 24 | 6.73 |
| 87311-12-08 | 3/4" | 12 | 08 | 47 | 38.1 | 31.7 | 6.73 |
| 87311-12-10 | 3/4" | 16 | 10 | 48 | 38.1 | 31.7 | 6.73 |
| 87311-12-12 | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
| 87311-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 |
| 87311-16-12 | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 87311-16-16 | 1" | 25 | 16 | 52 | 44.4 | 38 | 8 |
| 87311-16-20 | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 |
| 87311-20-16 | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 |
| 87311-20-20 | 1.1/4" | 32 | 20 | 58 | 50.8 | 43 | 8 |
| 87311-24-20 | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 |
| 87311-24-24 | 1.1/2" | 40 | 24 | 68 | 60.3 | 50 | 8 |
| 87311-32-24 | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 |
| 87311-32-32 | 2" | 50 | 32 | 70 | 71.4 | 65 | 9.53 |
| 87311-40-40 | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87312-XX-XX. |
