China Eaton Orbital Motor 2000 4000 6000 Series, Danfoss Hydraulic Motor Oms Omt Omv, White Disc Valve Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：CE, ISO9001
- Excitation Mode：Hydraulic
- Power Rating：2500W
- Type：Hydraulic Motor
- Flow Structure：Disc Distribution Flow
- Internal Structure：Geroler Gear Set
Base Info
- Model NO.：2000 4000 6000 series
- Material：Cast Iron
- Max Speed：470rpm
- Max Torque：316nm
- Max Output：15.5kw
- Max Pressure：15MPa
- Flange：Square,Rhombic,Elliptical
- Diameter of Shaft：32mm,31.75
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：CE, CCC, ISO
- Trademark：Blince
- Origin：Dongguan, China
- HS Code：8412291000
- Production Capacity：1000 Units Per,Month
Description

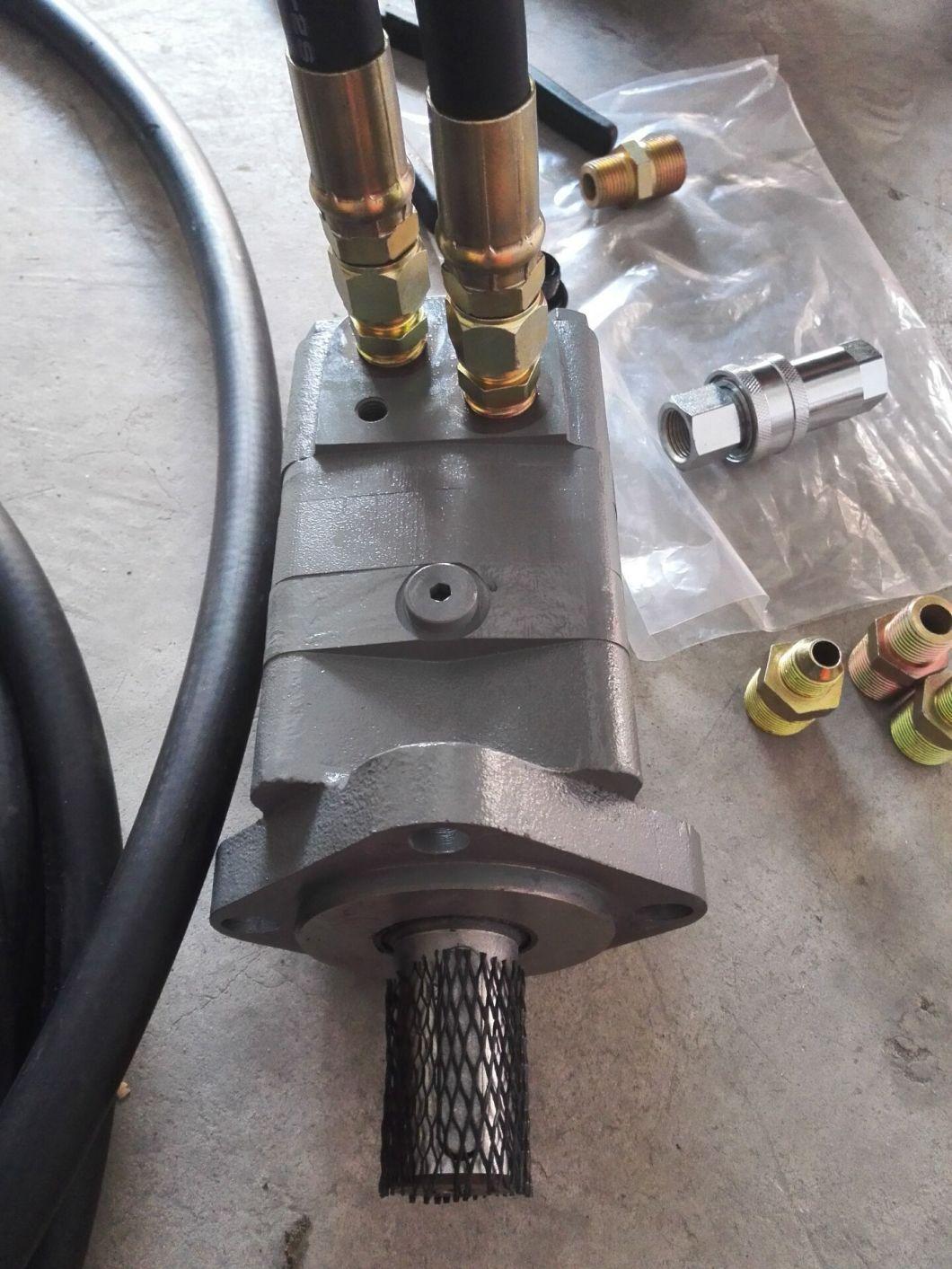

OMSY / OMSYS series Orbital Hydraulic MotorDisplacement 80cc,100cc,125cc,160cc,200cc,250cc,315cc,400cc,475cc Flange: E2: 2-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
E4: 4-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×6.3
F6: 6-Ø13.5 Rhomb-flange Ø106.4,pilot Ø82.5×2.6
W: 4-Ø13.5 Wheel-flange Ø160 ,pilot Ø125×8
E2B: 2-Ø14.3 Rhomb-flange Ø146.05,pilot Ø101.6×9.4
SP: 4-Ø11.5 Square-flange Ø106.4,pilot Ø82.5×6.3
D: 4-Ø11 Circle-flange Ø125 ,pilot Ø100×6
E: 4-Ø13.5 Square-flange Ø127 ,pilot Ø101.6×6.3 Output Shaft: A: Shaft Ø25 , parallel key 8×7×32
B: Shaft Ø32 , parallel key 10×8×45
D:Shaft Ø25.4 , parallel key6.35×6.35×25.4
G: Shaft Ø31.75 ,parallel key 7.96×7.96×31.75
F: Shaft Ø31.75 ,splined tooth 14-DP12/24
FD: Long Shaft Ø31.75 ,splined tooth 14-DP12/24
SL: shaft Ø34.85,Splined key 6-34.85×28.14×8.64
T1: Cone-shaft Ø35 ,parallel key B6×6×20
T3: Cone-shaftØ31.75 ,parallel key 7.96×7.96×31.75
S1: Shaft Ø25.4 ,splined tooth SAE 6B
I: Sub-shaft Ø22,splined tooth 13-DP16/32 Port and drain port: D: G1/2 Manifold Mount 2-M10 , G1/4
M: M22×1.5 Manifold Mount 2-M10 , M14×1.5
S: 7/8-14UNF O-ring manifold 2-3/8-16 , 7/16-20UNF
P: 1/2-14NPTF manifold 2-3/8-16UNC , 7/16-20UNF

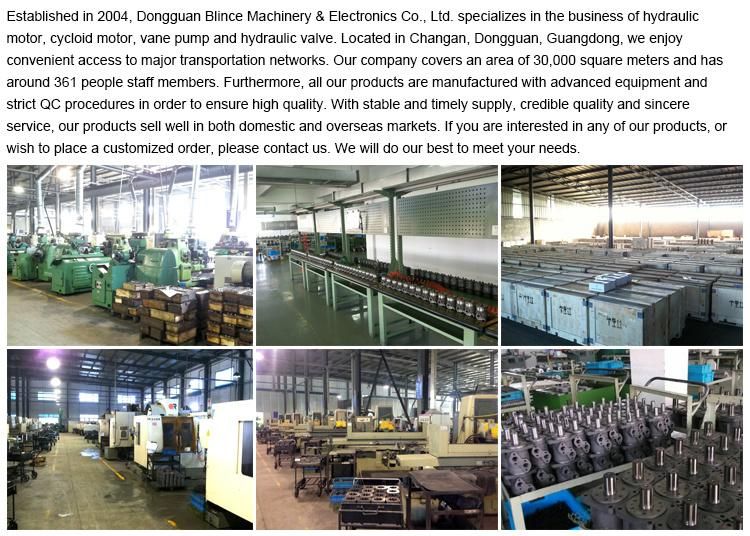

Company Introductions:

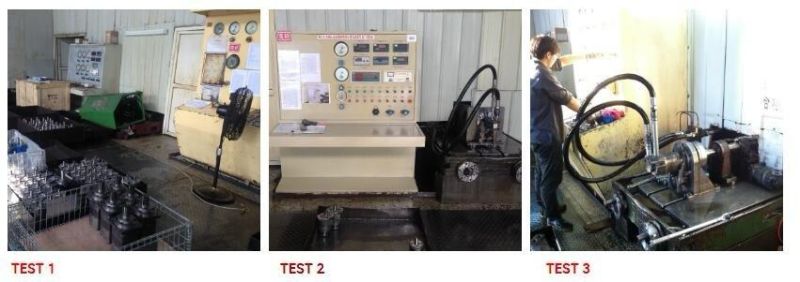

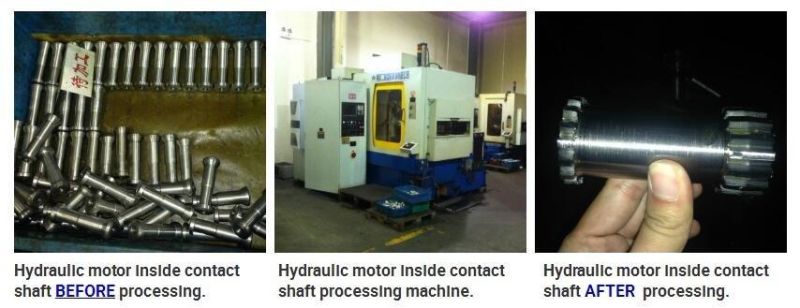

Testing machines
Packing & Delivery
Packaging Details: Size: 1.2 (L) *0.8(W) * 0.8 (D)
1. 30/50/100pcs wooden case
2. 100pcs plastic/wooden pallet.
3. 1 piece seperate weeden case.
Delivery
1. MOQ is 1pc, price is more favorable for large quantity.
2. Leading time is within 3days if have inventory. If don't, within 30days if the quantity is less than 500pcs.
3. DHL, UPS, FEDEX, TNTetc, usually 5-7 days to arrive.
4. By sea/air, FOB/CIF trade etc, is normally 20-30days.
Our warranty
1,sample service: samples can provide preferential.
2,customized services:a variety of motors can be customized according to customer demad.
3,Aftermarket service: according to consumer requirements, technical guidance on the useand other aspects.
In case of quality problems under normal use, free replacement within one year of free maintenance for life.
Payment terms
1,Small amount accept Paypal
2,Western Union
3,Large orders We usually accept T/T(with 30% deposit,the balance before shipment)

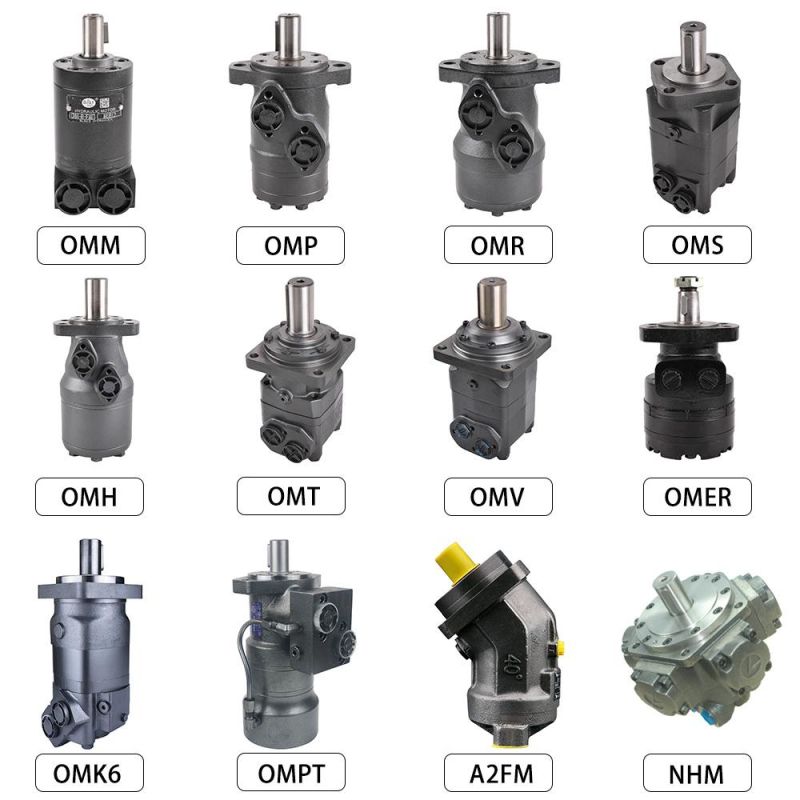

Related products:
