• Model NO.：4TG-F185*6000
• Rated Pressure：20MPa
• Lift Capacity：34-84t
• Certificates：ISO,Ts16949, ABS, API, SGS
• Delivery Time：20 Days
• The Largest Sleeve Od：244mm
• Mounting Distance：325mm
• Transport Package：Pallet, Wooden Case or as Customer′s Requirement
• Specification：CE
• Trademark：ODM , OEM , WTJX
• Origin：Shandong China
• HS Code：8412210000
• Production Capacity：200, 000sets,Year

Basic Info.

Model NO. 4TG-F185*6000 Rated Pressure 20MPa Lift Capacity 34-84t Certificates ISO/Ts16949, ABS, API, SGS Delivery Time 20 Days The Largest Sleeve Od 244mm Mounting Distance 325mm Transport Package Pallet, Wooden Case or as Customer′s Requirement Specification CE Trademark ODM / OEM / WTJX Origin Shandong China HS Code 8412210000 Production Capacity 200, 000sets/Year

Product Description

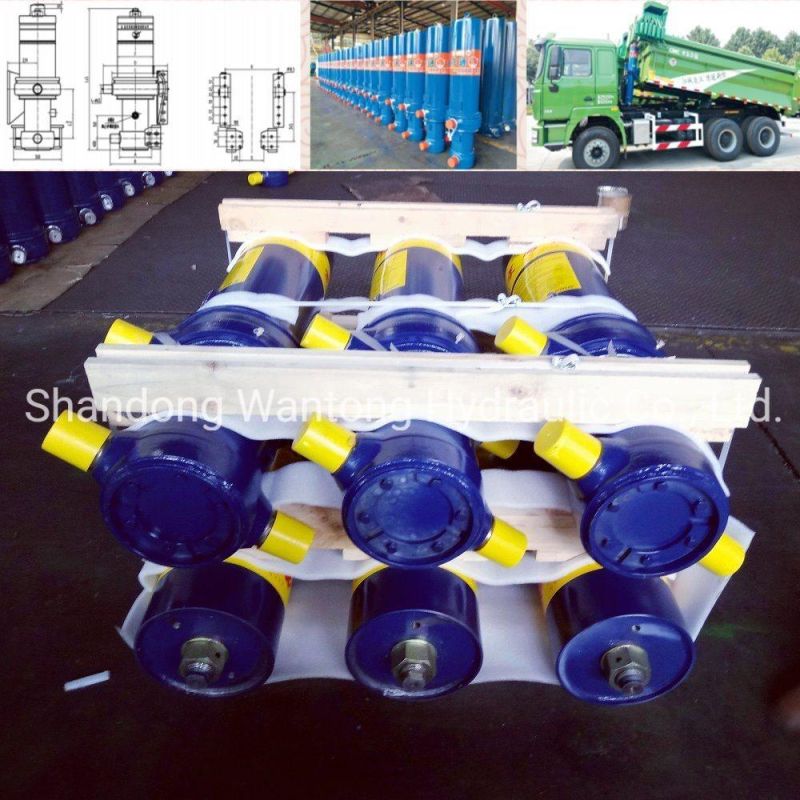

FC Front Lifting Type Hydraulic Cylinder for Tipping Truck

MODEL NO.	# of Stages	Largest Moving Stage Diameter(mm)	stroke(mm)	the largest sleeve OD(mm)	mounting distance(mm)
WTFC 4TG-E152*4280ZJ	4	152	4280	272	335
WTFC 5TG-E152*4280ZJ	5	152	4280	272	335
WTFC 4TG-E160*5390ZJ	4	160	5390	272	335
WTFC 4TG-F175*4280ZJ	4	175	4280	272	335
WTFC 4TG-F175*5390ZJ	4	175	5390	272	335
WTFC 4TG-F175*5700ZJ	4	175	5700	272	335
WTFC 5TG-F175*5390ZJ	5	175	5390	272	335
WTFC 5TG-F175*5700ZJ	5	175	5700	272	335
WTFC 4TG-F185*4650ZJ	4	185	4650	272	335
WTFC 4TG-F185*5000ZJ	4	185	5000	272	335
WTFC 4TG-F185*5700ZJ	4	185	5700	272	335
WTFC 4TG-F185*6180ZJ	4	185	6180	272	335
WTFC 5TG-F185*5000ZJ	5	185	5000	272	335
WTFC 4TG-F200*6000ZJ	4	200	6000	272	335
WTFC 5TG-F200*6500ZJ	5	200	6500	272	335
WTFC 4TG-F175*4280BH	4	175	4280	244	325
WTFC 4TG-F175*4650BH	4	175	4650	244	325
WTFC 4TG-F175*5390BH	4	175	5390	244	325
WTFC 4TG-F185*5700BH	4	185	5700	244	325
WTFC 4TG-F185*6000BH	4	185	6000	244	325
WTFC 4TG-F185*6180BH	4	185	6180	244	325
WTFC 4TG-F200*6000BH	4	200	6000	244	325
WTFC 4TG-F175*4280JT	4	175	4280	244	325
WTFC 4TG-F175*4650JT	4	175	4650	244	325
WTFC 4TG-F175*5390JT	4	175	5390	244	325
WTFC 4TG-F200*5700JT	4	200	5700	272	325
WTFC 4TG-F200*6180JT	4	200	6180	272	325
WTFC 4TG-F175*4450HT	4	175	4450	244	345
WTFC 5TG-F200*6180AF	5	200	6180	272	325

Company profile

*History: 22 Years of history, the registered capital of 60 million yuan

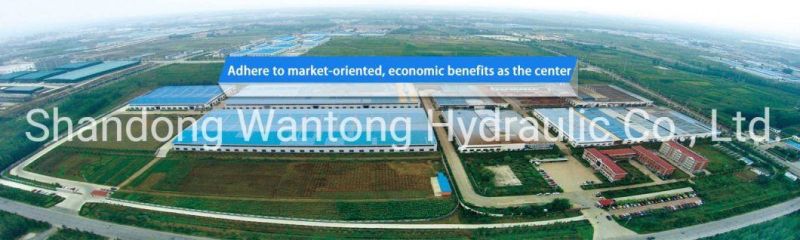

*Scale: 180000 square meters,with 500 employees
*Capacity:Annual production of more than 200,000 sets
*Equipment:700set ,invested a large amount of money in introducing one electroplating production line.
*Certificate:ISO9001,ISO/TS16949,ABS,AQA etc
*Delivery time:20 Days
*Service:52 Service Outlets nationwide,24-hour Service
*Accept Custom




Type & Description

Cylinder Tube O.D.	203mm--274mm
Operating Pressure	16-20Mpa
Numbers of Stage	3,4,5
Largest Moving Stage Diameter	110mm--254mm
Stroke	4280mm--6180mm;
Closed Length	1195mm-- 1945mm
Extended Length	5475mm--8125mm
Oil port	G1/1"SAE
Warranty Period	14 months after date of production
Upper Gear width	245-270mm
Lower Gear width	340-360mm
Shaft Coarse	65,60
Installation distance	325-335mm

Product Line



Certificate





Quality guarantee system

Program before Delivery

1. Trial Operation Test

2. Start-up Pressure Test

3. Pressure-Tight Test

4. Leak Test

5. Full Stroke Test

6. Buffer Test

7. Testing the Effect of Limit

8. Load Efficiency Test

9. Reliability Test

Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test

Guarantee and after sale service:
>7 x 24 hours technical support through email
>Goods will be delivered safely on time
>Warranty within 14 months of production date
>Life long time track service




Why Wantong?

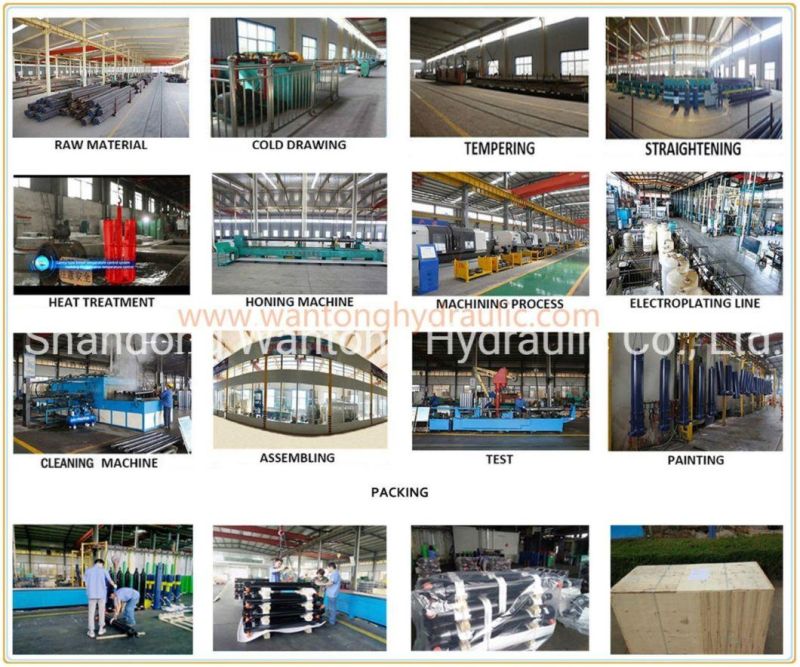

1.Complete Manufacturing Processes:
The company has complete and total manufacturing processes from raw material entering to factory and up to the final finished products to customer.Which all are done under same premises.Therefore we can control the quality and delivery time at our best.

2.Strict Quality Control system:
We have gained ISO/TS16949, CCRI, CCS, and DNV AND ABS, API,etc and the quality of the products has been controlled in strict accordance with the certification standard.

3.Rich Market Experiences:
Many years cooperation with famous brands,likeSINOTRUK,CIMC,SHACMAN,ZMJ and YANKUANG GROUP

FAQ:

Q1: Are you a manufacture or a trade company?
Answer: Manufacture, we are the leader manufacturer of hydraulic industry in China with 20 years experience and technology.

Q2: Do you have quality control system?
Answer: Yes, The quality management system introduced is: ISO/TS 16949:2009-certified by NQA and IATF cert.

Q3: How can i get a booklet and buy a cylinder from you?
Answer: Very easy! Just leave me a message or email and tell me your requirement, let me know you are interesting in our products.I will talk with you for the details soon!

Q4: Can you tell me the price for the cylinder?
Answer:
1. Please help inform your drawing with detail requirement.
2. Please help inform the cylinder NO. after you check our booklet.
3. Please help inform the tipping capacity, strokes, number of stages, closed length, mounting type and size and other information.
4. Please also help inform the quantities, this is very important.
5. Your destination port.

Q5: Do your products come with a warranty?
 Answer: Yes, we have one year warranty. In this year, if the quality problem we will free repair for you.

Q6: Can I customize our products from you?
 Answer: Yes, we can make products according to your requirements. Please kindly send me your specifications and drawings.

Q7: Can you help me to install or give me advice about what kind of hydraulic cylinder or power pack should I use for specific machine?
 Answer: Yes, we have 25 experienced engineers who are always ready to help you. If you do not know what kind of hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need.

Q8: What is the delivery time?
Answer: Within 15 days for samples.
20 days for mass production, which is depend on quality, production process and so on.

Q9: What is your main payment itme?
 Answer: T/T and L/C.
