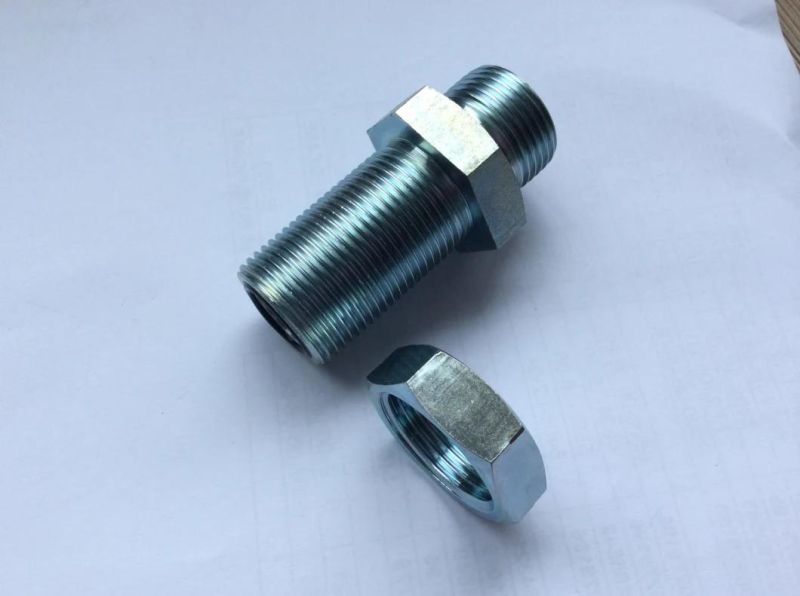

Orfs to Orfs Bulkhead Union

YUYAO RUIFENG HYDRAULIC CO., LTD.

Pressure：High Pressure
Work Temperature：High Temperature
Thread Type：External Thread
Installation：Welded
Material：Carbon Steel
Type：Hydraulic Power Units

Base Info

Model NO.：FS2700
Size: 03,04,05,06,08,10,12,16,20,24,32：Surface Treatment: White or Yellow Zinc
Auxiliary Components：Pipe and Pipe Fittings
Transport Package：Plastic Bag+Box +Pallet
Specification：SGS
Trademark：OEM OR NO BRAND
Origin：Ningbo, China
HS Code：73079200
Production Capacity：500000PCS,Month

Description

Dimension:inch

ITEM	P/N	T1(UNF-2A)	L	T2(UNF-2A)	W	C HEX
1	FS2700-04-04	9/16-18	1.900	9/16-18	0.270	0.812
2	FS2700-06-06	11/16-16	2.090	11/16-16	0.310	1.000
3	FS2700-06-08	11/16-16	2.240	13/16-16	0.350	1.125
4	FS2700-08-06	13/16-16	2.200	11/16-16	0.350	1.125
5	FS2700-08-08	13/16-16	2.300	13/16-16	0.350	1.125
6	FS2700-10-10	1-14	2.620	1-14	0.410	1.312
7	FS2700-12-12	1 3/16-12	2.720	1 3/16-12	0.410	1.500
8	FS2700-16-16	1 7/16-12	2.760	1 7/16-12	0.410	1.750
9	FS2700-20-20	1 11/16-12	2.760	1 11/16-12	0.410	2.000
10	FS2700-24-24	2-12	2.760	2-12	0.410	2.375

Orfs to Orfs Bulkhead Union
