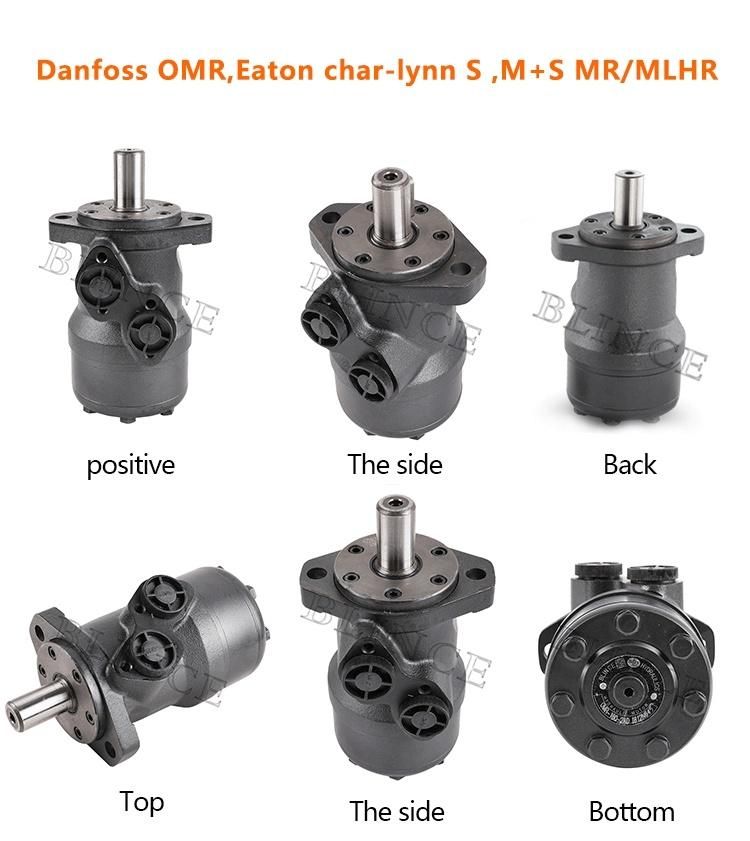

High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Certification：ISO9001 Ce
  • Power Rating：1500W
  • Speed：High Speed
  • Type：Hydraulic Orbit Motors
  • Brand Name：Blince
  • Model No：OMR50,80,100,125,160,200,250,315,375 Orbit Motor

Base Info

  • Model NO.：OMR160-2-A-D
  • Place of Origin：Guangdong, China (Mainland)
  • Max Speed：1085~155 [Rpm]
  • Max Torque：72~365[N.M]
  • Max Pressure：7.0~17.5[MPa]
  • Material：Cast Iron
  • Colour：Gray and Black
  • Hydraulic Power Units：Gear Pump
  • Transport Package：Sale Packing Contians Carton or Wood Case
  • Specification：CE
  • Trademark：Blince
  • Origin：Guangdong Province, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：3000pieces,Month

Description

Type OMR
36OMR
50OMR
80OMR
100OMR
125OMR
160OMR
200OMR
250OMR
315OMR
375Displacement (cc/rev)3651.781.5102127.2157.2194.5253.3317.5381.4Max speed
 rate (rpm)
 cont1085960750600475 378310240190155int12201150940750600475385300240190Max torque
(N.m)cont72100195240300360360390390365int83126220280340430440490535495Max output
(KW)cont8.59.512.513.012.512.510.07.06.05.0int9.811.215.015.014.514.013.09.59.08.0Max pressure
Drop(Mpa)cont14.01417.517.517.516.5131197int16.517.52020202017.5151310Max.flow
(L/min)cont40506060606060606060int.45607575757575757575Weight(kg)6.56.76.977.37.68.08.59.09.5
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160

High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160
High Power Gerotor OMR 160 Hydraulic Motor for Drilling Rig Hydro Motor 160

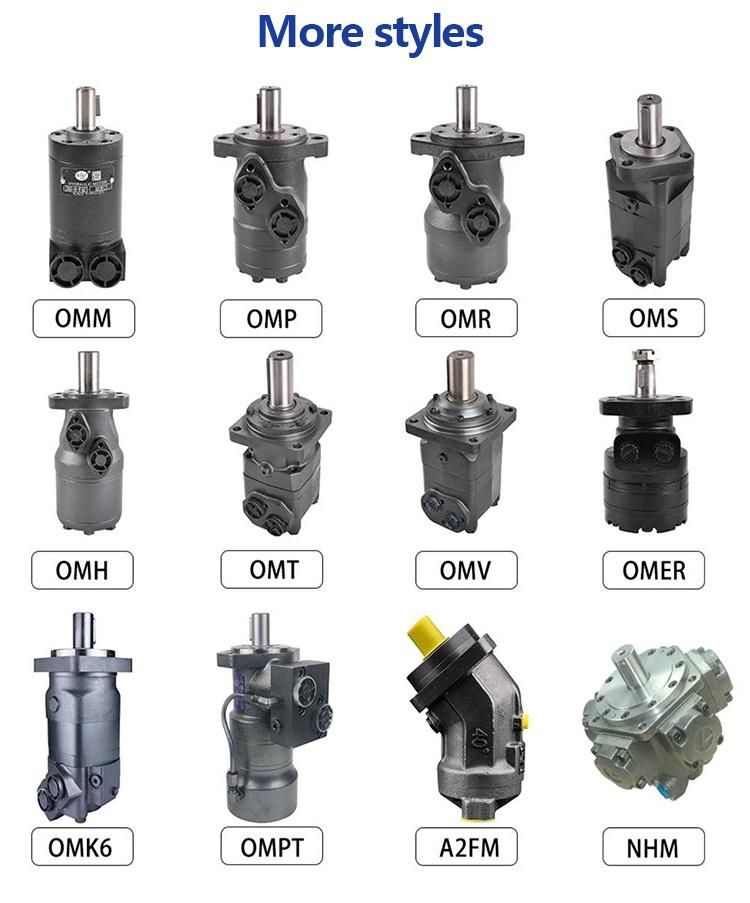

Blince profssion supply all series hydraulic motor like:

OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps.
If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
