• Model NO.：MCR05
• Type：Hydraulic Motor
• Series：Rexroth MCR05 Hydraulic Wheel Motor
• Hydraulic Fluid：Synthetic Hydraulic Oil
• Hydraulic Motor：Piston Hydraulic Motor
• Hydraulic Power Units：Piston Pump
• Transport Package：Standard Export Wooden Case.
• Specification：CE, SGS
• Trademark：Helm Tower
• Origin：Ningbo, China
• HS Code：8412291000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. MCR05 Type Hydraulic Motor Series Rexroth MCR05 Hydraulic Wheel Motor Hydraulic Fluid Synthetic Hydraulic Oil Hydraulic Motor Piston Hydraulic Motor Hydraulic Power Units Piston Pump Transport Package Standard Export Wooden Case. Specification CE, SGS Trademark Helm Tower Origin Ningbo, China HS Code 8412291000 Production Capacity 500PCS/Month

Product Description

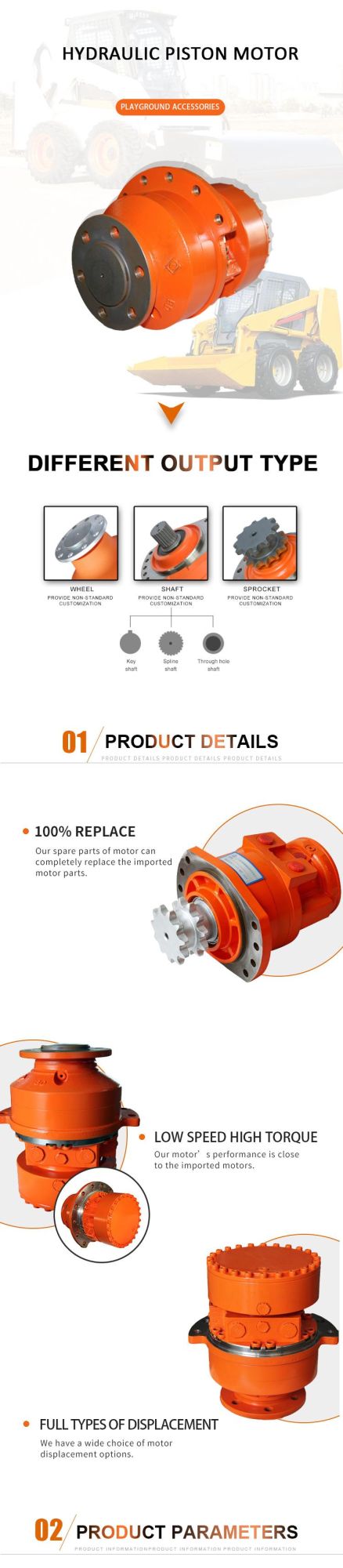

MCR05 Hydraulic Piston Motor:
1) Incurve radial piston type.
2) Designed in control modules, combine freely.
3) High efficiency, High pressure, low noise.
4) Radial piston, Low speed, High torque.
5) With 10 years' manufacturing experience, our products can completely replace the original Poclain MS series hydraulic motors well.

MCR05 Hydraulic Motor Applications:
Mining Machinery: Coal Winning Machine, Road Header, Heavy Duty Handling Car, Coal Mine Drill.
Engineering Machinery: Skid Steer Loader, Break Machine.

The main products we manufacture:
Rexroth MCR Series Motors: MCR03, MCRE03, MCR05, MCRE05, MCR10, MCRE10 motors & related spare parts.
Poclain MS Series Motors: MS02, MSE02, MS05, MSE05, MS08, MSE08, MS11, MSE11, MS18, MSE18, MS25, MS35, MS50, MS83, MS125 motors & related spare parts.

Type	MCR05-380	MCR05-470	MCR05-520	MCR05-565	MCR05-680	MCR05-750
Displacement(ml/r)	380	470	520	565	680	750
Continuous output power(kw)	29	29	29	29	35	35
Differential pressure 10Mpa torque(Nm)	604	748	827	899	1082	1194
Rated torque(Nm)	1419	1756	1942	2111	2540	2802
Pressure rating(Mpa)	25	25	25	25	25	25
Max. pressure(Mpa)	40	40	40	40	40	40
Max. speed(rpm)	220	220	220	220	220	170
