• Model NO.：Rexroth S Series
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-80 Celsius Degree
• Material：Casting iron, steel
• Porting Pattern：ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0
• Throttle Control Type：Meter in Control, Meter out Control
• Medium Viscosity Range：28-500mm2,S
• Cracking pressure：0.5bar, 1.5bar, 3bar, 5 bar
• Transport Package：Cartons and Pallets
• Specification：6, 8, 10, 15, 20, 25, 30
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. Rexroth S Series Fluid Mineral Oil or Phospate Ester Temperature Rang -30-80 Celsius Degree Material Casting iron, steel Porting Pattern ISO 4401-05-04-0-05, Nfpa T3.5.1 R2, ANSI B93-7 D0 Throttle Control Type Meter in Control, Meter out Control Medium Viscosity Range 28-500mm2/S Cracking pressure 0.5bar, 1.5bar, 3bar, 5 bar Transport Package Cartons and Pallets Specification 6, 8, 10, 15, 20, 25, 30 Trademark Longli Origin China HS Code 8412299090 Production Capacity 10000PCS/Month

Product Description

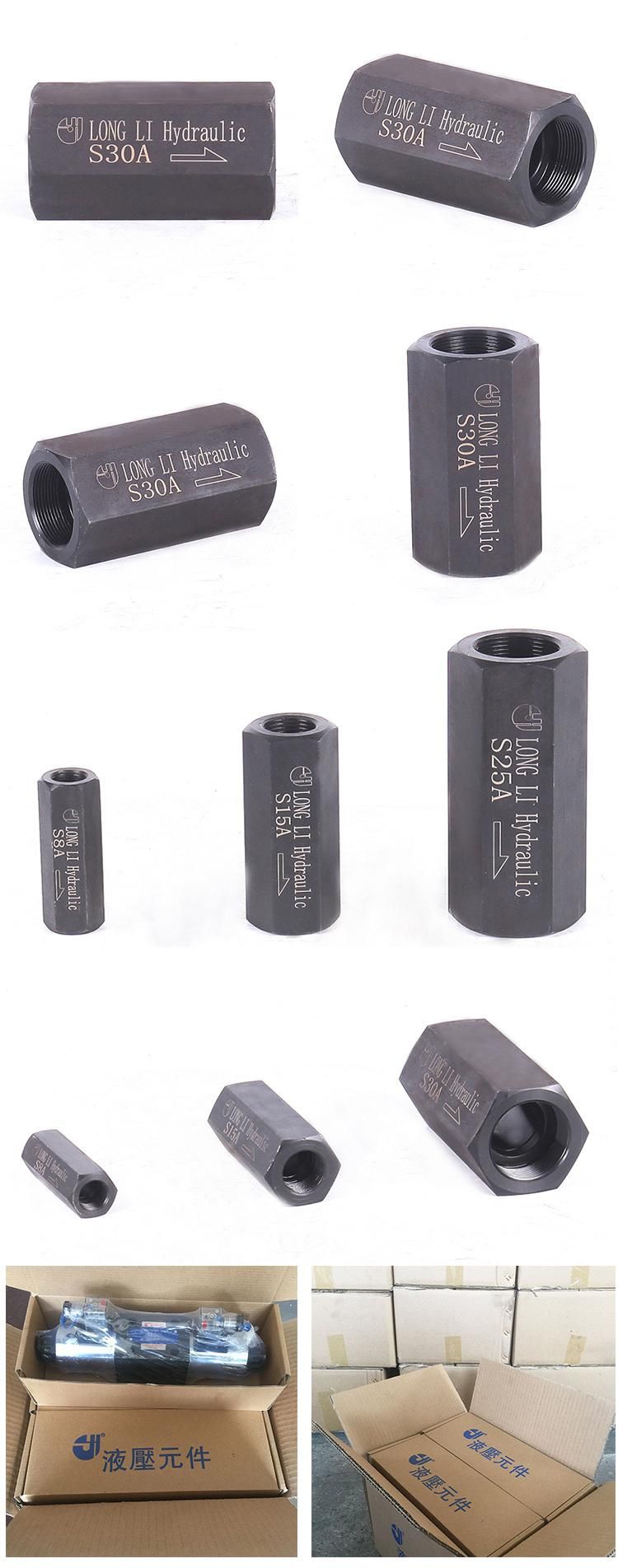

Rexroth S series Hydraulic Threaded Poppet Check Valve



Rexroth S series threaded connection check valve which function is a hydraulic oil flow in one direction only, the check valve can not reverse the direction of the Flow Control Valve.

It works the same with the Hydraulic Check Valve, compressed into the hydraulic oil from the p port to overcome the spring force and friction to make the valve port opens, and release the pressure to the oil reservoir, some used for back up pressure as keeping the pressure in line.

It also called non return valve, allows hydraulic oil flow in one direction but not the reverse direction of the flow. The valve works with hydraulic pilot operated check valve. Hydraulic System hydraulic oil through Hydraulic Pump increases the pressure and flows into the P port of entry, to overcome the spring force and the friction of the one way valve open, the hydraulic oil flows to T from P.
When the P port hydraulic oil in the spring force is same with T port oil force, the valve turns off, so from T to P should no leakage.

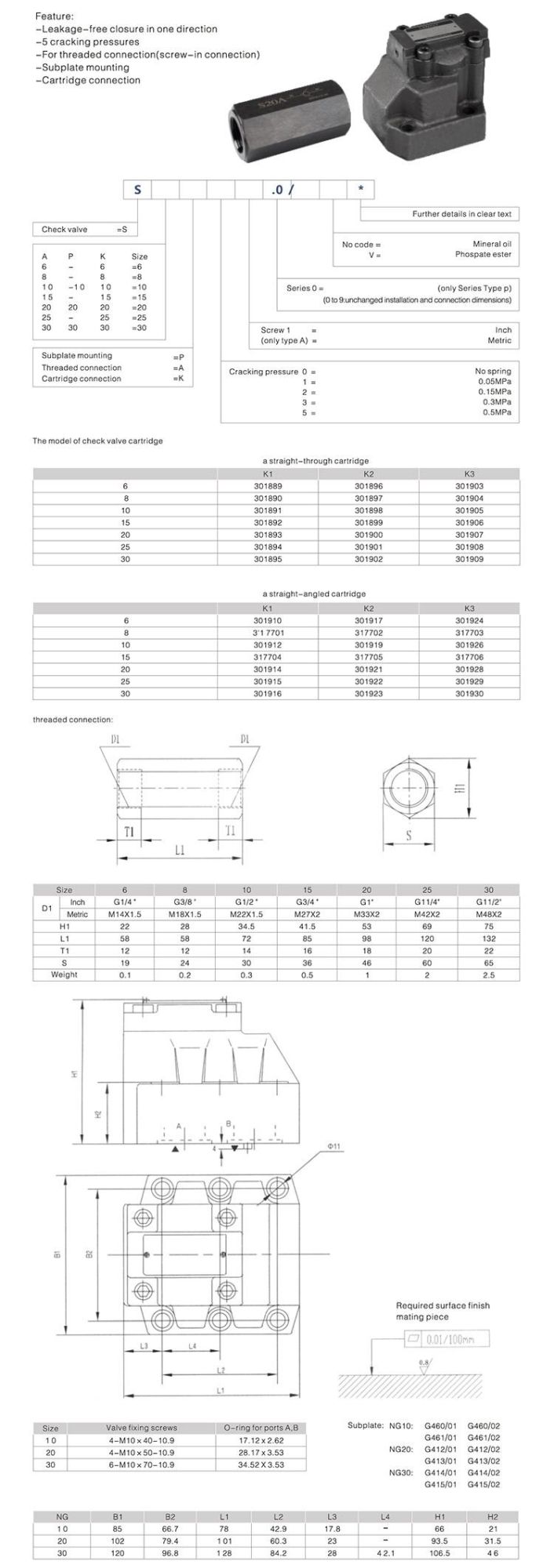

Technical Parameter:

Product description:: Rexroth S series threaded check Valve
BSP threaded connection:: G1/4" G3/8'' G1/2'' G3/4'' G1'' G1-1/4 inch
Metric threaded connection:: M14x1.5mm M18x1.5mm M22x1.5mm M27x2mm M33x2mm M42x2mm
Max. operation pressure:: 315bar
Cracking pressure:: 0.5bar, 1.5bar, 3bar, 5 bar
Max. flow rate:: 18L/min 36L/min 60L/min 150L/min 250L/min 350L/min
Working temperature:: -30/+80ºC
Recommended medium filtration:: Class9 NAS 1638 at min. filter fineness β≥105
Medium viscosity range:: 28-500mm2/S
Valve net weight: 0.10kg 0.2kg 0.3kg 0.5kg 1kg 2kg



Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
