• Model NO.：151B3016
• HS Code：8412291000
• Production Capacity：500000 Pieces

Shaft StyleTapered - Cone 1:10Shaft Size45 mm tapShaft KeyB12 x 8 x 28 mm (DIN 6885)Port StyleSide portPort DimensionG 3/4Drain Port StyleStandardDrain Port DimensionG 1/4PaintedNoneGeometric Displacement410,9 [25.07]Max Inlet Pressure Cont210 [3050]Max Inlet Pressure Int250 [6330]

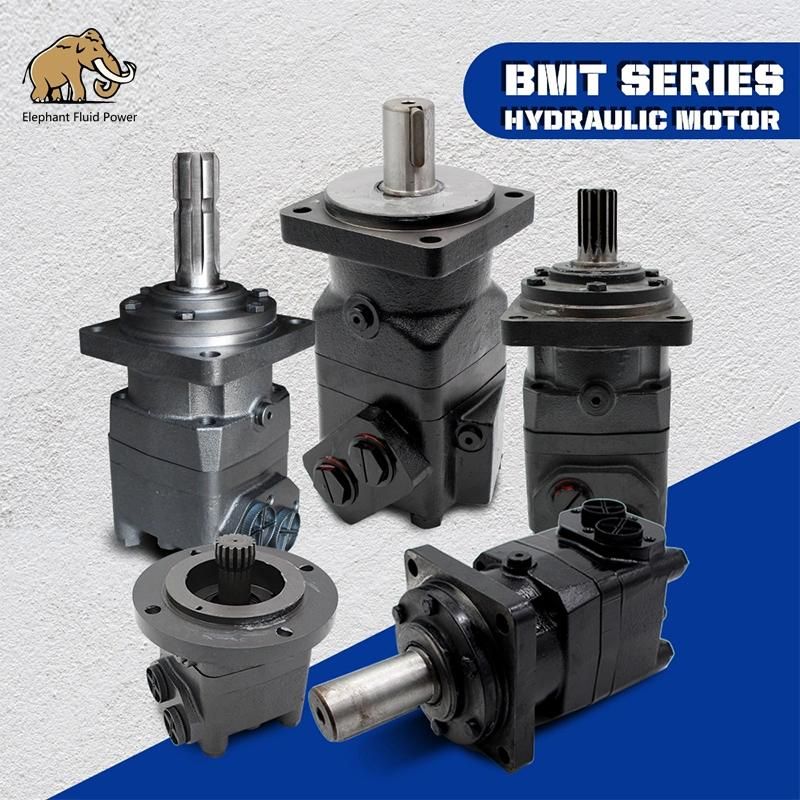

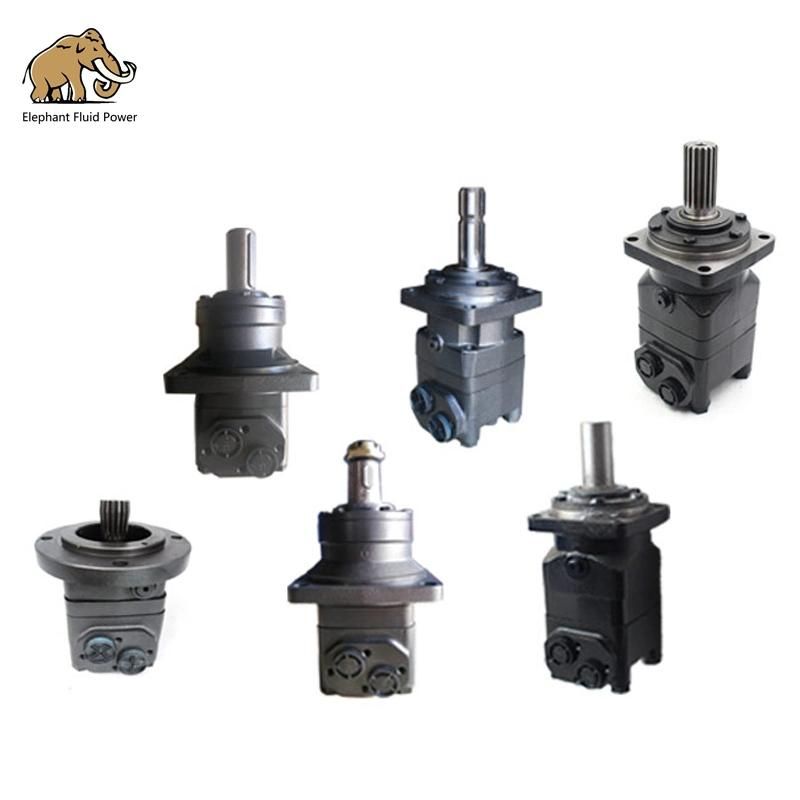

Orbital Motors



We provide a wide range of hydraulic motors of different types, sizes, and with different versions of outlet shaft. The range includes motors with displacements from 8 to 1000 cc/rpm. The speed may vary approximately from 2500 rpm/min for the smallest motor up to 600 rpm/min for the largest one.



Orbital motor for heavy applications.Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. BMT has internal flush valves.
