Danfoss OMR 200 Cc/Rev High Speed Orbit Hydraulic Motor

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Certification：CE, ISO9001
  • Speed：High Speed
  • Type：Hydraulic Motor
  • Code：OMR36,50,80,100,125,160,200,250,315hydraulic Motor
  • Max Speed：Contin155~1250rpm
  • Max Torque：Contin 72~365 N.M

Base Info

  • Model NO.：OMR36~OMR375
  • Output Shaft：25mm,32mm,25.4mm Parallel Key, Splined Key
  • Flange：Circle-Flange, Rhomb-Flange
  • Motor of Material：Cast Iron
  • Application：MID-Size Machinery and Equipment
  • Assignment Forms：Axial Flow
  • Fuel：Synthetic Hydraulic Fluid
  • Item：Hydraulic Power Unit
  • Transport Package：Sale Packing Contians Carton or Wood Case
  • Specification：high speed hydraulic motor
  • Trademark：Blince
  • Origin：Guangdong, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：100000 PCS,Year

Description

OMR Series Orbital Hydraulic Motor

ModelOMR36,50,80,100,125,160,200,250,315,400Mounting Flange:2 Flange: 2 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5× 8
4 Flange: 4 bolts Ø 13.5 Rhomb-flange, pilot Ø 82.5*8
H4 Flange: 4 bolts 3/8-16 Square-flange, pilot Ø 44.4× 2.8
H5 Flange: 4 bolts M10 Square-flange, pilot Ø 44.4× 2.8Output Shaft:A Shaft: Shaft Ø 25, parallel key 8X7X32
B Shaft: Shaft Ø 32, parallel key 10X8X45
C Shaft: Shaft Ø 25.4, parallel key 6.35X6.35X31.75
E Shaft: Shaft Ø 25.4, splined tooth SEA 6B
R Shaft: Short shaft Ø 25.4, parallel key6.35X6.35X31.75
F Shaft: Shaft Ø 31.75, splined tooth 14-DP12/24
FD Shaft: Long shaft Ø 31.75, splined tooth14-DP12/24
G Shaft: Shaft Ø 31.75, parallel key 7.96X7.96X31.75
T Shaft: Cone shaft Ø 28.56, parallel key B5X5X14Port and drain port:D port: G1/2 Manifold Mount 4× M8, G1/4
M port: M22× 1.5 Manifold Mount 4× M8, M14× 1.5
S port: 7/8-14 O-ring manifold 4X5/16-18UNC, 7/16-20UNF
P port: 1/2-14 NPTF Manifold 4X5/16-18UNC, 7/16-20UNF
R port: PT(RC)1/2 Manifold 4xM8, PT(RC)1/4Rotary directionStandard
Reverse
OtherSpecial functionDanfoss OMR 200 Cc/Rev High Speed Orbit Hydraulic Motor

Related Products:

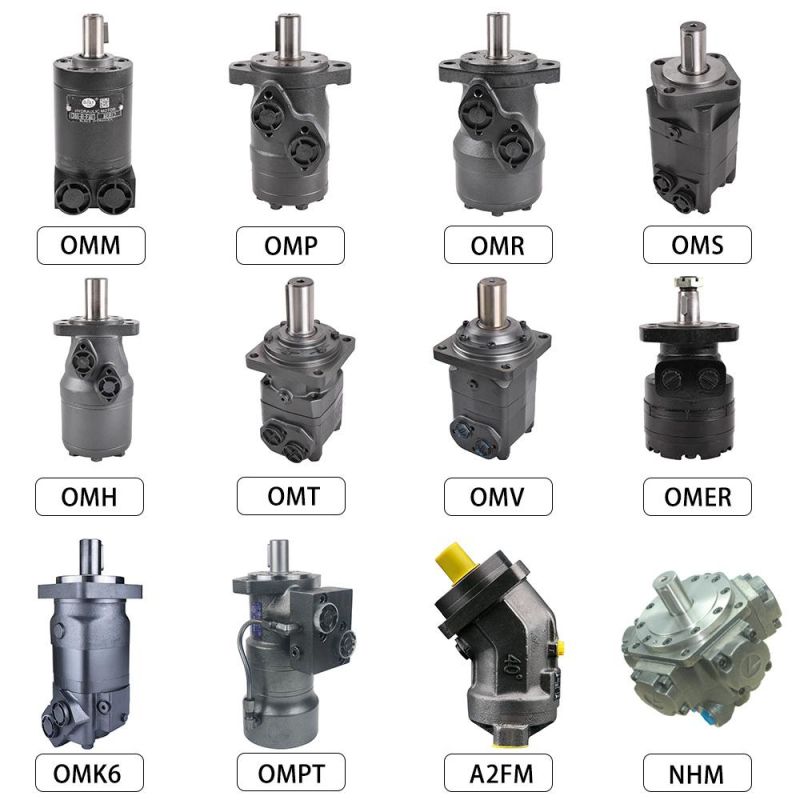

BLINCE hydraulic motor can substitue for:
Sauer-Danfoss orbit motor  OML/ OMM/OMP/ OMR/ OMH/ OMEW/ OMS/ OMT/ OMV
White orbit motor  WP/WG/WR/RS/DR/RE/CE/HB/WS/D9 series
Parker orbit motor  OMP/TC/TB/TE/TH/TF/TL/TG/OMS/OMT
Eaton Char Lynn orbit motor  J/JH/JS/2K/6K/J6K/10K
M+S orbit motor  MLHM/MP/MR/MH/MS/MT/MV
SAM orbit motor  BG/BR/BS/AR/HR/HT
Brevini orbit Motor  BG Series
Japen OPN ORB-GS Series
