• Model NO.：zt20
• HS Code：8481802990
• Production Capacity：100000,Sets

Ambient temperature-40C...+60CViscosity12 ...800 mm2/sFluid temperature-15C...+80CFiltration10 to NAS 1638Max operating pressure250barBack pressure50 barNominal flow90 l/minLeakage(A,B-T)15cm3/min at 120barSpool stroke6 mmActuating force< 200 NModification/ Spools2spools





Specifications



• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 2
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = 90 liters/min (24 Gallons per Minute)
• Max Working Pressure = 315 Bar (4725 PSI)
• Built in Relief Valve = Adjustable (factory set at 1800 PSI)
• Ports Sizes Pressure and Tank Port 1/2" BSPP   A & B Ports 3/8" BSPP
• Operating temperature range: -20 °C to + 80°C
• Weight 6 KG



This a High Quality Valve and has many outstanding features, including.

• built in adjustable relief valve
• high performance,
• high efficiency,
• small volume,
• mass flow,
• leak resistance.

In additional to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic and or remote control methods are also available including.

• Motor Spool
• Detent kit no spring return
• Detent kit with spring return
• Pneumatic spool control,
• Hydraulic Control
• Electric-solenoid control
• Joystick cable control.

Features

• Compact construction.
• Low pressure drop.
• Long service life.
• High efficiency.
• Choice of various ports and circuit valves.
• Spring return.
• High accuracy spool is hardened for long term accuracy.
• Sub-plate mounting.
• Handle shift operation.

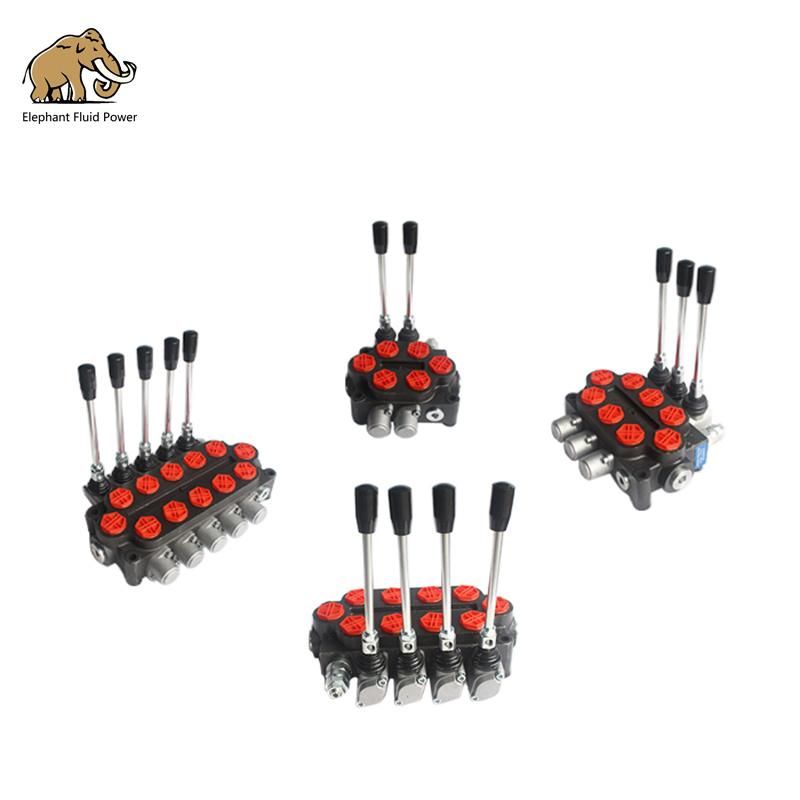

Elephant Fluid Power have more distributor hydraulics (Directional control valve) for you, we produce, manufacture, export, provide you with high quality, low price products, our products are very competitive, no matter what control method (Control type: manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic, etc.) you need, any flow (40 liters - 140 liters available), any size (1 spool to 12 spool available), Please contact us for the best offer.
