SAE J517 R1//R5/R8/R13 High Pressure Hydraulic Rubber Tube
Qingdao Rising Rubber Co., Ltd.- Certification：GS, CE, ISO9001
- Pressure：High Pressure
- Work Temperature：High Temperature
- Feature：Wear-Resistant, Tear-Resistant, Heat-Resistant, Weather Resistant,Aging Resistant
- Material：Natural Rubber
- Surface：Smooth or Wrapped
Base Info
- Model NO.：1,4"-2"
- Applicant：Excavating Machines,Truck,Automoblie
- Temperature：-40 Degree Celsius to 100 Degree Celsius
- Reinforcement：High Tensile Steel Wire Braid
- Norms：DIN En 853
- Length：20, 40, 50, 100 Meter
- Place of Origin：Qingdao,China
- Tube：Oil Resistant Synthetic Rubber
- Quality Guarantee：12 Months After Delivery
- Color：Black, Blue, Red, Yellow
- Transport Package：PVC Packing
- Specification：3,16"-4"
- Trademark：RISING
- Origin：Qingdao, China
- HS Code：40092100
- Production Capacity：60000 Meter Per Month
Description
Burst PressureMin. Bend Radius Weight Length inch mm mm MPa psi MPa psi mm kg/m metres 5 3/16" 4.8 13.4 41.4 6000 165 23720 89 0.32 50/100 6 1/4" 6.4 15 40 5800 160 22840 102 0.36 50/100 8 5/16" 7.9 16.6 36 5250 140 20000 114 0.45 50/100 10 3/8" 9.5 19 33.1 4800 132 18840 127 0.54 50/100 13 1/2" 12.7 22.2 27.6 4000 110 15720 178 0.68 50/100 16 5/8" 15.9 25.4 25 3630 100 14280 203 0.8 50/100 19 3/4" 19 29.3 21.5 3120 85 12280 241 0.94 50/100 25 1" 25.4 38 16.5 2400 65 9420 305 1.35 50 32 1 1/4" 31.8 48.3 12.5 1820 50 7140 419 2.15 20/40 38 1 1/2" 38.1 54.6 9 1310 36 5140 508 2.65 20/40 51 2" 50.8 67.3 8 1160 32 4560 635 3.42 20/40

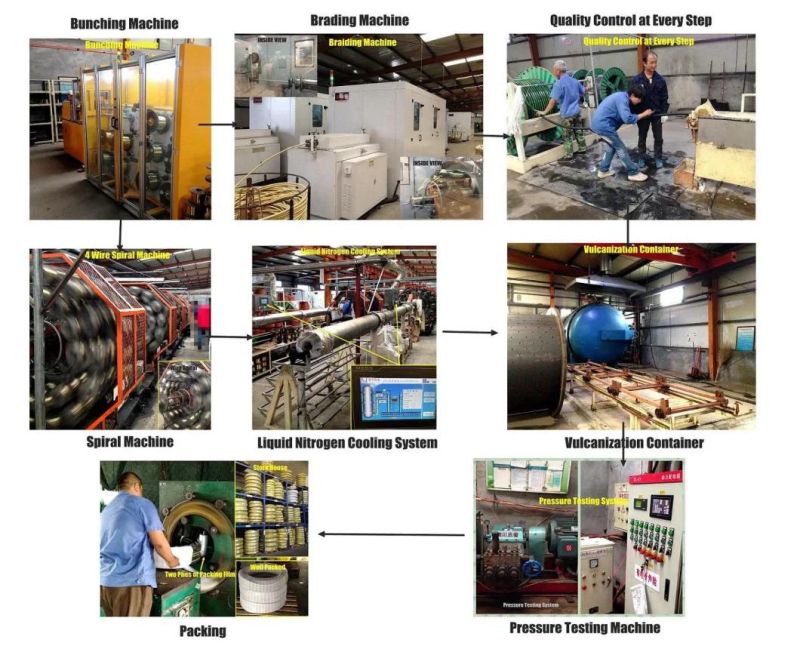

PRODUCING PROCESS
---show you how our hose is produced. Visit our factory online.
Packing & Delivery
Certification
Our products are certificated with ISO and CE,the quality is reliable and can help you develop the market and customer in this field .
Company information
RISING RUBBER, as a professional manufacturer and exporter with experience of 10 years, offers a broad range of Hydraulic Hose, Air Hose, Fuel Hose, Suction & Discharge Hose, Sand Blasting Hose, various PVC Hoses, Fittings and relative products to suit different types of applications.
Designed in compliance with international quality standards (SAE, DIN, ISO), our range of products is an outcome of persistent endeavors to attain maximum client satisfaction.
Our hydraulic hose production lines include HIGH-SPEED and HIGH-TECH bunching machines, braiding machines, and LIQUID NITROGEN COOLING SYSTEM, which promotes our capacity to 150 000 meters per month and quality far ahead of competitors. A comprehensive laboratory offers inspection covering all production process from raw material, semi-finished, to finished products and lasting to quality tracibility system after sale.
Today, we have a distinguished client list in the construction, mining & earthmoving industries. With strict quality control system and annual production capacity of 4 million meters, our products are also reaching foreign shores through markets in the Europe, North America, East Asia and other areas.
We believe our success is tied directly to the profitable growth and satisfaction of our customers. So if interested, do not hesitate to contact us.
We have full series of SAE and EN standard, including:
Wire braided: SAE R1/DIN EN 1SN, SAE R2/DIN EN 2SN, SAE R16, SAE R17
Wire spiral: SAE R9, R12, R13, DIN EN 4SP, DIN EN 4SH
Textile braided: SAE R3, SAE R6, SAE 5
Teflon: SAE R7, SAE R8
INDUSTRIAL HOSE
Air hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Water hose--WP 20 bar/300 PSI, BP 60 bar/ 900 PSI. 50-100M per roll.
Suction hose--Water suction hose, water discharge hose, oil suction hose, oil discharge hose.
Sand blast hose--High abrasion resistant tube.
Welding hose--Oxygen hose, Acetylene hose, Propane hose, Twin hose
PVC HOSE
PVC Steel Reinforced Hose--for water suction and conveying.
PVC Fiber Reinforced Hose--For food grade liquid.
PVC Helix Suction Hose--plastic spiral reinforced.
PVC Garden Hose--for home and agriculture usage.
PVC Layflat Hose--agriculture irrigation and industry watering.
CONVEYOR BELT
STEEL CORD CONVEYOR BELT
MULTI-PLIES TEXTILE CONVEYOR BELT
PVC FLAME RESISTANT CONVEYOR BELT
PVG FLAME RESISTANT CONVEYOR BELT
PU HOSE--High abrasion resistant to dust.
HOSE FITTINGS
HOSE PROTECTOR
SILICONE HOSE
RADIATOR HOSE
FAQ ( Frequently Asked Question)
1. Is sample available? Shall I pay for sample or delivery?
Free samples and free delivery.
2. How long will I get my order?
General production time for 1x20 feet container is 10-15 days, for 1x40 feet container 20-25 days.
3. How will my order be packed?
All hose is packed by 2 plies of PVC film, inner is tranparent, outer is color and thick one. (Color can be ordered as customer like). Special packing like Reel and Pallet also available. Fitting is packed by 3 plies, carton, PVC bag and then pallet.
4. What should I do if I find quality problem in using?
12 months Quality Garentee for all of our products. We offer replacement for any defective caused by non-human reasons.
5. Is it possible to visit your factory?
We warmly welcome you to visit our factory at any of your convenient time.
6.what king of rubber hose do you have?
RISING RUBBER, as a professional manufacturer and exporter with experience of 10 years, offers a broad range of Hydraulic Hose, Air Hose, Fuel Hose, Suction & Discharge Hose, Sand Blasting Hose, various PVC Hoses, Fittings and relative products to suit different types of applications.
shoud any item draw your attention,please click below to make an inquiry.
.
