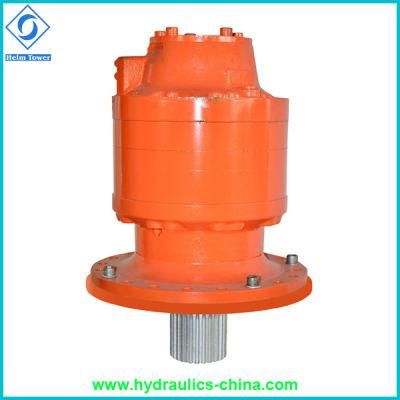

Hydraulic Piston Motor Rexroth MCR03 MCR3 Series for Sale
Ningbo Helm Tower Noda Hydraulic Co., Ltd.- Certification：ISO9001
- Excitation Mode：Hydraulic Motor
- Power Rating：Hydraulic Motor
- Casing Protection：Hydraulic Motor
- Number of Poles：Hydraulic Motor
- Speed：Low Speed
Base Info
- Model NO.：MCR03 MCR3
- Type：Plunger Type
- Brand Name：Helm Tower
- Transport Package：Standard Export Package
- Specification：Carton or Wooden box
- Trademark：Helm Tower
- Origin：China(Mainland)
- HS Code：8412291000
- Production Capacity：4800 Set,Sets , Month
Description
MCR03-225MCR03-255 MCR03-280 MCR03-325 MCR03-365 MCR03-400 Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi Full Semi 255 125 255 125 280 140 325 160 365 180 400 200 Max power(kw) 18 12 18 12 18 12 22 14 22 14 22 14 Pressure discrepancy 10MPa Torque 405 202 405 202 445 222 517 258 580 290 636 318 Rated compressor(MPa) 25 Max Torque(N. m)
(Full displacement) 1386 1570 1760 1875 2105 2307 Max pressure(MPa) 40 40 40 40 40 40 Rated speed (r/min) 320 280 260 240 240 240 Speed range(r/min) 10-400 10-360 10-330 10-310 10-280 10-260 Application
As revolution mechanism of hydraulic system, used for forklift, skid steer loaderskid steer loader, grab, metallurgy mine equipment, shipping port equipment, hydraclic winch, etc.
(Full displacement)
As revolution mechanism of hydraulic system, used for forklift, skid steer loaderskid steer loader, grab, metallurgy mine equipment, shipping port equipment, hydraclic winch, etc.
