Directional Solenoid Hydraulic Valve M-Sew6 for Harvester Rekith Brand
JIANGSU JIAYITE HYDRAULIC COMPONENT CO., LTD.- Function：Reversing
- Installation：Plate
- Drive：Electric
- Type：Directly Operated Type
- Max Working Pressure：420,630bar
- Max Flowing：25L,Min
Base Info
- Model NO.：M-SEW6
- Transport Package：Standard Carton or Plywood Package
- Trademark：Rekith
- Origin：China
- HS Code：8481201090
- Production Capacity：1000 Pieces,Month
Description
Overview
Fixing position Optional Environment temperature ºC -30 to +50 (NBR seal) -20 to +50 (FKM seal) Weight Two two-way solenoidic directional valve kg 1.5 Two three-way solenoidic directional valve kg 1.5 Two four-way solenoidic directional valve kg 2.3 Max.operation pressure Port P,A,B bar 420 Port T bar 100 Max.flow L/min 25 Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -30 to +80 (NBR seal) -20 to +80 (FKM seal) Viscosity range mm²/s 2.8 to 500 Degree of contamination Maximum permissible degree of fluid contamination: Class 9.NAS 1638 or 20/18/15, ISO4406 Voltage type DC AC (only by Z5 rectifier plug) Available voltage V 12,24,110,205,220 110,220 Allowed voltage (deviation) % ±10 Required power W 30 Continuous power-on time % 100 Switching frequency Time/h up to 15000 IP rating as per DIN 40050 IP65 Max.coil temperature ºC 150 Switching time in compliance with ISO6403 Pressure
bar flow
L/min DC AC 50Hz on/ms(without oil tank pressure) off/ms on/ms(without oil tank pressure) off/ms U C D Y U,C D,Y U C D Y U,C D,Y 140 25 25 30 25 30 10 10 30 40 30 40 35 35 280 25 25 30 25 30 10 10 35 45 35 45 40 40 320 25 25 35 25 35 10 10 35 50 35 50 40 40 420 25 25 35 25 35 10 10 40 50 40 50 50 50 500 25 25 40 25 40 10 10 40 55 40 55 55 55 600 25 25 40 25 40 10 10 40 55 40 55 55 55 FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data
bar
L/min

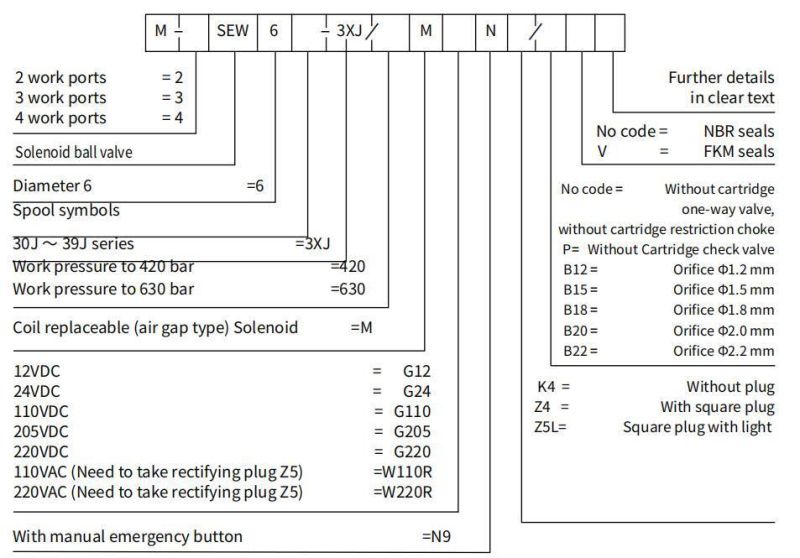

Ordering code
