• Model NO.：LL248
• Fluid：Mineral Oil or Phospate Ester
• Temperature Rang：-30-120 Celsius Degree
• Protection to DIN：IP65
• Certificate：ISO9001
• Transportation：Ocean,Land,Air,Express
• Transport Package：Cartons and Pallets
• Specification：G, M, SAE Thread Standards
• Trademark：Longli
• Origin：China
• HS Code：8412299090
• Production Capacity：4000PCS,Month

Basic Info.

Model NO. LL248 Fluid Mineral Oil or Phospate Ester Temperature Rang -30-120 Celsius Degree Protection to DIN IP65 Certificate ISO9001 Transportation Ocean,Land,Air,Express Transport Package Cartons and Pallets Specification G, M, SAE Thread Standards Trademark Longli Origin China HS Code 8412299090 Production Capacity 4000PCS/Month

Product Description

Custom Simple Hydraulic Control System



The design of the LL248 Hydraulic Manifold Block from Longli answers to the complex and flexible requirements in the area of lifting technology.

LL248 control blocks, solutions for lifting-lowering controls:

They are tailored solutions for lifting-lowering controls which are, depending on the control block, load-dependently, load-independently or proportionately controlled. Applications include, for example, scissor-lift platforms, small lift trucks and pallet trucks. The permissible load is secured by means of an integrated Pressure Relief Valve.

Moreover, the 2/2 two-way pilot valve possesses a manual emergency lowering with self-actuating reset. A built-in return valveprevents uncontrolled lowering. A measurement connection is provided for easy pressure measurement. In addition, a flange connection of the block to an optionally deliverable connection plate is possible.

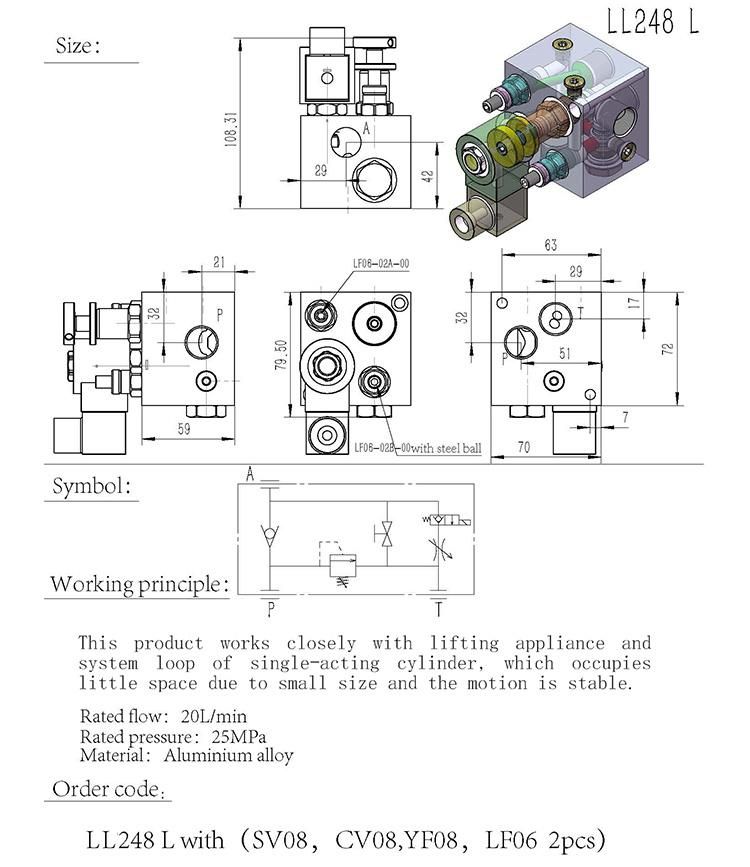

Model: LL248
Place of Origin: Shandong,China (Mainland)
Materials available: Aluminum alloy
Working pressure: 250bar
Different threads: Standard or indicated
Quality tested: All products are be tested
Treatment: Black galvanized, zinc plated, or indicated
Customized: Depends on the drawings or samples
Product group: Hydraulic accessories for valves sandwich mounting

Why Choose Us
1. With 30 years experience of hydraulic components in china.
2. Best manufacturing machinery, quality level, best price, best service.
3. We have very good and comprehensive after-sales service.
4. We have no MOQ for clients and tailor0made to clients request for our huge inventory.

Our Service
Pre-sale service: we provide presales in our first cooperation make clear your situation and give you some advice.
In-sale Service: We will track the production progress and quality, check the exact model and quantity one by one before delivering.
After-sale Service: We will provide a one year free warranty and lifetime maintenance. We will change all questions in 7*24hours if you buy from us.

Packing
Eternal Brand, Neutral or Customer's requires label.
Neutral carton or same as the Customer's requires, export standard carton.
All cartons should be packed into the pallets more carefully.
All of the productions are inspected carefully one by one by QC before delivery.

Payment term:
T/T 50% as deposit in advance, the balance should be paid before delivery.100% L/C is acceptable. Western Union and PayPal is acceptable.
Transportation: By sea; By air; By truck; By express (DHL,TNT,UPS,FEDEX)
Trading term: FOB,CFR,CIF
