Blince Omph160-H4kp Replace Eaton 101-1004-009 Hydraulic Motor
Dongguan Blince Machinery & Electronics Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Excitation Mode：Excited
- Power Rating：2000W
- Casing Protection：Protection Type
- Number of Poles：4
- Speed：High Speed
Base Info
- Model NO.：H SERIES MOTOR
- Type：Hydraulic Motor
- Structural：Hydraulic Cycloid Motor,Hydraulic Orbit Motor
- Usage：Hydraulic Oil
- Shaft Type：Parallel Key,Splined Tooth,Woodruff Key,Pin Hole
- Material：Cast Iron
- Flange Type：Rhomb-Flange,Square-Flange
- Application：Medium and Low Duty Tasks
- Auxiliary Components：Oil Filter
- Flow Distribution：Axial Distribution Type
- Diameter of Shaft：25.4mm,25mm,22.22mm Staright
- Hydraulic Power Units：Vane Pump
- Transport Package：Plastic Tube +Carton+Wooden Pallets
- Specification：ISO9001
- Trademark：Blince
- Origin：Guangdong, China (Mainland)
- HS Code：8412291000
- Production Capacity：1000 Sets Per Month Meet Your Requirment
Description
TypeOMPH
36 OMPH
50 OMPH
80 OMPH
100 OMPH
125 OMPH
160 OMPH
200 OMPH
250 OMPH
315 OMPH
400 OMPH
500 Geometric displacement
(cm3/rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5 Max.speed (rpm) con. 1500 1150 770 615 490 383 310 250 192 155 120 int. 1650 1450 960 770 615 475 385 310 240 190 150 Max.torque (N.m) cont. 55 100 146 182 236 302 360 380 375 360 385 int. 76 128 186 227 290 370 440 460 555 525 560 peak 96 148 218 264 360 434 540 550 650 680 680 Max.output (KW) cont. 8.0 10.0 10.0 11.0 10.0 10.0 10.0 8.5 7.0 6.0 5.0 int. 11.5 12.0 12.0 13.0 12.0 12.0 12.0 10.5 8.5 7.0 6.0 Max.pressure
Drop (Mpa) cont. 12.5 14 14 14 14 14 14 11 9.0 7.0 6.0 int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 14 14 10.5 9.0 Max.flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60 int. 60 75 75 75 75 75 75 75 75 75 75 Net Weight(kg) 5.6 5.6 5.7 5.9 6.0 6.2 6.4 6.7 6.9 7.4 8.0
OMPH series motor are small volume, economical type, which is designed with shaft distribution flow,
Which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
Characteristic features
* Advanced manufacturing devices for the Gerotor gear set, which provide small volume, high efficiency and long life.
* Shaft seal can bear high pressure of motor of which can be used in parallel or in series.
* Advanced construction design, high power and low weight.
Blince OMPH series high speed orbital motors
Key data:
1) Displacement range 36 to 500 cc
2) Speed up to 1650rpm/min
3) Torque up to 680N? M
4) Output up to 13.0kW
5) Pressure drop up to 22.5MPa (225bar)
6) Flow up to 75 l/min [19.8 US gal/min]
7) Pilot diameter Ø 82.5 [3.25 in]
8) Mounting flnge A2/A4
9) Output shaft Ø 25.4mm / Ø 25mm / Ø 22.22mm cylindrical shaft [1 inch cylindrical shaft]
10)Port connection G1/2, G1/4 / 7/8-14[7/16-20UNF] / 1/2-14[7/16-20UNF] / 3/4-16[7/16-20UNF] / PT(RC)1/2, PT(RC)1/4 / Ø 10 O-ring[4X5/16-18UNC, 7/16-20UNF] / Ø 10 O-ring manifold 4xM8[7/16-20UNF]
Benefis
* High power density
* High effiency
* High constant quality
* Reliable
The Blince OMPH series motors are used in the following application areas
1) Construction equipment
2) Agricultural equipment
3) Material handling & Lifting equipment
4) Forestry equipment
5) Lawn and turf equipment
6) Special purpose
7) Machine tools and stationary equipment
8) Marine equipment
BLINCE OMPH HYDRAULIC MOTOR CAN SUBSTITUE FOR
* Eaton Motor JH Series
* Eaton Motor H Series (101-)
* Parker Motor TC/TB/TS/TE Series
* White Drive Product WD/145 Series
* M+S Motor MP/MLHP Series
* Brevini Motor BHS Series
Warranty
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
WHY US

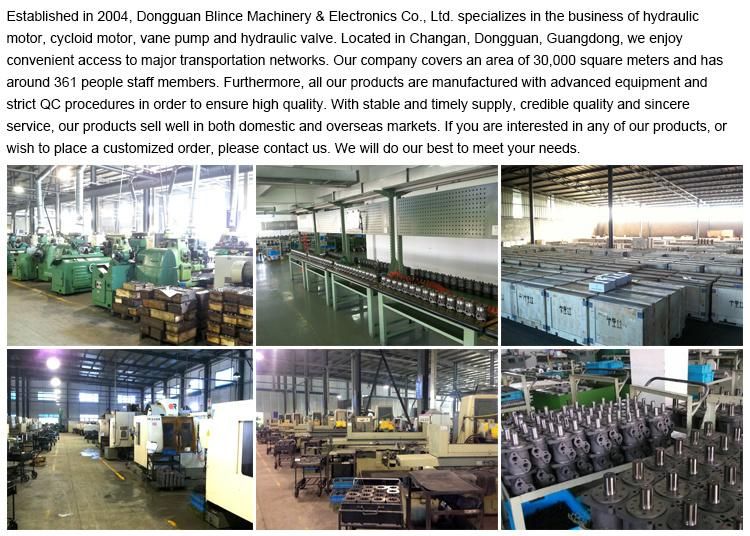

1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
FAQ
Q1:Can you provide a sample before a big order?
A:Yes, we can .
Q2:Can I have my brand on the products?
A:Of course you can.
Q3:How about your quality?
A:Most of the excavator/loader/Engineering vehicle companys is our customer in China, we also have confidence to supply goodproducts to our foreign customers.
Q4: How long has your company run in Hydraulic Fields?
A:Over 15 years
Q5: Which payment terms do you accept?
A:L/C T/T D/A D/P Western Union Paypal Money Gram
Q6: What is your delivery time?
A:It depends on whether the products you buy is in stock.If in stock, ship it within 3-5 days, if not, it will be decided by the time of factory production.
Q7: What's the warranty of your products?
A:One Year after shippment.
Q8: Is your company accept customization?
A:We could accept OEM depends on quantity.
If you have any questions or other hydraulics informations what I can do for you. Please contact me directly or visit our website. The best service you will get soon!
Amy chen
Blince Line: +86 4008803223/+86 769-85156586
THANKS FOR YOUR READING, AND HOPE YOU HAVE A NICE DAY. ( n. N ) **
