• Model NO.：Hmhdb125 Hmhdb200 Hmhdb270 Hmhdb325 Hmhdb400 Hmb70
• HS Code：8412291000
• Production Capacity：50 Pieces,Month

Basic Info.

Model NO. Hmhdb125 Hmhdb200 Hmhdb270 Hmhdb325 Hmhdb400 Hmb70 HS Code 8412291000 Production Capacity 50 Pieces/Month

Product Description

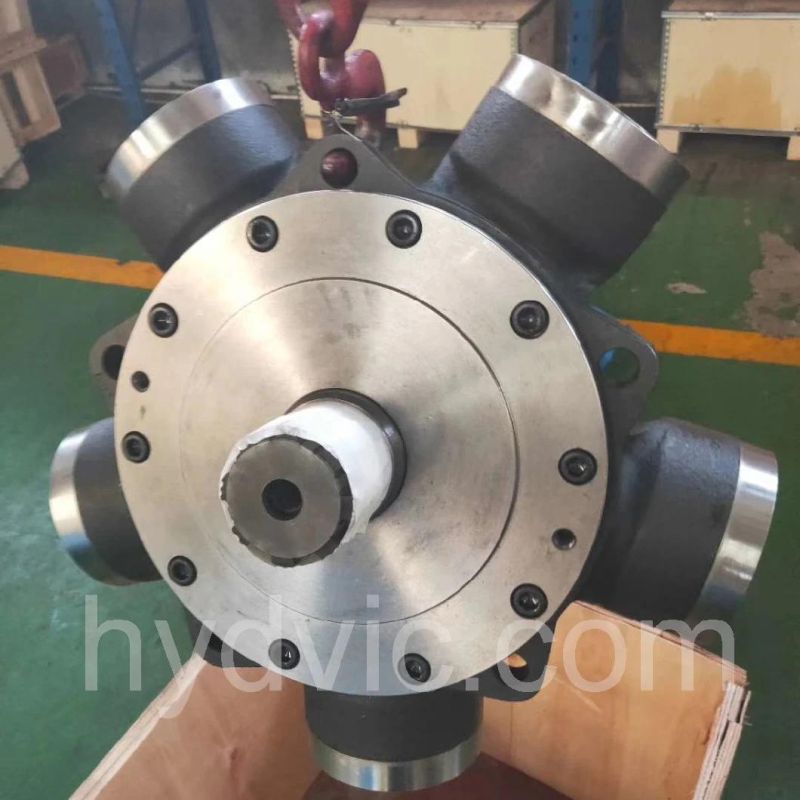

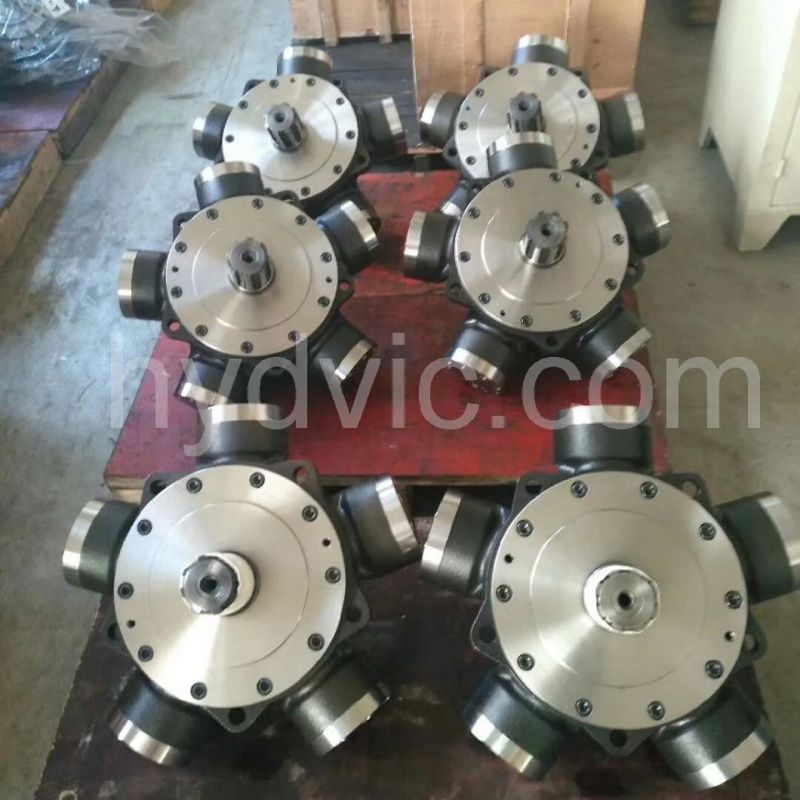

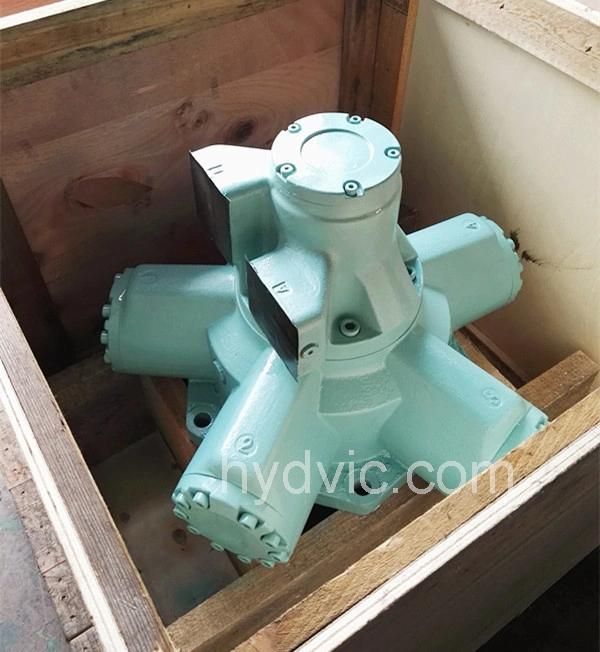

We produce Kawasaki Staffa motor HMB & HMHDB Hydraulic Piston Motor Staffa HMB060, HMB080, HMB100, HMB125, HMB150, HMB200, HMB270, HMB325, HMB400, HMB700, HMHDB125, HMHDB200, HMHDB270, HMHDB325, HMHDB400 Hydraulic Motor.

Features of the technical performance below :
1.Capacity ranges from 988 to 12599 cc/rev.
2.Disp.(cc/r):1000~12600.
3.Rated torque(Nm):3300~37261.
4.Rated power(kW):90-230.

Standard HMHDB HMB model specifications as follow:
Details regarding the choice of hydraulic fluid:
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit the circuit temperature. The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range - the shaded area of the selection diagram. We recommended that the higher viscosity class be selected in each case. Example: At an ambient temperature of X °C an operating temperature of 60 °C is set. In the optimum operating viscosity range (shaded area) this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68. Please note: The case drain temperature, which is affected by pressure and speed, is always higher than the circuit temperature. At no point in the system may the temperature be higher than 115 °C. If the above conditions cannot be maintained due to extreme operating parameters.
Hydraulic fluid:
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable hydraulic fluids) and RE 90223 (HF hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions. The variable pump A4VG is unsuitable for operation with HFA, HFB and HFC. If HFD or environmentally acceptable hydraulic fluids are being used, the limitations regarding technical data and seals mentioned in RE 90221 and RE 90223 must be observed. When ordering, please indicate the used hydraulic fluid.
