Reducing Hydraulic Valve Drem20 Without Proportional Amplifier Rekith Brand
JIANGSU JIAYITE HYDRAULIC COMPONENT CO., LTD.- Function：Pressure Regulating
- Installation：Plate
- Drive：Electric
- Type：Pilot-Operated Type
- Max Working Pressure：315bar
- Max Flowing：300L,Min
Base Info
- Model NO.：DREM20
- Transport Package：Standard Carton or Plywood Package
- Trademark：Rekith
- Origin：China
- HS Code：8481201090
- Production Capacity：50 Pieces,Month
Description
Overview
Size 10 25 Weight DREM kg 4.7 6.0 DREME kg 4.8 6.1 Fixing position Optional Storage temperature range ºC -20 to +80 Environment temperature range DREM ºC -20 to +70 DREME ºC -20 to +50 Max.operating pressure Port A.B bar 315 Port Y bar Back to tank with zero pressure Max.setting pressure Port A bar 50,100,200,315 Min.setting pressure (pressure at current valur 0 in potr A) bar 2 Max.setting pressure limitation pressure stage setting value at factory bar 50 to 70 100 to 130 200 to 230 315 to 350 Max.flow-rate for main valve L/min 200 300 Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -20 to +80 Viscosity range mm²/s 150to 380 Hysteresis % ±3.5 Linearity % <±2 Repeatability % ±2 Supply voltage 24V DC Min.solenoid current mA ≤100 Max.solenoid current mA 1600±10% 800±5% Coil resistance at 20ºC Ω 5.5 20.6 Max.warm value 8 33 Duty % 100
FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data

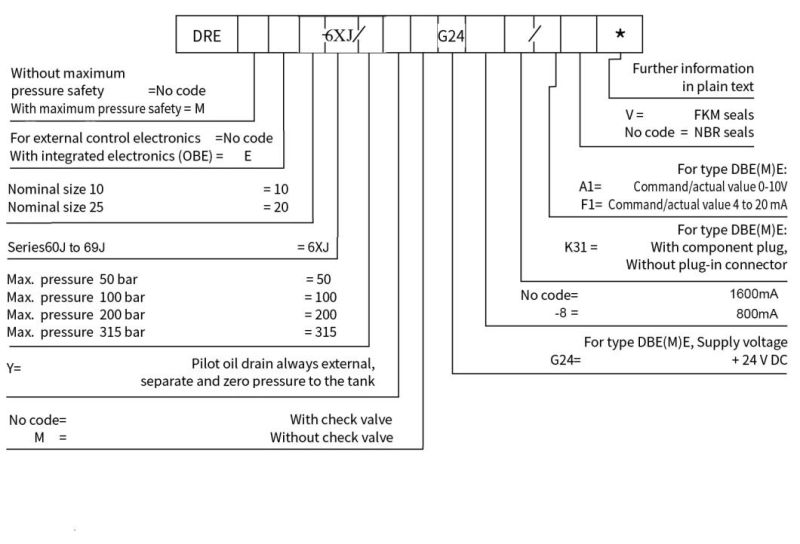

Ordering code
