• Model NO.：OMH500
• Usage：Hydraulic Oil
• Material：Cast Iron
• Shaft Type：Parallel Key,Splined Tooth
• Diameter of Shaft：25.4mm,31.75mm,32mm,35mm Staright
• Flange Type：Rhomb-Flange
• Application：Medium and Heavy Duty Tasks
• Place of Origin：Guangdong, China (Mainland)
• Stock：Rich
• Hydraulic Power Units：Vane Pump
• Transport Package：Plastic Tube +Carton+Wooden Pallets
• Specification：ISO9001
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：1000 Sets Per Month Meet Your Requirment

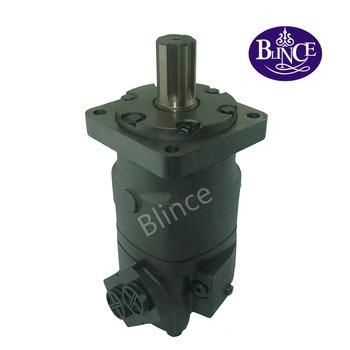

OMH Series Orbital Hydraulic Motor

Displacement:200,250,315,400,500Mounting Flange:1)4× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6
2)2× Ø 13.5 Rhomb× Flange, Pilot Ø 82.5× 6Output Shaft:1)Shaft Ø 32, parallel key 10× 8× 45
2)Shaft Ø 35, parallel key 10× 8× 45
3)Shaft Ø 31.75, splined key 14-DP12/24
4)Long Shaft Ø 31.75, splined key 14-DP12/24
5)Shaft Ø 32, parallel key 7.96× 7.96× 31.75
6)Cone shaft Ø 35, parallel key B6× 6× 20
7)Shaft Ø 25.4, parallel key SAE 6BPort and drain port:1) G1/2 Manifold mount 4× M8, G1/4
2) M22× 1.5 Manifold mount 4× M8, M14× 1.5
3) 7/8-14 O× Ring Manifold mount 4× 5/16-18UNC, 7/16-20UNF
4) 1/2-14 NPTF Manifold mount 4× 5/16-18UNC, 7/16-20UNF
5) PT(Rc) 1/2 Manifold mount 4× M8, PT(Rc)1/4Rotary directionStandard
Reverse
OtherSpecial function
Application areas:
* Sweeper
* Hydraulic Winch
* Conveyor
* Crane
* Aerial lift
* Combine Harvester
* Seeder
* Spreader
* Auger
* Machine tool
* And more
