• Model NO.：3P80
• Transport Package：Carton, Pallet
• Specification：7 KGS
• Trademark：HANJIU
• Origin：China
• HS Code：8481802990
• Production Capacity：10000 Pieces

Basic Info.

Model NO. 3P80 Transport Package Carton, Pallet Specification 7 KGS Trademark HANJIU Origin China HS Code 8481802990 Production Capacity 10000 Pieces

Product Description

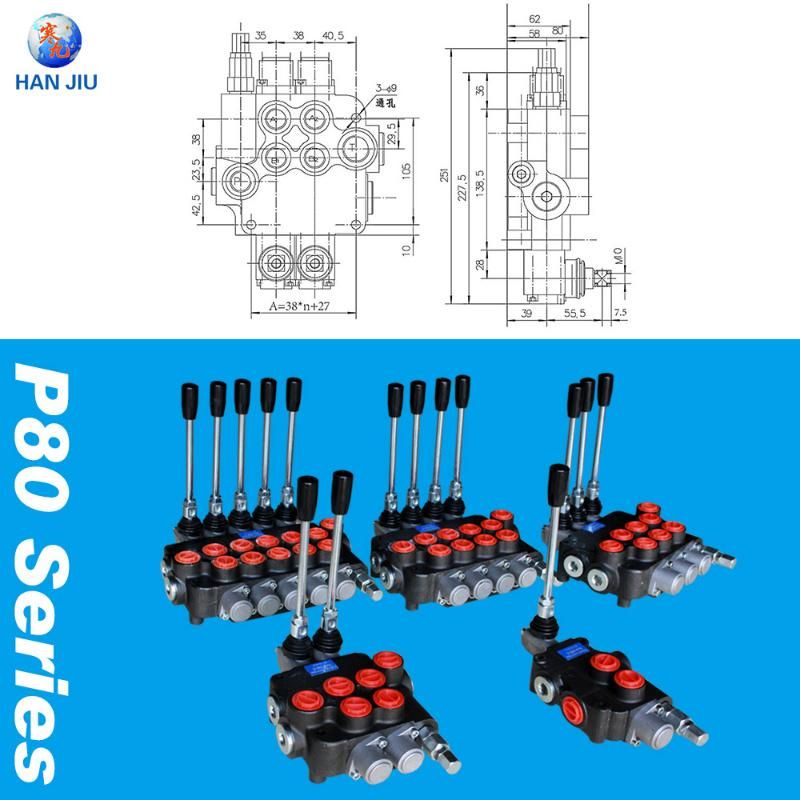

4 ways monoblock hydraulic directional valve 21gpm hydraulic fluid directional valve

Description

Manually or mechanically controlled hydraulic Monoblock Control Valves is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.

Construction

This valve is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

Mounting

The distributor is fixed with two bolts M8


3/4" Ported 3 Bank Monoblock Valve (Double Acting Spools also known as ram spools)Built in Adjustable Main relief valveNominal Flow Rating - 80L/MinMax Flow - 100LOperating Pressure - 315 Bar - 4600 Psi  Spring Return To Neutral


We provide Monoblock valves P80 series
Used for mobile equipment, including agriculture, forestry, fishery, mining, drilling equipment, engineering equipment, municipal equipment, etc.

1P80, 2P80, 3P80, 4P80, 5P80, 6P80 available

Can be used to control cylinders or motors

Manual control, electromagnetic control, cable control, joystick, remote, pneumatic control and more control methods are available

The production technology comes from Italy, the quality and performance are higher than the market average, and the price is favorable. It is widely praised in Latin America. The distributors have achieved brilliant results through cooperation with us.
