• Model NO.：BMR
• Transport Package：Carton
• Specification：Cast Iron
• Trademark：HANJIU
• Origin：China
• Production Capacity：5000000PC,Year

Basic Info.

Model NO. BMR Transport Package Carton Specification Cast Iron Trademark HANJIU Origin China Production Capacity 5000000PC/Year

Product Description

BMR Hydraulic Motor Compact Volume For Geological Drilling Equipment

BMR series motor adapt the advanced Geroler gear set design with shaft distribution flow,
which can automatically compensate in operating with high pressure, provide reliable and smooth
operation, high efficiency and long life.





Main Specifications:


Basic Motor: BMRSize: 160Shaft Style: cylindricalShaft Size: 32 mmPort Size: G 1/2Drain Port: StandardCheck valve: YesShaft Seal: StandardSpeed sensor: NoneMax speed int: 470 U/minMax speed cont: 375 U/minMax torque int: 430 NmMax. torque cont: 380 NmMax. pressure drop int: 200 barMax. pressure drop cont: 175 barMax. oil flow int: 75 l/minmax. oil flow cont: 60 l/minMax. inlet pressure int: 200 barMax. inlet pressure cont: 175 bar

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.



APPLICATIONS:


Agricultural planting,

Ground care, Sweeping and Mowing machinery,

Construction,

Forestry,

wood processing and cutting,

Farmland irrigation winch ,

Winch Wood from deforestation,

Construction machinery and platform,

Pilling machines,

Oceanographic research winch,

Nautical equipment and winches for fishing boats,

Towing and mooring winches, and many more.








PRODUCT INTRODUCE:


Orbital Hydraulic Motors Low speed high torque type

used for sweeping, cutting, rotating, harvesting, lifting, windling, load handling, delivery and more power transmission applications.

displacement 8ml/r to 1000ml/r, speed from 100RPM to 2000RPM, flow from 40Lpm to 225Lpm, working pressure from 9MPa to 30MPa, torque from 75N*M to 3000N*M.

form, fit and 100% interchange with wolrd popular models and brands Like , Eaton, M+S, SAM, and others

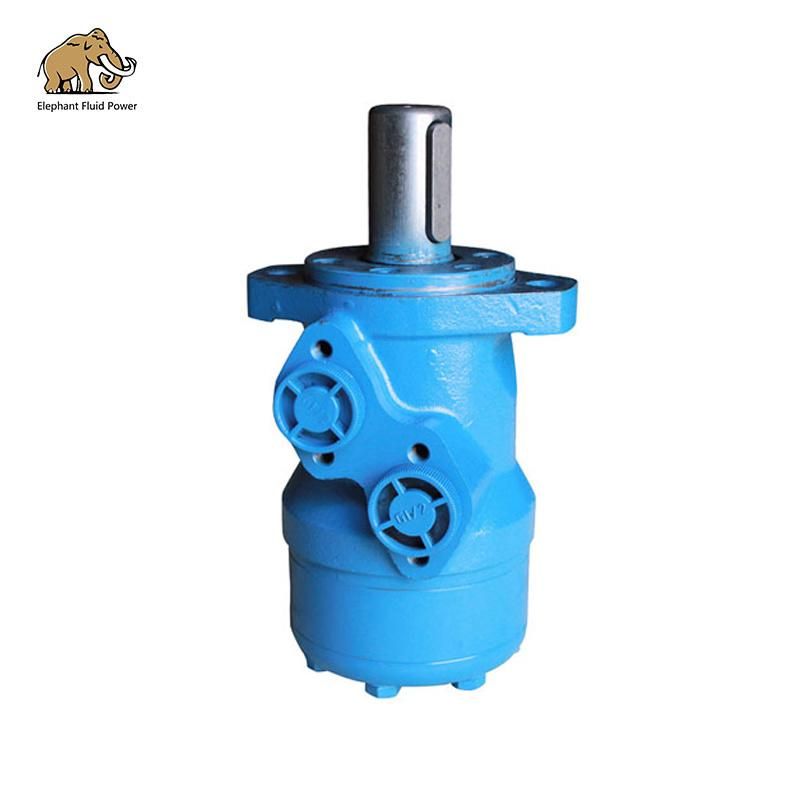

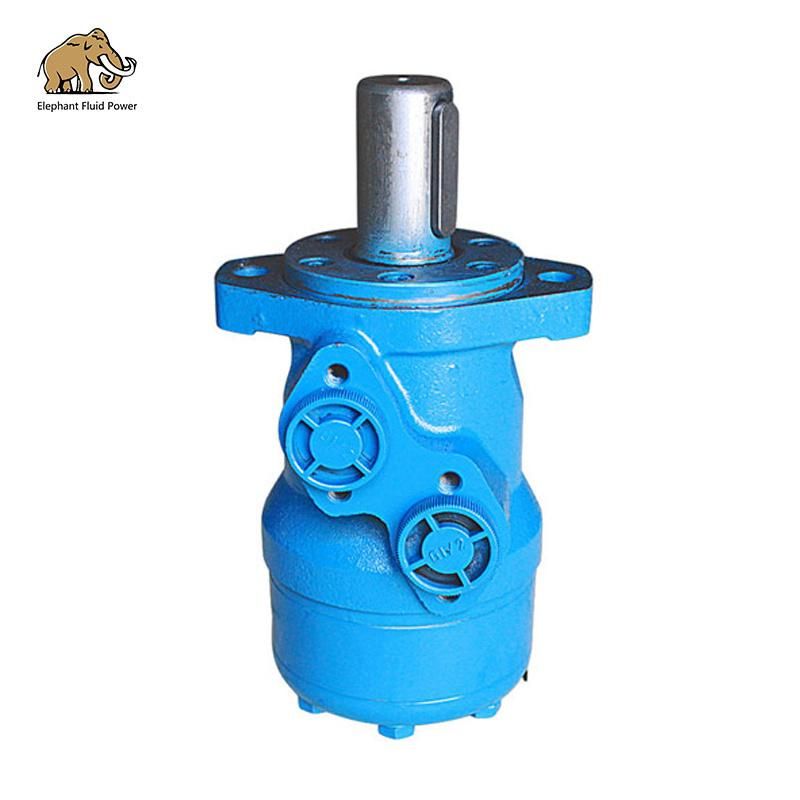

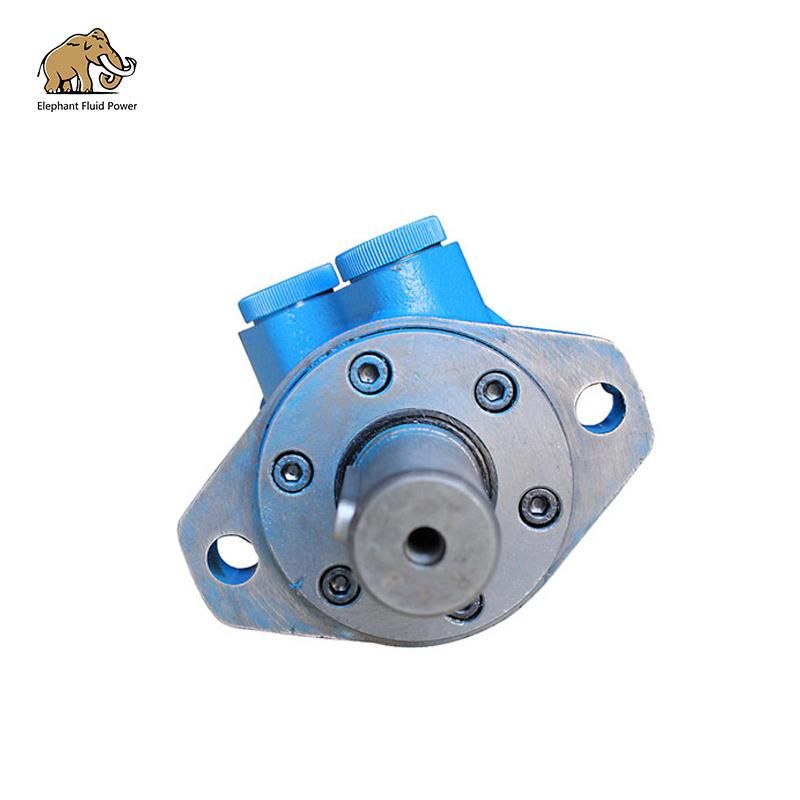

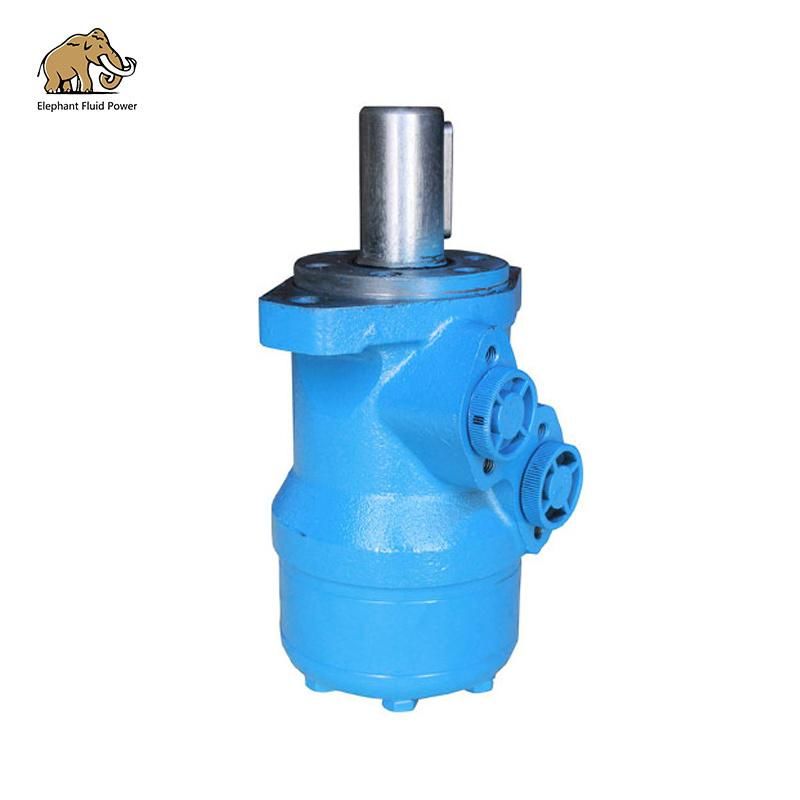

PRODUCT INTRODUCE OF THE MOTOR IN THE PICTURE:


Gerotor Hydraulic Motor BMR series

Same as Eaton Char-Lynn Gerotor Hydraulic Motor S, T, W

Same as Gerotor Hydraulic Motor OMR

Same as M+S Gerotor Hydraulic Motor MR

Same as White Cross Hydraulic Motor RE

Same as SAM Brevini Hydraulic Motor BR

Manufacturer: HANJIU

BMR-160-2BD

Description: Hanjiu Gerotor Hydraulic Motor

Packaging Condition Details: 1 pc/ inner carton, 3 inner cartons/ outer cartons.





Characteristic Features:

*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,
  provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
*Special design in the driver-linker and prolong operating life
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation.



Why choose us


High efficiency

High starting torque

Robust and compact design

High radial and axial bearing capacity

For applications in both open and closed loop hydraulic systems

Suitable for a wide variety of hydraulics fluids

Smooth running over the entire speed range

Constant operating torque over a wide speed range

Long life under extreme operating conditions

High return pressure without the use of drain line (High pressure shaft seal)



Our company:





Elephant Fluid Power has been engaged in the hydraulic business since the beginning of the 20th century. It has a history of nearly 20 years and has always been upholding the principles of "quality first", "credit first" and "zero complaint", and has become a new leader in the hydraulics industry. Elephant Fluid Power insists on good products, good service, and has been providing customers with better, more comprehensive hydraulic products, and constantly.

 We are looking for good long business partner and friendship.



If you are interested in our products, please contact me, I will provide the best price support and quality service.
I believe we will establish a good and long-term cooperation.
