F Series Hydraulic Cylinder and Assembly
Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.- Certification：CE, ISO9001
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Acting Way：Single Acting
- Working Method：Rotary
- Adjusted Form：Switching Type
Base Info
- Model NO.：F1300,F1000,F500,F800
- Structure：Piston Type
- Material：Alloy Steel
- Borehole Diameter：300 (mm)
- Drilling Depth：1000 (M)
- Drilling Angle：20 (°)
- Outline Size：1000 (mm)
- Vertical Shaft Speed：1300
- Transport Package：Pallet or Wooden Case
- Specification：1 (T)
- Trademark：TR Solids Control
- Origin：Xi′an, China
- HS Code：84749000
- Production Capacity：200 PCS , Month
Description
Basic Info.
Model NO. F1300/F1000/F500/F800 Structure Piston Type Material Alloy Steel Borehole Diameter 300 (mm) Drilling Depth 1000 (M) Drilling Angle 20 (°) Outline Size 1000 (mm) Vertical Shaft Speed 1300 Transport Package Pallet or Wooden Case Specification 1 (T) Trademark TR Solids Control Origin Xi′an, China HS Code 84749000 Production Capacity 200 PCS / MonthProduct Description

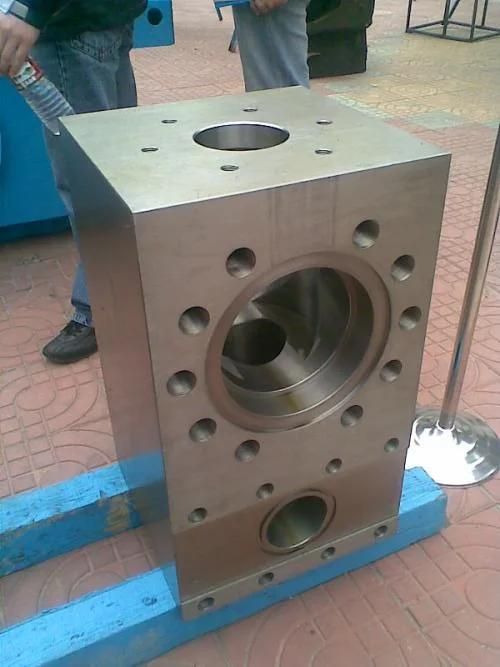

Hydraulic Cylinder and Assembly
Cylinder material is special alloy steel forgings,and machines with mature scientific processing technology.It has reasonable structure and high efficiency.

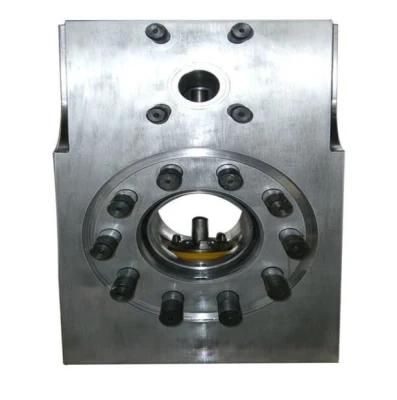

Hydraulic cylinder with corresponding bolts and nuts could constitute hydraulic cylinder assembly.
Cylinder material is alloy forgings,and three cylinders of each pump are interchangeable.If user has requirements,we can do chemical plating nickel on th surface of cylinder,so that enhance its corrosion resistance.
The exhaust outlet is respectively equipped with exhaust air bag,shear pin valve and discharge filter.
Product Description

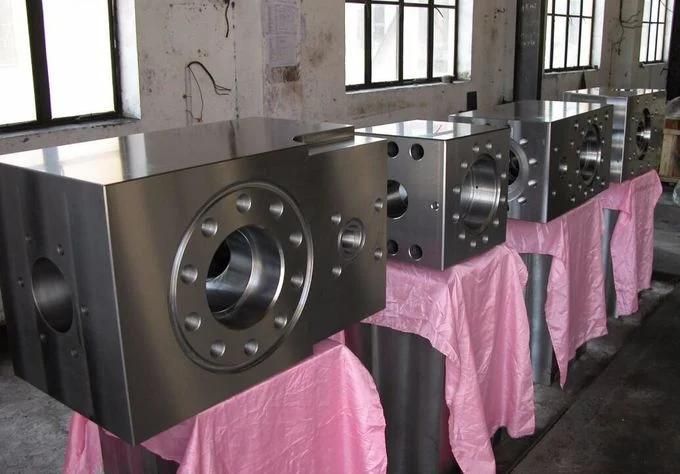

We can supply various pump modules(complete module or module with stud&nut), the modules has following features:
(1) Heat-treated and internally hardened for high durability ; available in various materials to meet a wide range of applications ;standard one-or and/or two-piece configuration ,with designs available for pressure of 5000,7500,and 10000psi (351,527,and 703kg/cm2); discharge connections available on each side ; suction connections on each side or front center .
(2) Adapt most third party fluid-end modules to the mud pumps ,eliminating the need for drilling contractors to stock fliud end parts from several manufacturers ,Supply heated ,internally hardened forged alloy steel modules ,if the drilling contractor doesn't specify third party fliud ends .
(3) Made from the premium alloy steel AISI8620 or 4135 , with thermal refining treatment ,rigid inspection ,as well as the strict Nondestructive Examination performed for ensuring no internal flaw .
