Hydraulic Cylinder Hydraulic Oil Jack Hsg63/40-715*954.5-Wx
HEFEI CHANGYUAN HYDRAULIC CO., LTD.- Certification：ISO9001
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Acting Way：Double Acting
- Working Method：Straight Trip
- Adjusted Form：Regulated Type
Base Info
- Model NO.：HSG63,40-715*954.5-WX
- Structure：Piston Type
- Material：Carbon Steel
- Body Material：Carbon Steel
- Power：Hydraulic
- Bore Diameter：63 mm
- Rod Diameter：40 mm
- Stroke：715 mm
- Nominal Pressure：160 Bar
- Type：Telescopic Cylinder
- Warranty：1 Year
- Certificate：ISO9001:2008
- Application：Trucks, Forklift, Crane, Loader, Road Machinery
- Transport Package：Exported Standard
- Specification：as drawing
- Trademark：HCHC
- Origin：Anhui, China
- Production Capacity：5000 Pieces Per Month

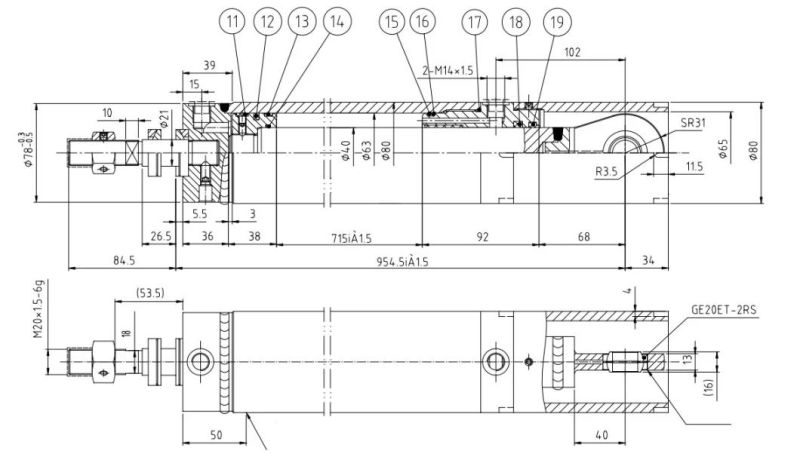

Description
(mm)
(mm)
(mm)
(bar)
