Hydraulic Parts

Home > Product > Hydraulic Motor

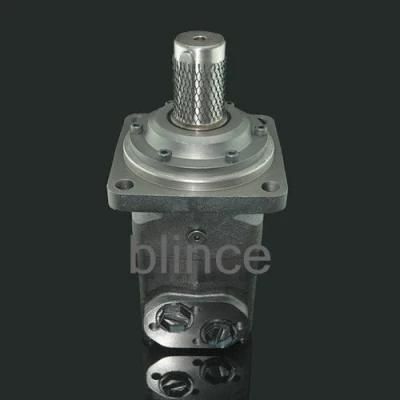

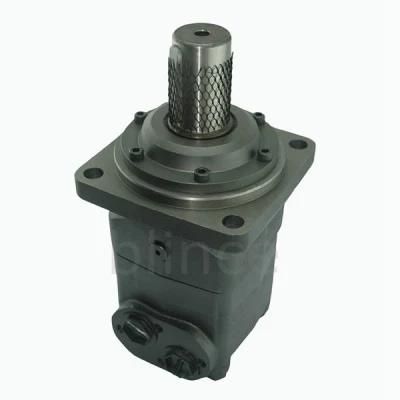

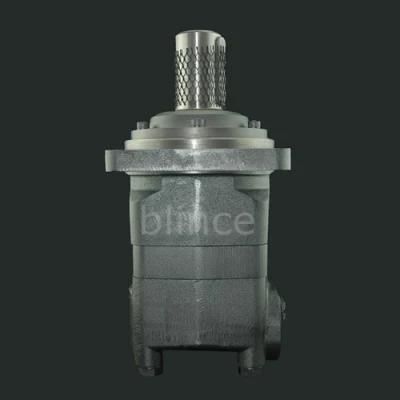

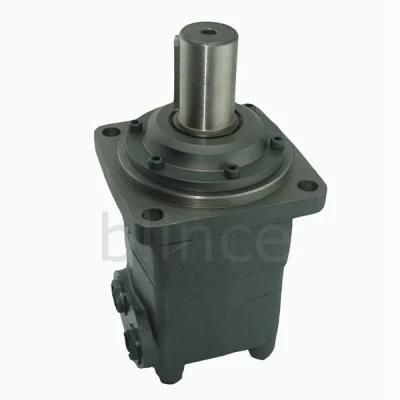

Ok Replace Ds Hydraulic Motor for Skid Steer Loader

Dongguan Blince Machinery & Electronics Co., Ltd.
  • Certification：RoHS, ISO9001
  • Excitation Mode：Excited
  • Power Rating：2500W
  • Casing Protection：Open Type
  • Number of Poles：4
  • Speed：Low Speed

Base Info

  • Model NO.：OK36,50,80,100,125,160,200,250,315,375
  • Type：Hydraulic Motor
  • Structural：Hydraulic Cycloid Motor,Hydraulic Orbit Motor
  • Usage：Hydraulic Oil
  • Material：Cast Iron
  • Flow Distribution：Axial Distribution Type
  • Shaft Type：Parallel Key,Splined Key
  • Diameter of Shaft：24.5mm,25mm,25.4mm,28.56mm Staright
  • Place of Origin：Guangdong, China (Mainland)
  • Auxiliary Components：Oil Filter
  • Hydraulic Actuator：Combination Hydraulic Cylinders
  • Hydraulic Power Units：Vane Pump
  • Transport Package：Plastic Tube +Carton+Wooden Pallets
  • Specification：ISO9001
  • Trademark：Blince
  • Origin：Guangdong, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：1000 Sets Per Month Meet Your Requirment

Description


  code Displacement
[cm/rev]Max.Speed
[rpm]
 Max.Torque
[Nm]
 Max.output
[kW]
 Max.pressure
[MPa]
 Max.Oil
Flow[L/min]cont.cont.int.cont.int.cont.int.cont.OK363611116683910.41417.540OK5051.7780100129910.41417.540OK8081.574415819610.412.61417.560OK10010259520024210.812.81417.560OK125127.248024829810.812.51417.560OK160157.2382 31538410.411.51417.560OK200194.53013394198.810.212.515.560OK250253.32384034748.19.4111460OK315317.51913984987.47.8912.560OK375381.41623734666.27.17.5960
