• Model NO.：Customized
• Solenoid Voltage：24 DC Volts
• Tank：Horizontal Type Steel Capacity 6L
• Remote Control Switch：Yes
• Rated Power：1.6kw
• Pump：2.1cc,R
• Transport Package：Standard Carton
• Specification：66*25*30cm
• Trademark：LANDMARK
• Origin：China
• HS Code：8412299090
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. Customized Solenoid Voltage 24 DC Volts Tank Horizontal Type Steel Capacity 6L Remote Control Switch Yes Rated Power 1.6kw Pump 2.1cc/R Transport Package Standard Carton Specification 66*25*30cm Trademark LANDMARK Origin China HS Code 8412299090 Production Capacity 50000 PCS/Year

Product Description

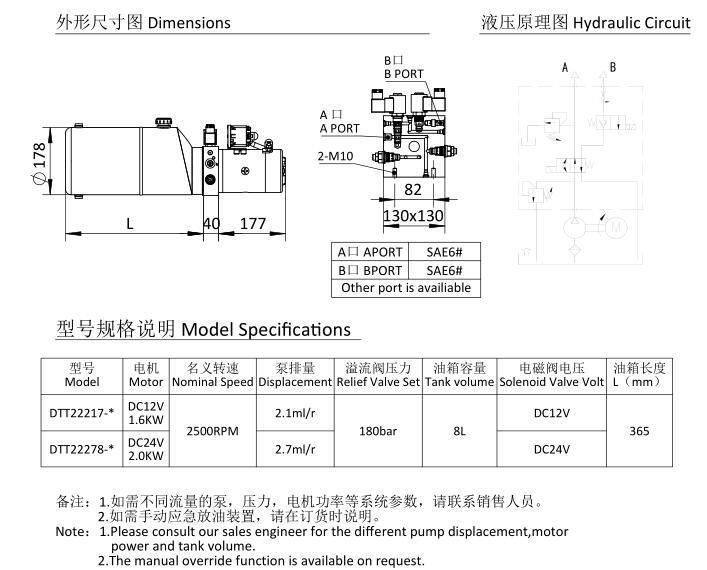

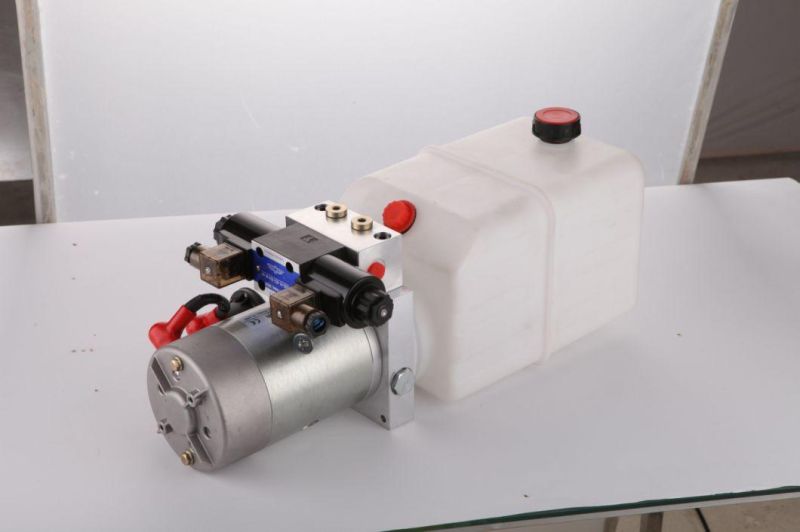

12V DC Single Acting Hydraulic Power Pack With 8L Tank

12V DC single acting hydraulic tipper powerpack, 4.5, 8, 11 or 13 litre reservoir c/w with 2 button pendent. 5l/min @160bar. Hydraulic Power Unit Package to operate a single acting cylinder on any trailer or tipper application complete with detachable two button pendent.


*12v dc powerunit. *2.1cc/rev gear pump. *1.6kw 12vdc electric motor c/w relay and plastic motor cover. *4.5, 8, 11 or 13 Litre reservoir c/w drain plug. *Powerpack complete with suction strainer, return oil conveyor and filler breather. *Horizontal mounting *Max pressure 200 bar. *Relief valve set at 160 bar but adjustable from 40-200 bar as standard. *Max flow 5 l/min. *Adjustable flow control for cylinder decent control. *12v dc let down valve, relief and P line check. *Port size 3/8" BSP. *2 Button detachable pendent on a 4 metre lead. Suitable for all single acting applications.
1.General Description

High pressure gear pump, a DC motor, a multi-functional manifold, valves and tank, this power unit has a power up - gravity down circuit. Start the motor to lift the machine and the lowering movement is activated by the solenoid valve with the lowering speed controlled by the pressure compensated flow control vale.



These units are high quality and are used in many OEM applications. Directly factory support for any questions or parts replacement.

2. Components:

 This unit comes standard in many dump trailers and is a direct replacement for most power-up/gravity-down applications. It's high quality starter ensure long life and a fast start every time, the motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.

3.Our advantage
Our engineers work with Solidworks and Inventor for our 3D drawing designs.
100% inspection before we put all materials and components on our production line.
CNC machining,UG/MasterCAM MILL 9.1 program for CNC.
All mini power packs and valves are 100% pressure tested.
Highest level test benchmarks for valves and power units with flow, pressure, current, and voltage sensor.
4. How to operate a Dump Trailer Hydraulic Power Pack?

Lift Trailer Body, Push "up" button to start the motor to lift the Trailer by hydraulic cylinder, Push "DW" button and the solenoid valve actives ,the cylinder lowering movement. Hydraulic oil back to tank and cylinder start closing. And dump trailer body start back to level position. Click technical data of single acting power unit troubleshooting you can learn.
5.Hydraulic power pack units Applications
a.Car lift with our AC hydraulic power unit includes a compact sized hydraulic power unit and hydraulic cylinder.
b.DC Power Packs for Dump trailer are basic single acting hydraulic power packswith remote control pendant.
c.Mobile hydraulics for forklifts with our standard and customized DC hydraulic power packs.
d.No matter what vehicle you are lifting with a scissors lift, our hydraulic power units can power and lift it!
e.DC power packs with lift gates make loading and unloading goods easy from trucks or pickups.
f.Dock leveler with small AC hydraulic power units are most common in the logistics industry.
