• Model NO.：CBQZ-F5**-AF**
• Nominal Displacement：20~40 Ml,R
• Rated Pressure：250 Bar
• Maximum Pressure：280 Bar
• Minimum Speed：600 Rpm
• Rated Speed：2500 Rpm
• Maximum Speed：3000 Rpm
• Volume Efficiency：92 %
• Warranty：1 Year
• Certificate：ISO9001:2008
• Transport Package：1 Piece , Carton
• Trademark：HCHC
• Origin：Anhui, China
• Production Capacity：8000 Sets Per Month

Basic Info.

Model NO. CBQZ-F5**-AF** Nominal Displacement 20~40 Ml/R Rated Pressure 250 Bar Maximum Pressure 280 Bar Minimum Speed 600 Rpm Rated Speed 2500 Rpm Maximum Speed 3000 Rpm Volume Efficiency 92 % Warranty 1 Year Certificate ISO9001:2008 Transport Package 1 Piece / Carton Trademark HCHC Origin Anhui, China Production Capacity 8000 Sets Per Month

Product Description

 Performance Characteristics:
★ Pump housing is made of high strength aluminum alloy material.
★ The shaft extension type: plain key (P), rectangular spline (H), involute spline.
★ The auto-compensation unit of axial clearance ensures the high volumetric efficiency.
★ Higher working pressure, wider speed range.
★ Keep higher volumetric efficiency when the speed is 600 rpm/min.

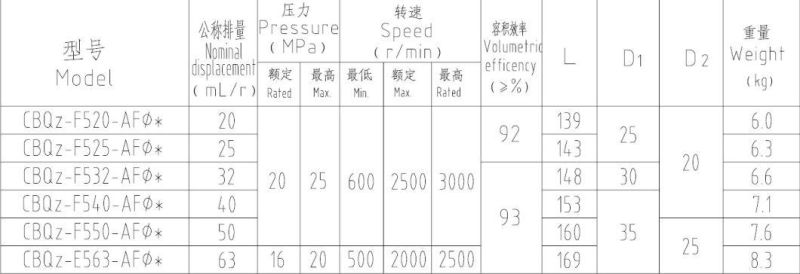

Specification:

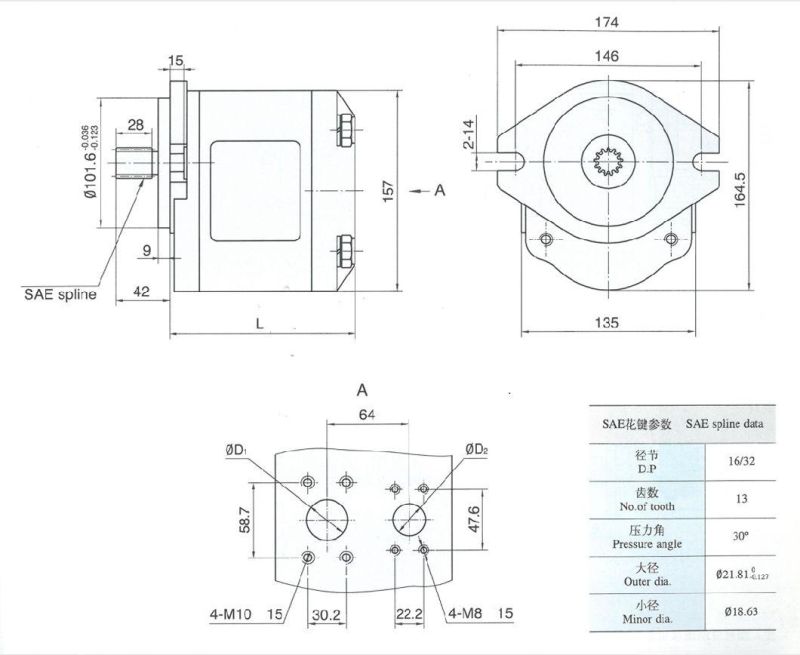

Outline Dimension:
