• Model NO.：OMM hydraulic motor
• Type：Hydraulic Motor
• Code：Omm8,12.5,20,32,40,50 Hydraulic Motor
• Max Speed：Contin400~1950rpm
• Max Torque：Contin 11~46 N.M
• Output Power：Contin1.8~2.4kw
• Pressure：Contin 70~100bar
• Output Shaft：Parallel Key, Splined Key
• Flange：Circle-Flange, Rhomb-Flange
• Motor of Material：Cast Iron
• Hydraulic Power Units：Vane Pump
• Warranty：One Year
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE
• Trademark：Blince
• Origin：Guangdong, China (Mainland)
• HS Code：8412291000
• Production Capacity：1000000 PCS,Year

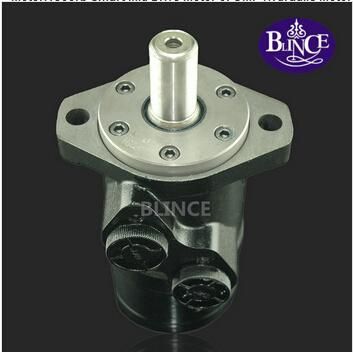

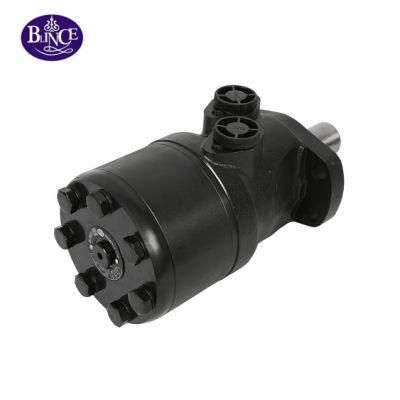

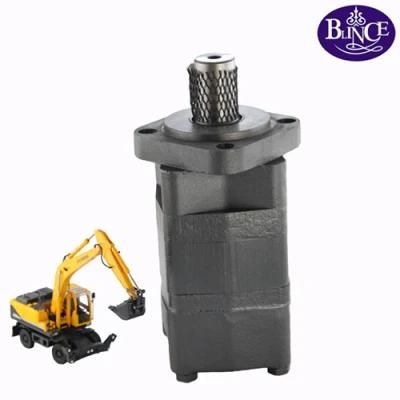

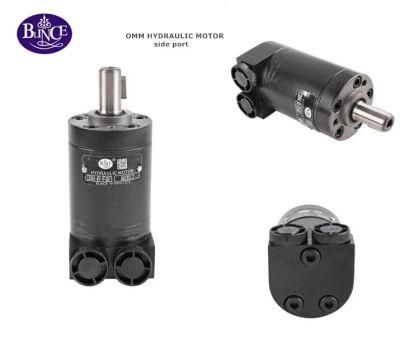

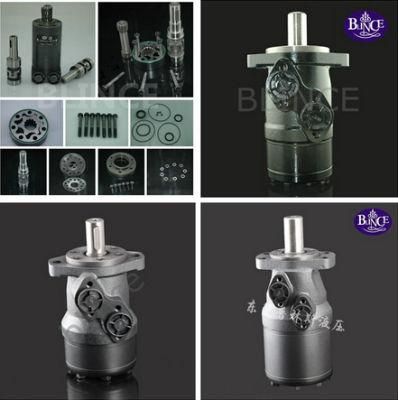

                                           BLINCE Orbital hydraulic motor OMM

Model:OMM8,OMM12.5,OMM20,OMM32,OMM40, OMM50Flange:3-M6 Circle-flange, pilotØ 31.5× 5
3-1/4-28UNF Circle flange, pilot Ø 31.5× 5
2-Ø 9 Rhomb-flange, pilotØ 63× 2Output shaft:ShaftØ 16, parallel key 5× 5× 16
ShaftØ 15.875, parallel key 4.8× 4.8× 19.05
ShaftØ 16.5, involute B17× 14, DIN5482Ports/drain port:G3/8, G1/8
9/16-18UNF, 3/8-24UNF
End port G3/8, G1/8
End port 9/16-18UNF, 3/8-24UNF
Rotation directionalForward
Reverse
Paint:No paint / Silver grey / Black / Blue

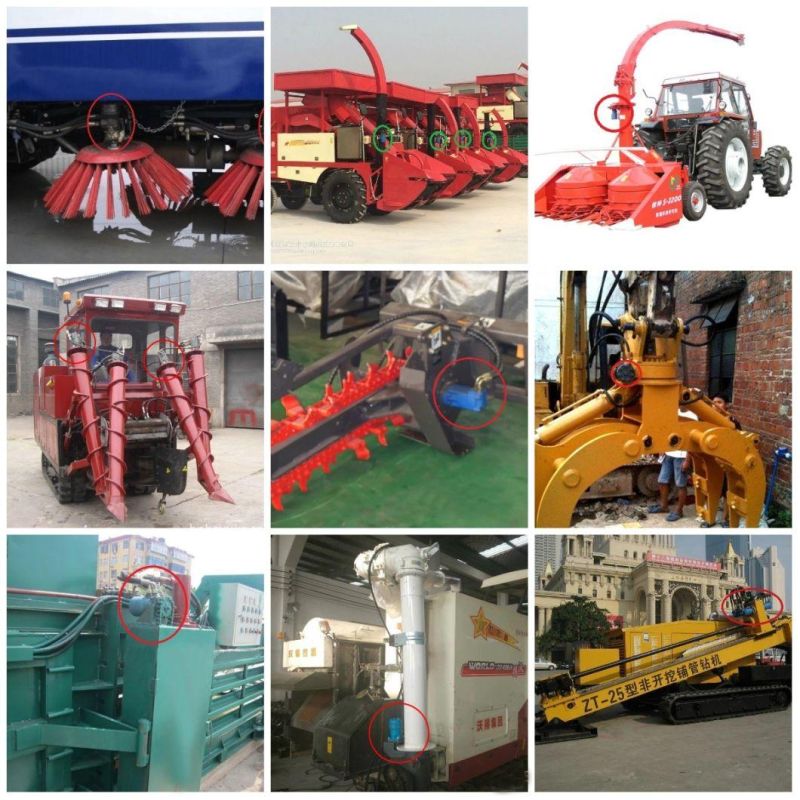

Application areas:

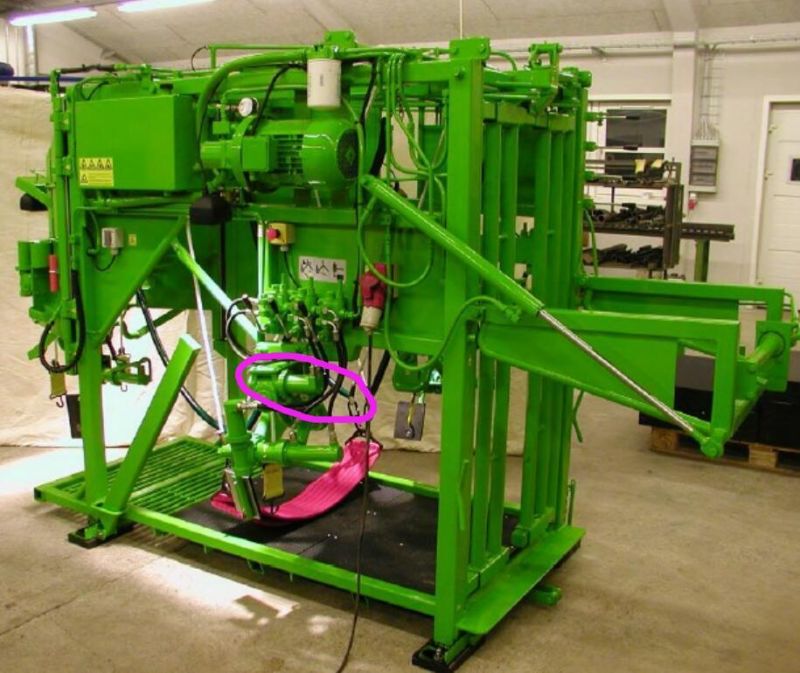

* Hydraulic hoof trimming crush
* Construction equipment
* Underwater Hull Cleaning machine
* Agricultural equipment
* Material handling & Lifting equipment
* Forestry equipment
* Lawn and turf equipment
* Special purpose
* Machine tools and stationary equipment
* Marine equipment
* Any More





Packing details:
1) sale packing contians carton or wood case
2) interior packing is high quality film
3) as your request




My friends,

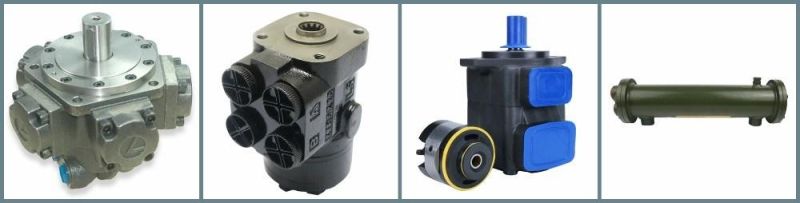

We also provide hydraulic motors such as OMM, OMP, OMR, OMS, OMT, OMV, OZ, OK, OM1, OM2, OM3, OM4, OMH, OMJ.
Vane pumps such as PV2R series, V series and VQ series, SQP series.
