Hydraulic Parts

Home > Product > Hydraulic Motor

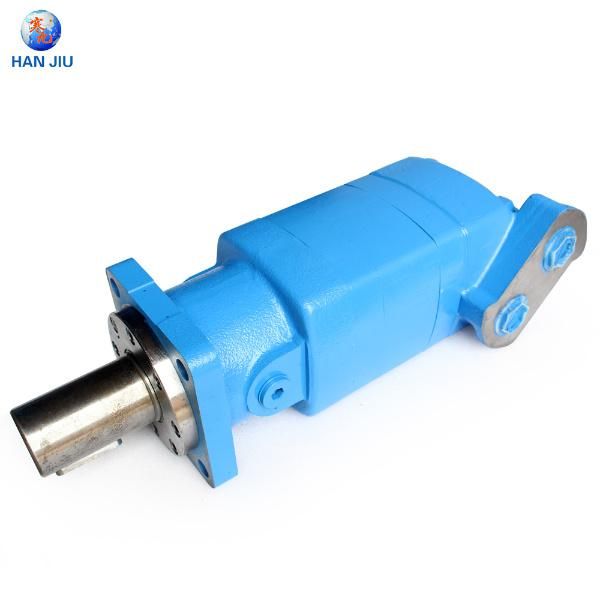

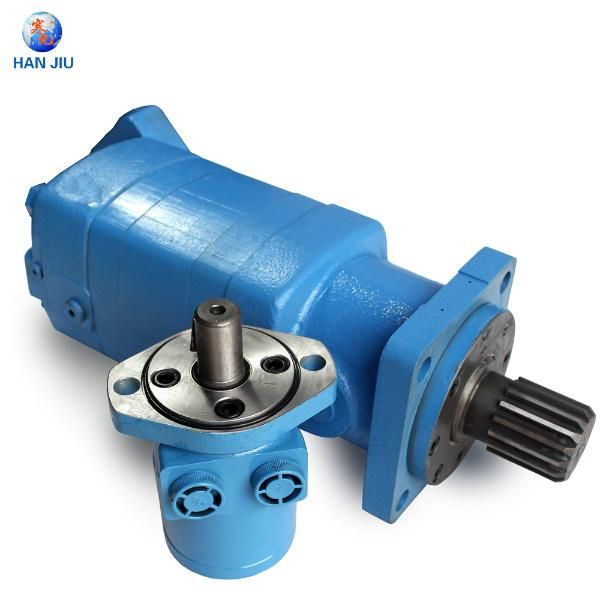

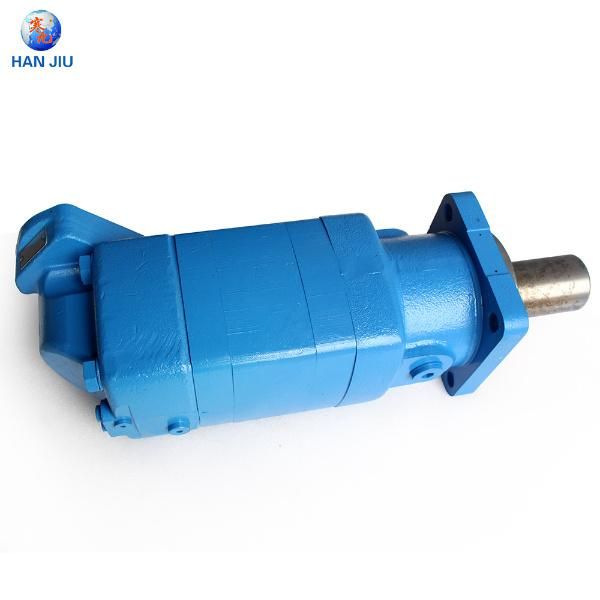

119-1028 Geroler Motor Char Lynn 1000 Series Standard 4 Bolt 57.15 Straight Shaft SAE O Ring Port

Shijiazhuang Hanjiu Technology Co., Ltd.
  • Certification：CE, ISO9001
  • Type：-
  • Transport Package：Carton Packing
  • Specification：10, 000 series
  • Trademark：Hanjiu
  • Origin：China

Base Info

  • Model NO.：10, 000 series
  • HS Code：84122910
  • Production Capacity：500000 Per Year

Description

SpecificationsGeroler Element4 DisplacementsFlow l/min [GPM]170 [45] Continuous**265 [70] Intermittent*Speed RPM501 Cont.**784 Inter.*Pressure bar [PSI]200 [3000] Cont.**270 [4000] Inter.*Torque Nm [lb-in]2700 [23910] Cont.**3440 [30460] Inter.*





Features
• High torque and flow
• Low pressure loss even in higher flows





Benefits
• High power density for demanding mobile and industrial applications
• Many options to draw from




Applications
• Boring
• Industrial
• Metal Forming
• Port Equipment
• Saw Mill





Series 10.000  ModelDisplacementSpeedMax. cont.119-1028345501119-1029480354119-1030665254121-1013665254119-1031940179120-1027665254120-1015665254

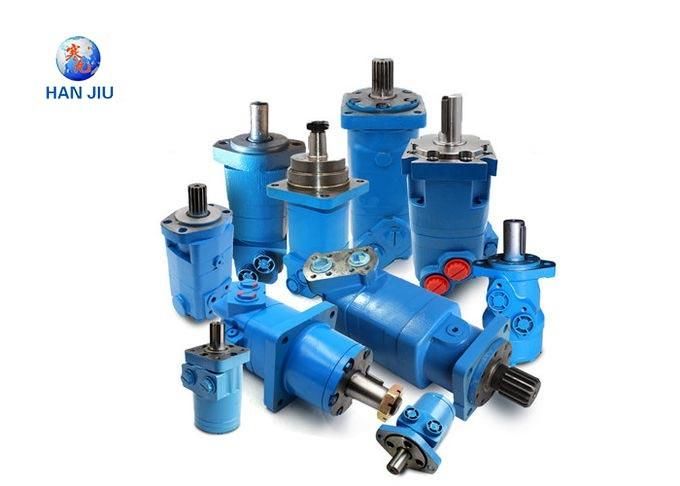

A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance. Contact us today to discuss your questions or application needs with our team.




119-1028 Geroler Motor Char Lynn 1000 Series Standard 4 Bolt 57.15 Straight Shaft SAE O Ring Port
119-1028 Geroler Motor Char Lynn 1000 Series Standard 4 Bolt 57.15 Straight Shaft SAE O Ring Port
119-1028 Geroler Motor Char Lynn 1000 Series Standard 4 Bolt 57.15 Straight Shaft SAE O Ring Port
119-1028 Geroler Motor Char Lynn 1000 Series Standard 4 Bolt 57.15 Straight Shaft SAE O Ring Port
