Spline Shaft for The Hydraulic Motor
Wuxi Hyphen Technology Co., Ltd.- Certification：ISO9001
- Transport Package：in Carton or Plywoodcase
- Trademark：Hyphen
- Origin：Jiangsu, China
Base Info
- Model NO.：HWM6-750
- HS Code：8412291000
- Production Capacity：20000PCS,Year
Description
Basic Info.
Model NO. HWM6-750 HS Code 8412291000 Production Capacity 20000PCS/YearProduct Description

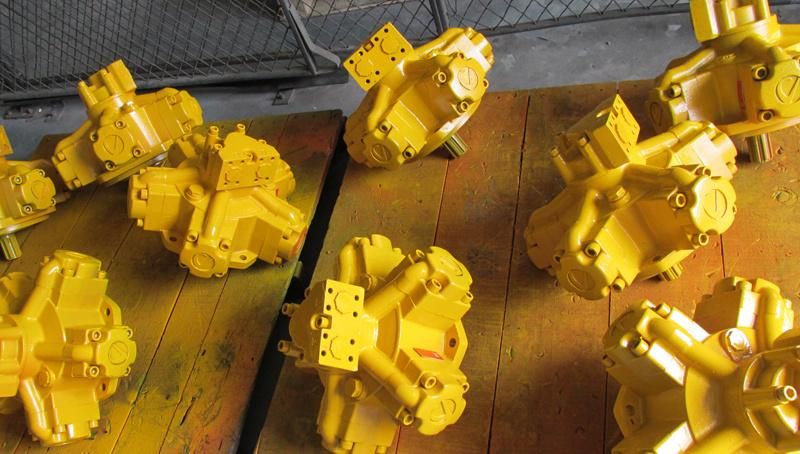

Radial Piston Hydraulic Motor is one kind of low speed high torque radial piston hydraulic motor. It can be widely applied in petroleum industry, chemical industry, mining, shipping, constructing machinery, especially for plastics injection molding machinery, hydraulic winch, all kinds of rotational and the track and wheel travel machinery etc. For example: Crawler tractor, caterpillar excavator etc.| Technical Parameters | 16-1400 | 16-1600 | 16-1800 | 16-2000 | 16-2400 | 16-3000 |
| Theoretical Displacement(ml/r) | 1413 | 1648 | 1815 | 2035 | 2267 | 3041 |
| Rated pressure(MPa) | 20 | 20 | 18 | 16 | 16 | 16 |
| Max Pressure(MPa) | 30 | 30 | 28 | 25 | 20 | 20 |
| Rated Torque(N.M) | 4500 | 5248 | 5184 | 5168 | 5763 | 7326 |
| Unit Theoretical Torque(N.m/MPa) | 225 | 262 | 288 | 323 | 360 | 483 |
| Max Power(Kw) | 95 | 95 | 95 | 95 | 95 | 95 |
| Max Rotation Speed(r/min) | 300 | 250 | 220 | 200 | 160 | 120 |
| Weight(kg) | 170 | 170 | 170 | 170 | 170 | 170 |
