• Model NO.：DR6DP
• Trademark：Power or OEM
• Origin：China
• HS Code：8481100090
• Production Capacity：10000PCS,M

Basic Info.

Model NO. DR6DP Trademark Power or OEM Origin China HS Code 8481100090 Production Capacity 10000PCS/M

Product Description

1. Product Description
Pressure reducing valve, direct operated, type DR6DP...L5XThe valve type DR 5 DP is a 3-way direct operated pressure reducing valve with a pressure relief function on the secondary side, to insure the secondary pressure steady. It is used to reduce the system pressure.
The secondary pressure is set by the pressure adjustment element (4).
At static position, the valve is normally open and the pressure fluid flows unhindered from port P to port A. The pressure in port A acts at the spool (2) area opposite to the compression spring (3) via the control line (6). When the pressure in port A get the value setting at compression spring (3), the control spool (2) moves into the control position and keeps the setting pressure in port A constant. The Internal control oil is taken from port A via the control line (6). If the pressure in port A still increases due to external forces on the actuator, the control spool (2) moves still further towards the compression spring (3).This causes a flow path to be opened via control land(8) on the control spool (2). Sufficient fluid then flows back to tank to prevent any further pressure rise. Fluid in spring chamber always drained to tank externally via port T(Y).
For free return flow from port A to port P an optional check valve (5) can be fitted One pressure gauge connection(1) used for monitoring the secondary pressure at the valve.

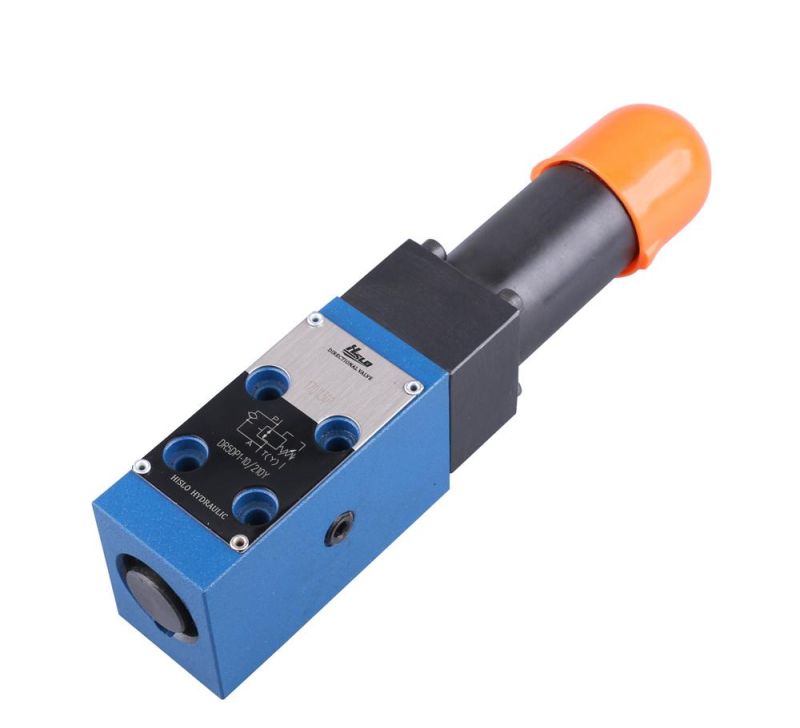

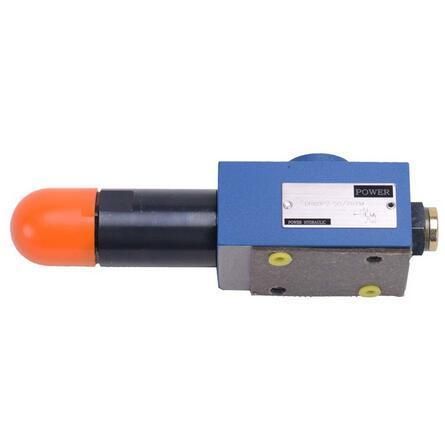

2. Product Photos

3. Company Profile

      NNINGBO POWER HYDRAULIC MOTOR CO.,LTD is a wel-trusted manufacturer in hydraulic industy.
      The company have achieved IS09001:2015 quality system, relying on strong technology development and production capacity,our annual output 600 thousand pieces. We produce all kinds of hydraulic valve, mainly include Rexroth and Yuken series of hydraulic valve products. Our products are widely used in mining, engineering, construction, plastics, chemicals, machine tools and so on. Our goal is to continue to deliver cost-effective products and more improved electro-hydraulic technology solutions.
     We also aim to help our customer to attain competitive advantage. It is our business to create more solutions, not just to satisfy the needs of our customers but also to help them progress in the industry.


4. Certificates

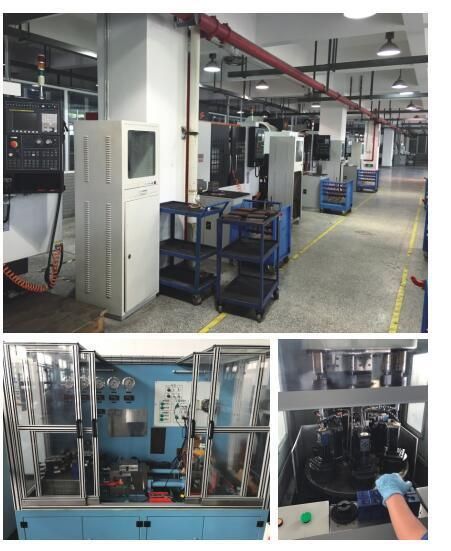

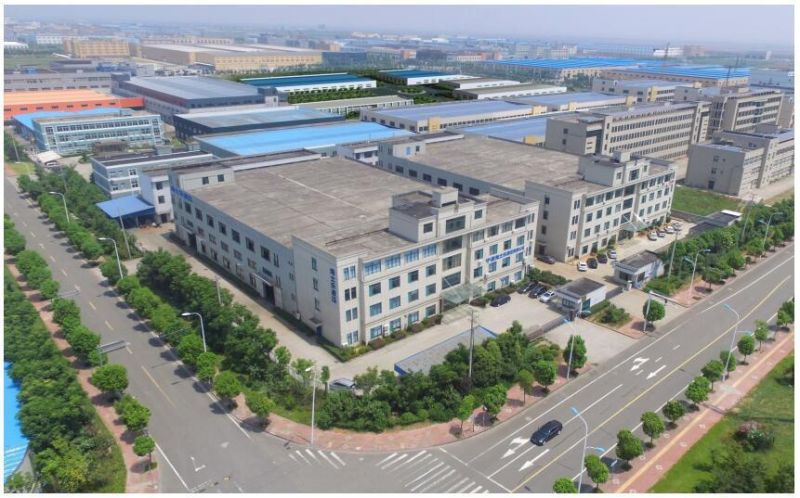

5. Factory

6. FAQ
Q1: Are you trading company or manufacturer ?

A: We are factory.

Q2: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock, or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q4: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
