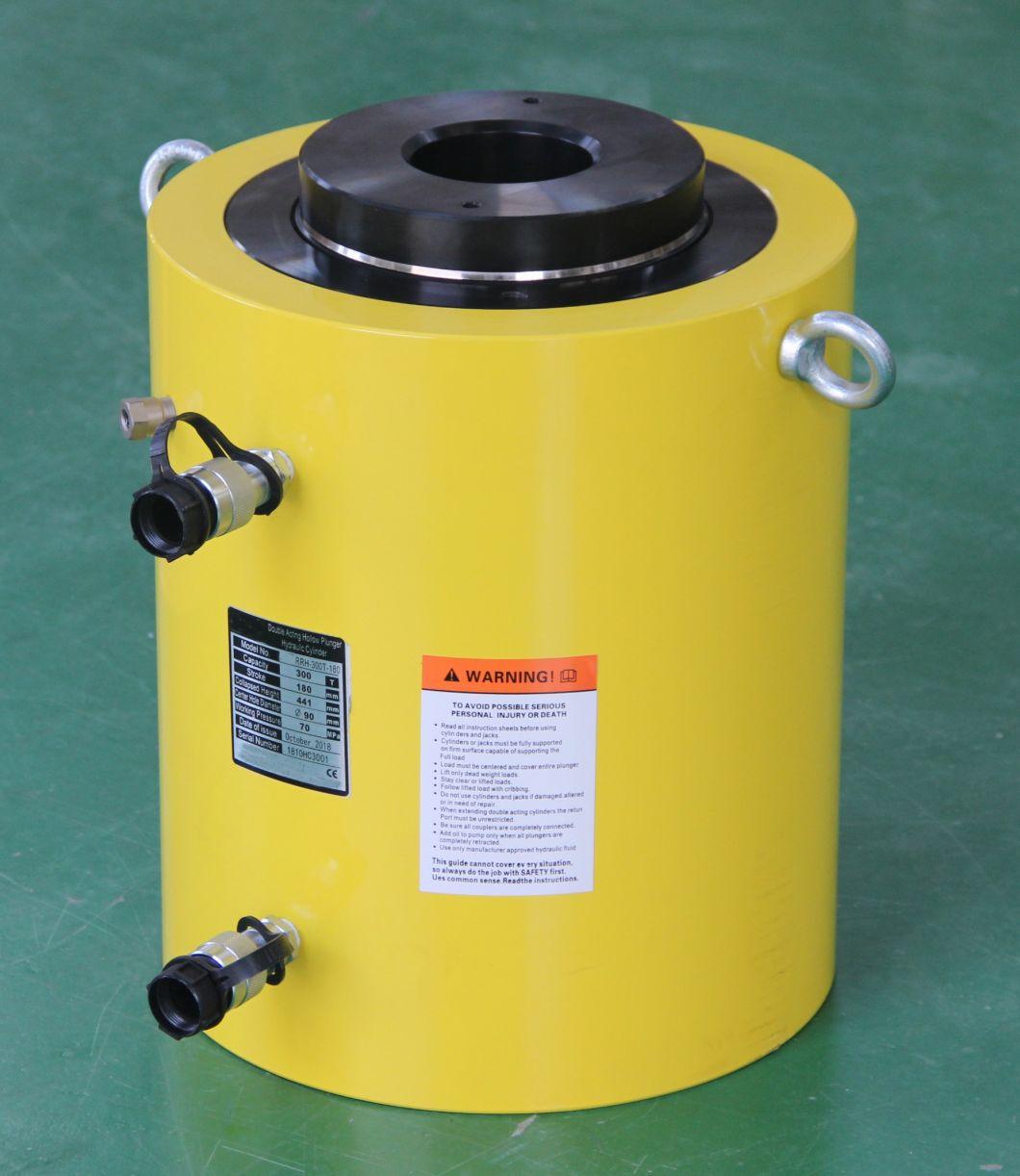

Industry Products Double Action Hydraulic Cylinder
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Pressure：High Pressure
- Work Temperature：Normal Temperature
- Acting Way：Double Acting
- Working Method：Straight Trip
- Adjusted Form：-
Base Info
- Model NO.：SOV-RHH Series
- Structure：Piston Type
- Material：Steel
- Product Name：Industry Products Double Action Hydraulic Cylinder
- Capacity：30-250ton
- Collapsed Height：247-700mm
- Outside Diameter：114-300mm
- Working Pressure：680-700 Bar
- Weight：20-226kg
- Color：Black, Yellow or Customized
- OEM：Yes
- Delivery Time：15 Days After Receive Payment
- Stroke：89-300mm
- Transport Package：Standard Export Wooden Case
- Specification：CE, ISO9001
- Trademark：SOV
- Origin：China
- HS Code：8425421000
- Production Capacity：800 Sets Per Month
Description
Maximum
Cylinder CapacityCylinder
Effective Area Oil
Capa-
city Coll.
Height Ext.
Height Out-
side
Dia. Center Hole
Dia. Weight kN cm2 cm3 A B D Y ton mm Adv. Retr. Adv. Retr. Adv. Retr. mm mm mm mm kg SOV-RRH-307 30 178 326 213 46,6 30,4 829 541 330 508 114 33,3 21 SOV-RRH-3010 258 326 213 46,6 30,4 1202 784 431 689 114 33,3 27 SOV-RRH-603 60 89 576 380 82,3 54,2 733 482 247 336 159 53,8 28 SOV-RRH-606 166 576 380 82,3 54,2 1366 900 323 489 159 53,8 35 SOV-RRH-6010 257 576 380 82,3 54,2 2115 1393 438 695 159 53,8 45 SOV-RRH-1001 95 38 931 612 133 87,4 505 333 165 203 212 79,2 33 SOV-RRH-1003 76 931 612 133 87,4 1011 666 254 330 212 79,2 61 SOV-RRH-1006 153 931 612 133 87,4 2035 1337 342 495 212 79,2 79 SOV-RRH-10010 257 931 612 133 87,4 3420 2246 460 717 212 79,2 106 SOV-RRH-1508 150 203 1429 718 204,1 102,6 4144 2083 349 552 247 79,2 111

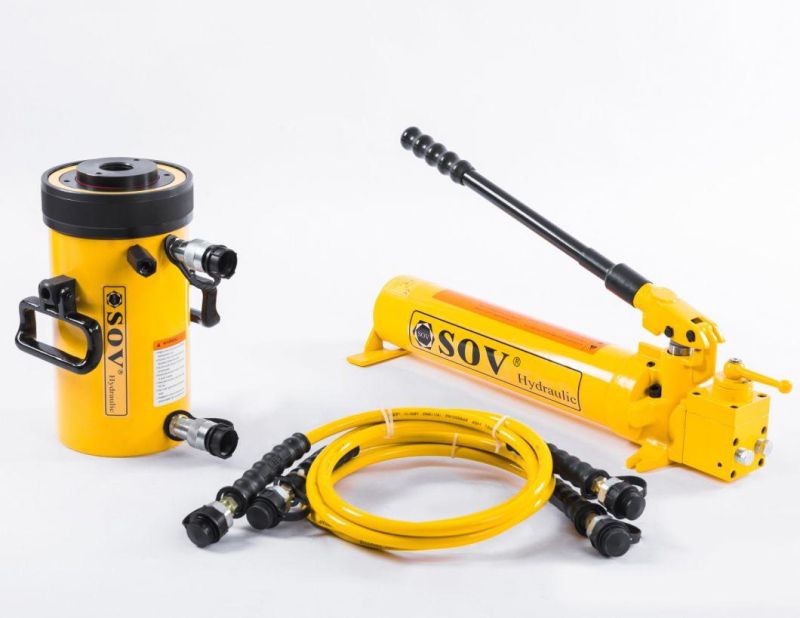

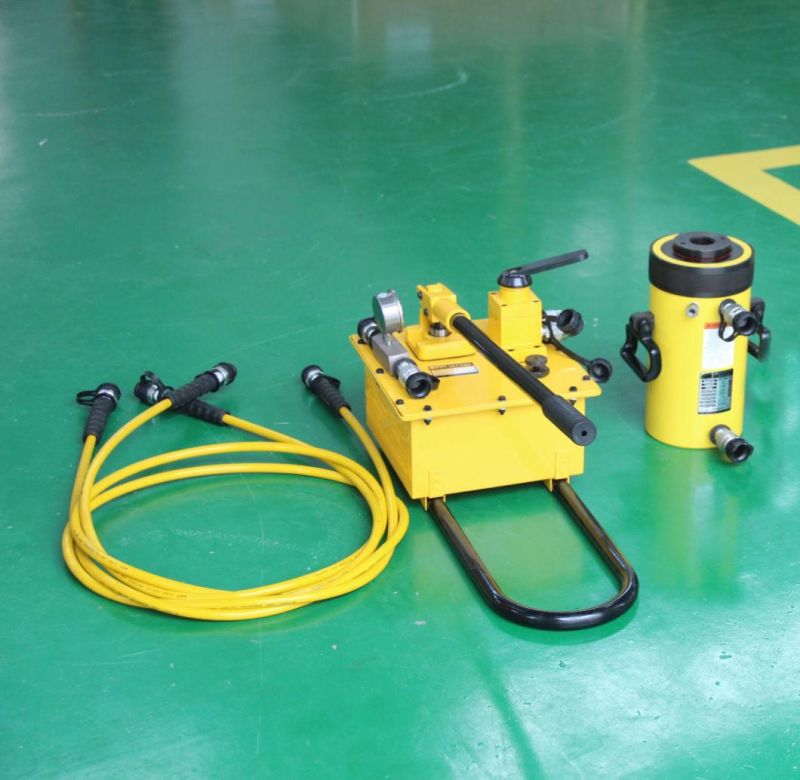

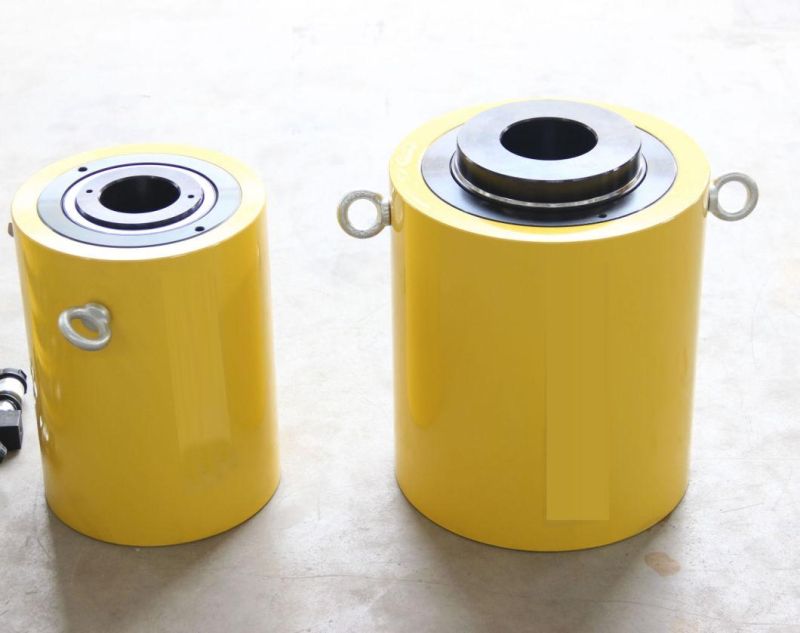

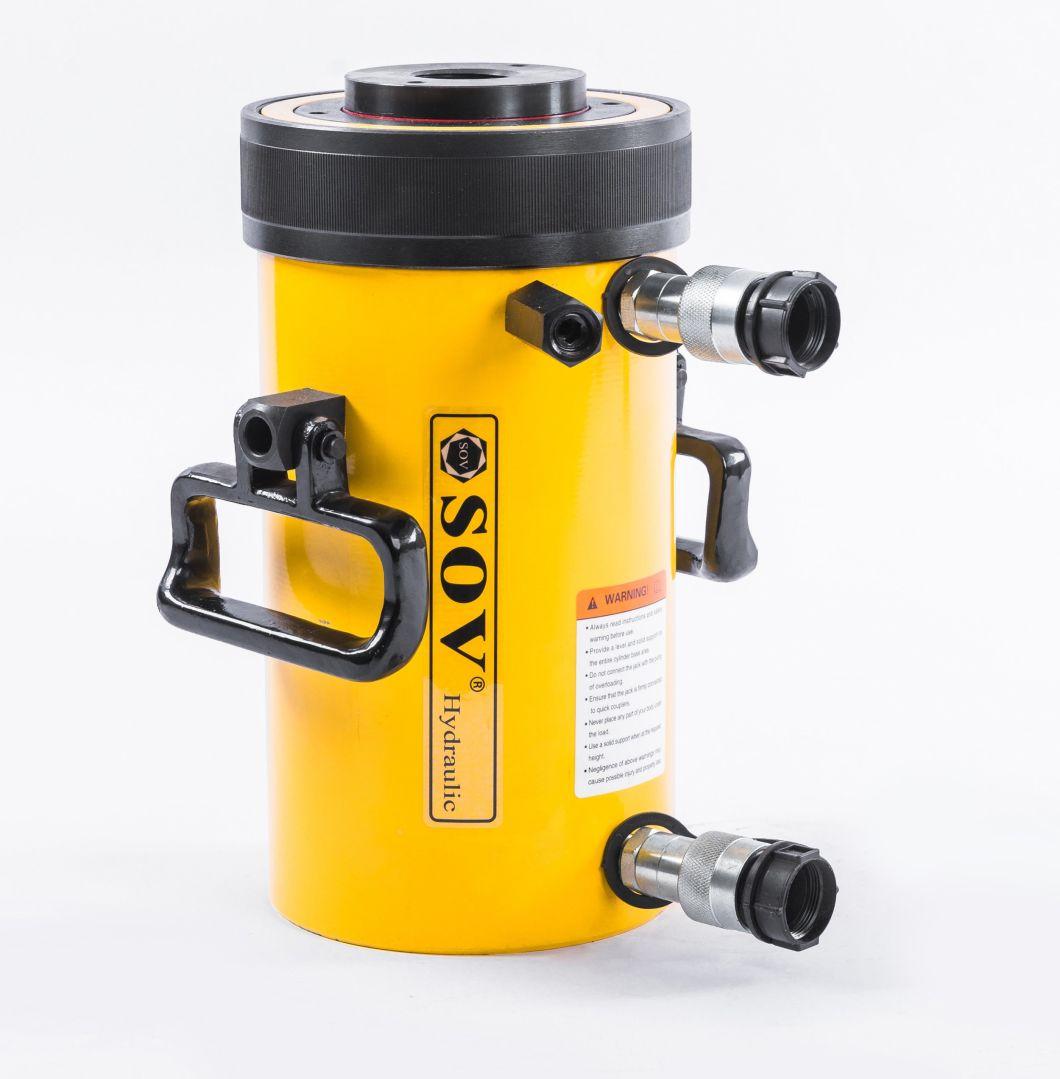

Photos

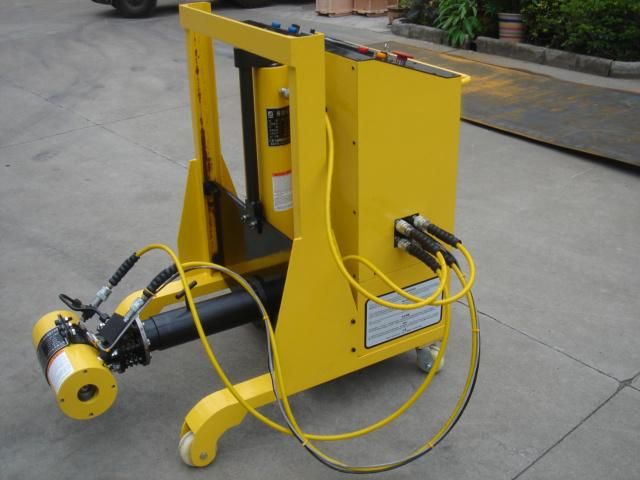

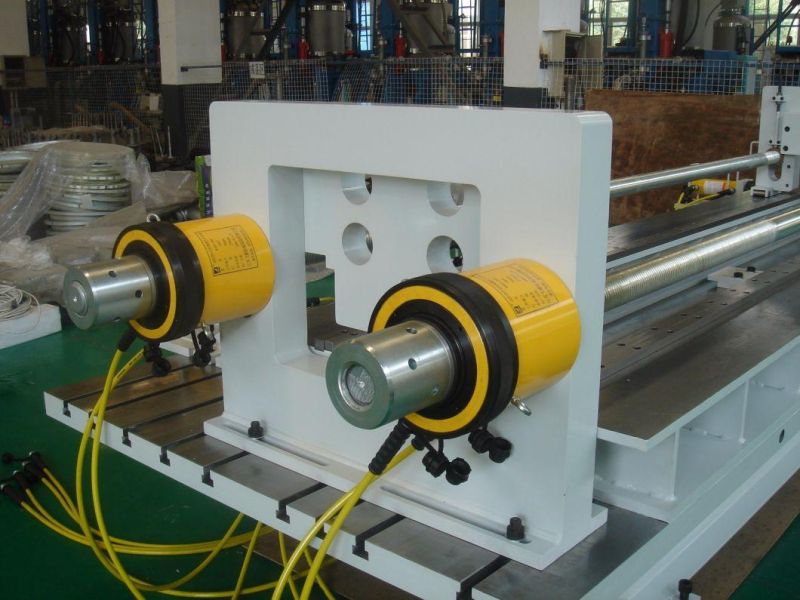

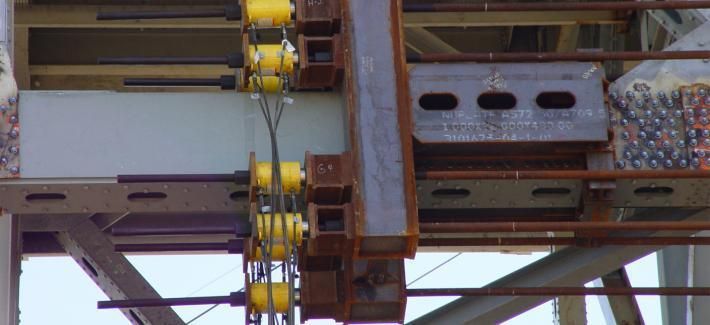

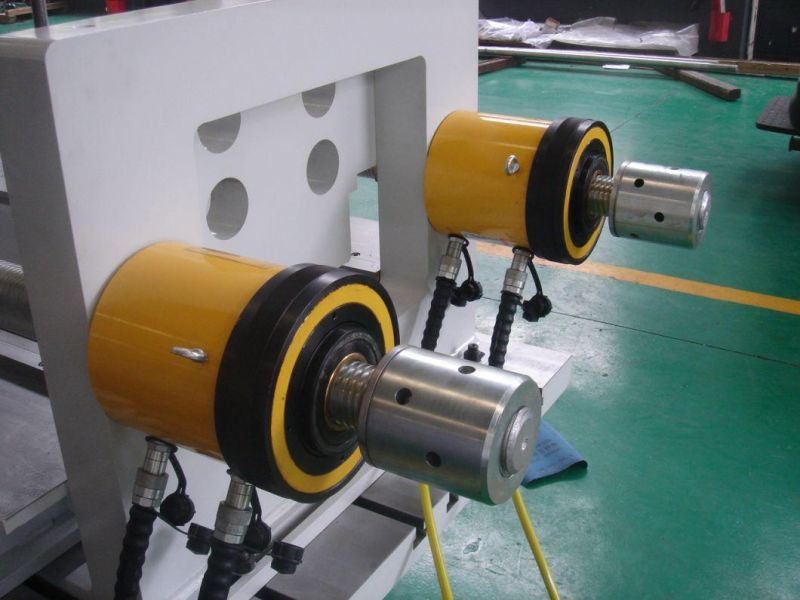

Applications
Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Stretch Film;
3. Customized packaging acceptable.
Delivery
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Our Service
1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

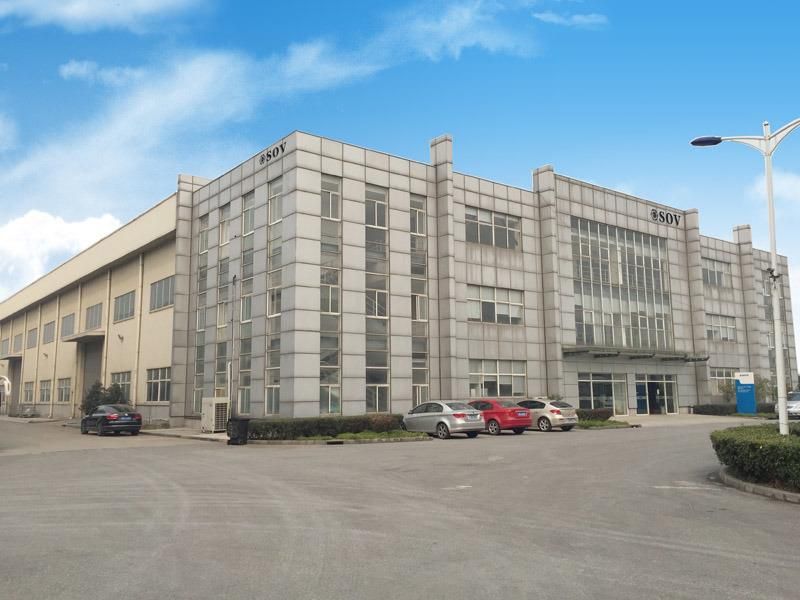

Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
Certificate
Contact Information:
Contact: Helen
Tel: 008618121376369
