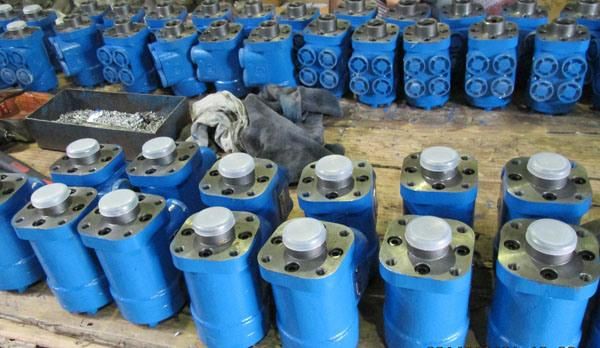

050 Small Displacement Series Hydraulic Power Steering Unit
Wuxi Hyphen Technology Co., Ltd.- Certification：CE, ISO9001
- Pressure：Medium Pressure
- Work Temperature：Normal Temperature
- Voltage：24V
- Installation：Horizontal
- Material：Cast Steel
Base Info
- Model NO.：050 Series (displacement:80,100,125,160,200,250,31
- Type：Hydraulic Power Units
- Transport Package：in Cartons
- Trademark：HYPHEN
- Origin：China
- HS Code：8412299090
Description
Basic Info.
Model NO. 050 Series (displacement:80/100/125/160/200/250/31 Type Hydraulic Power Units Transport Package in Cartons Trademark HYPHEN Origin China HS Code 8412299090Product Description
050 Series:Small displacement series
Include: Open center and load sensing style
Displacement: 50/63(ml/r)
050 series PSU is a small displacement PSU.
The displacement includes: 50.63ml/r. It is typical used in mini engineering vehicles, such as small tractor.
Features:
1. The optimum design of spool and sleeve gains better characteristics.
2. Special casting design for low pressure drop.
3. Basic system open center.
Main Specification Data:
Max. System pressure-16Mpa
Max. Back pressure-2.1MPa
Input torque-1.7~2.5Nm
Max. System operating temperature-93° C
Recommended oil filtration-ISO19/16
