Hydraulic One-Way Stable and Constant Valve 1wfl*-F
HEFEI CHANGYUAN HYDRAULIC CO., LTD.- Function:Flow Control
- Installation:Superposition
- Drive:Hydraulic
- Type:Directly Operated Type
- Nominal Pressure:200 Bar
- Nominal Size:15 mm
Base Info
- Model NO.:1WFL*-F
- Pressure Range of Port B:50~100 Bar
- Shunt Flow Volume:8,10,12,14,16 L,Min
- Shunt Flow Fluctuation:16%
- Weight:2.4 Kg
- Warranty:1 Year
- Certificate:ISO9001
- Color:Customized
- Application:Forklift, Tractor, Crane, Construction Machinery
- Transport Package:Packed in Exported Standard

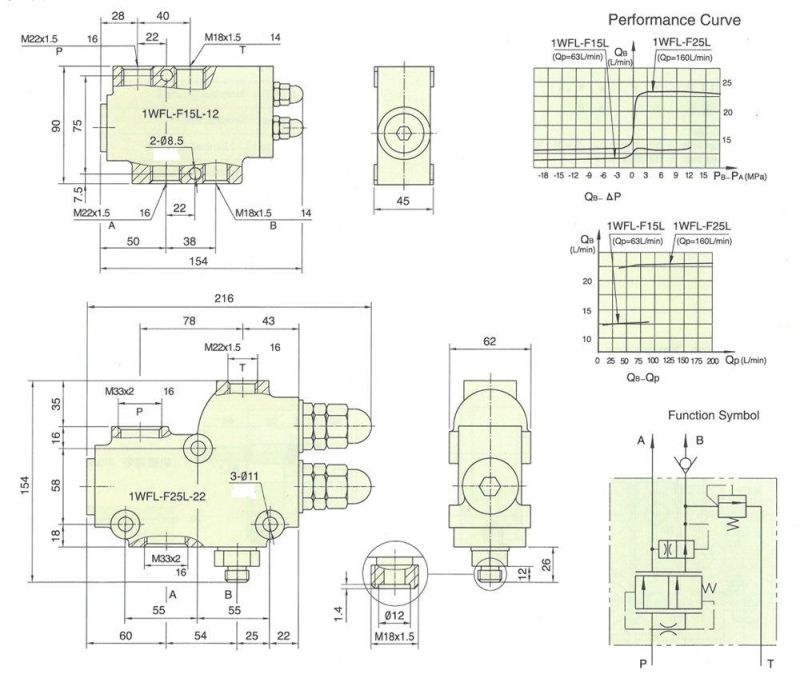

- Specification:as drawing
- Trademark:HCHC
- Origin:Anhui, China
- Production Capacity:5000 Sets Per Month
Description
Nominal Pressure
(bar)Nominal Size
(mm)Pressure range of port B
(bar)Shunt flow volume
(L/min)Shunt flow fluctuation
(≤%)Weight
(kg)2001550~1008,10,12,14,16162.4
